ELCO

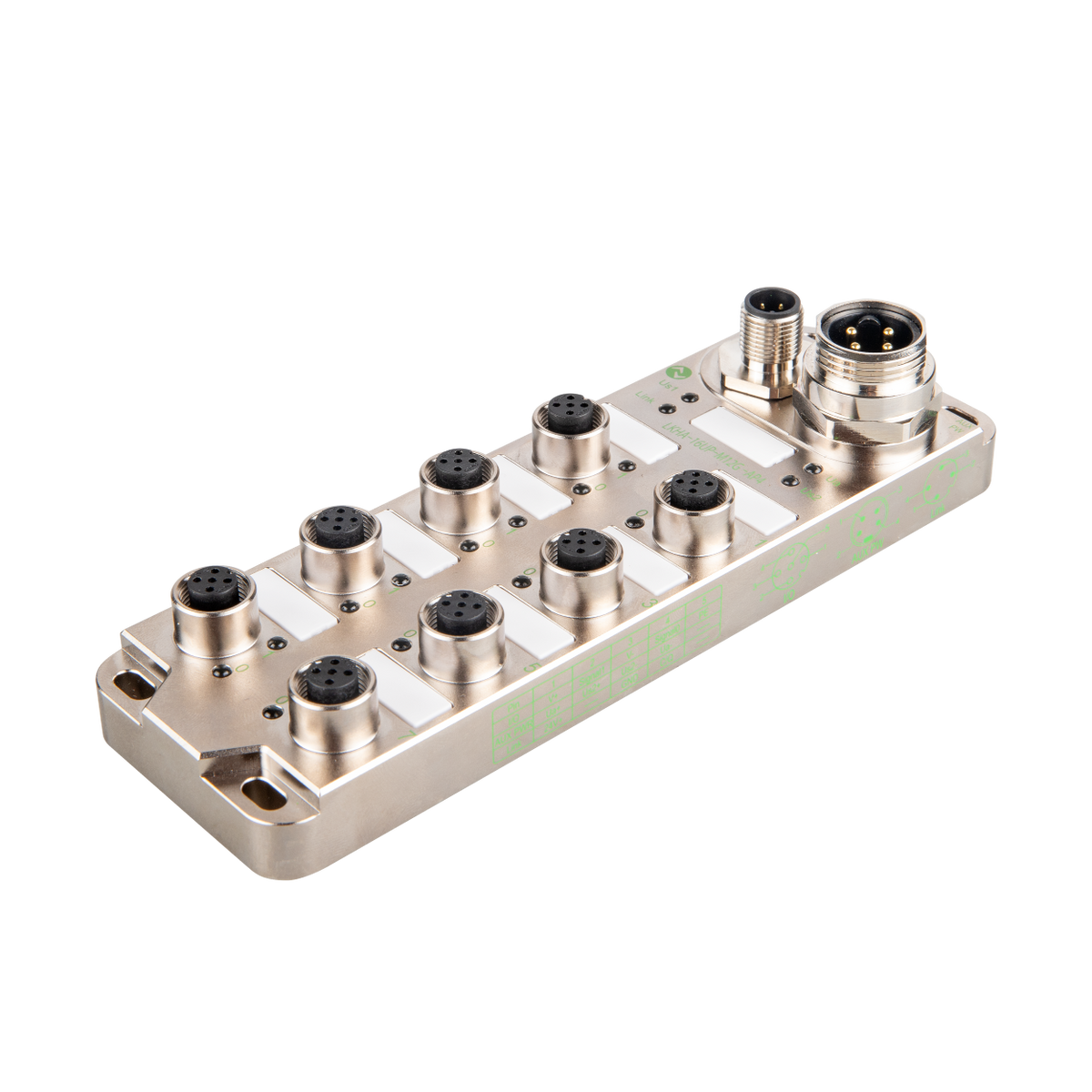

LKHA-16UP-M12G-AP4 IO-Link-IP67 HUB WITH AUX
$338.00
- Output type
- PNP
- Supply voltage
- 18 ... 30 V DC
- Communication protocol
- IO-Link
- IP rating
- IP67
Product information
Technical details
IO-Link Sensor Hub V1.1.3 Class A Base module with 1 xM12 4-pin connector for IO-Link interface and 7/8“ 4-pin connector for auxiliary power supply, 8xM12 5-pole connector, 24VDC, LED, 16DI/DO, PNP
Specifications
MPN LKHA-16UP-M12G-AP4
| Communication protocol | IO-Link |
|---|---|
| IP rating | IP67 |
| Housing material | Die-cast Zinc |
| Power connection | 1 x 7/8" 4-pin |
| Fieldbus connection | 1 x M12 A-Code |
| Power supply | 18 ... 30 V DC |
| Signal connection | 8 x M12 A-Code |
| Signal type | Digital I/O |
| Number of channels | 16 DI/DO |
| Input type | PNP |
| Output type | PNP |
| Storage temperature | -40 ... +85 °C |
| Certificate | CE, UL |
| Ambient temperature | -25 ... +70 °C |
| Dimensions | 55 x 170 x 33.4 mm |
