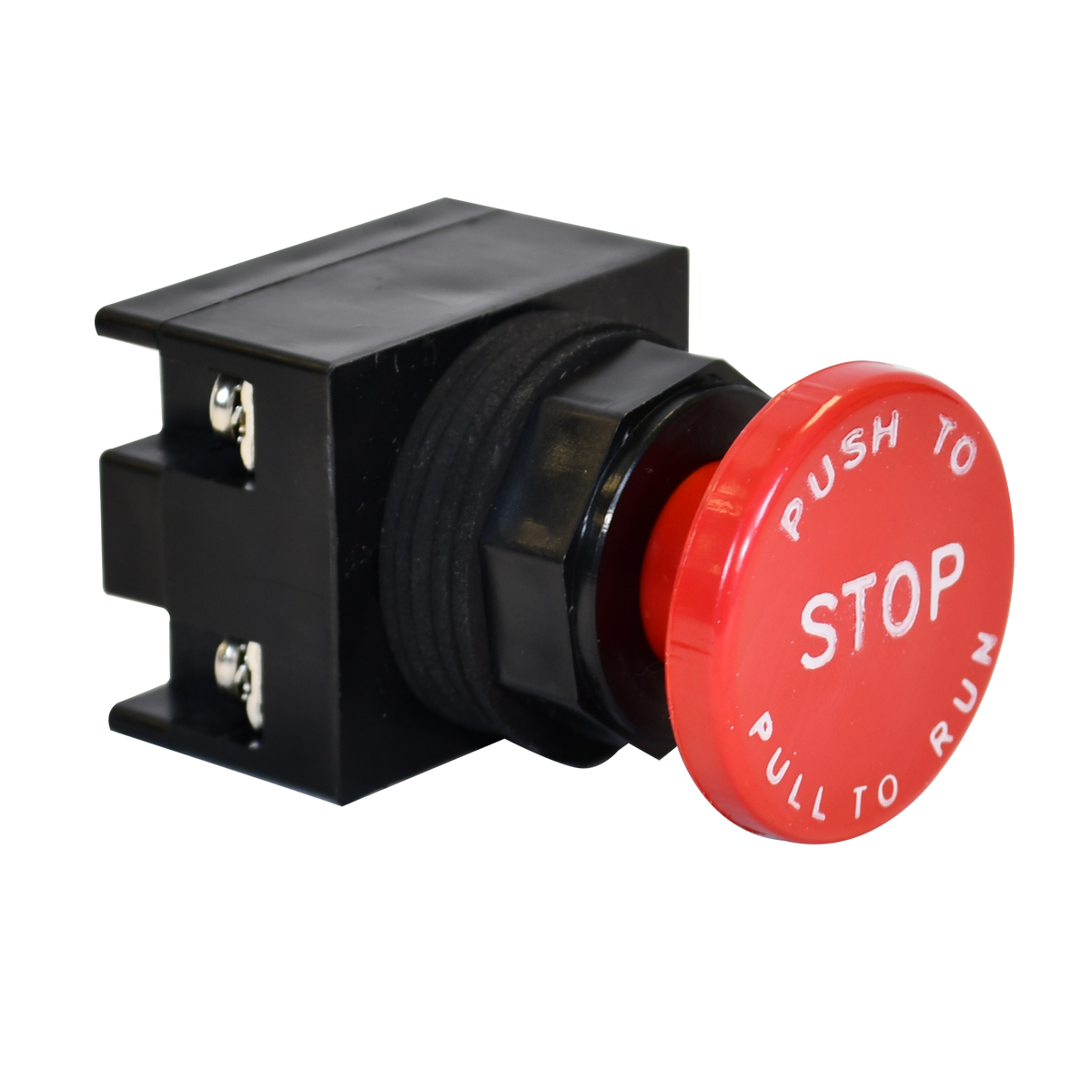

  • {'_type': 'localeString', 'en': '22mm NEMA E-Stop Push Button with cap markings', 'es': '22mm NEMA E-Stop Push Button with cap markings'}

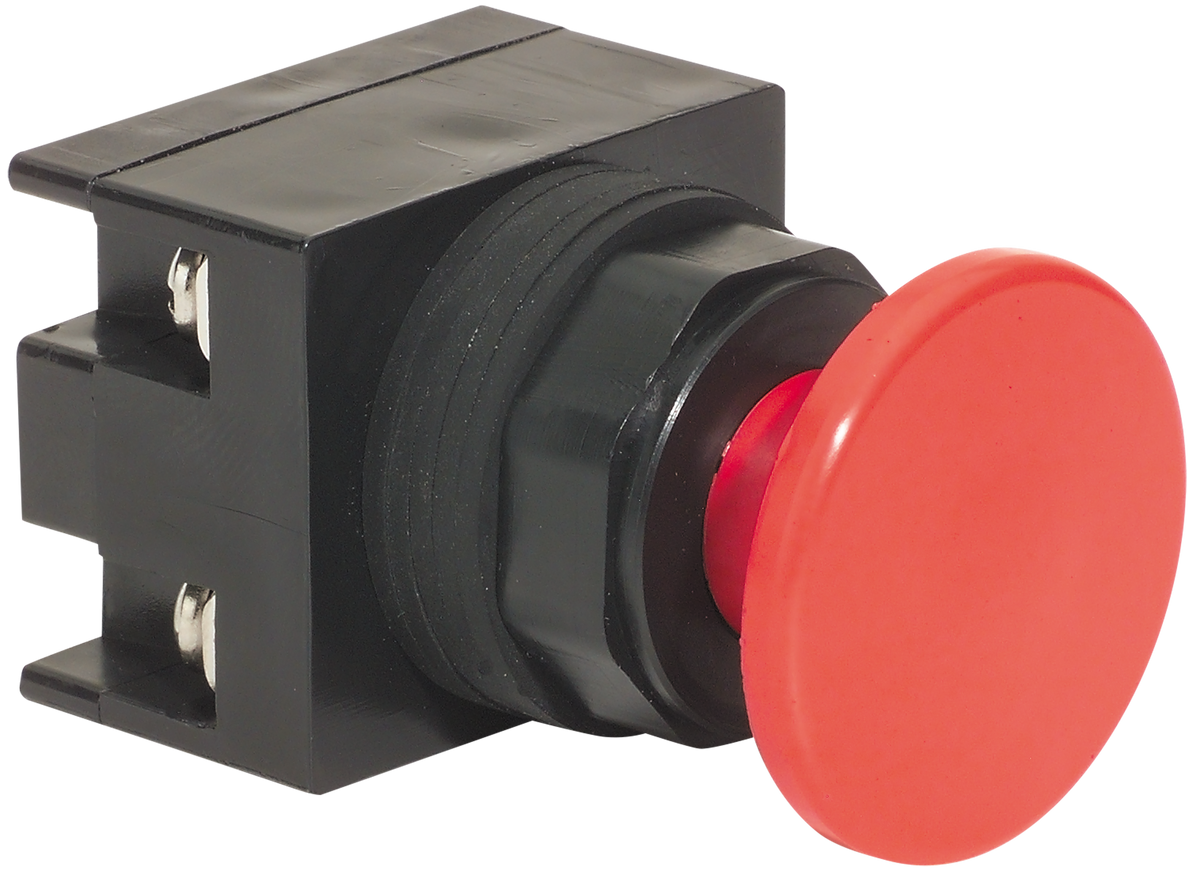

  • {'es': '22mm NEMA Maintained Non-Illuminated Push Button with Red Mushroom Cap', '_type': 'localeString', 'en': '22mm NEMA Maintained Non-Illuminated Push Button with Red Mushroom Cap'}

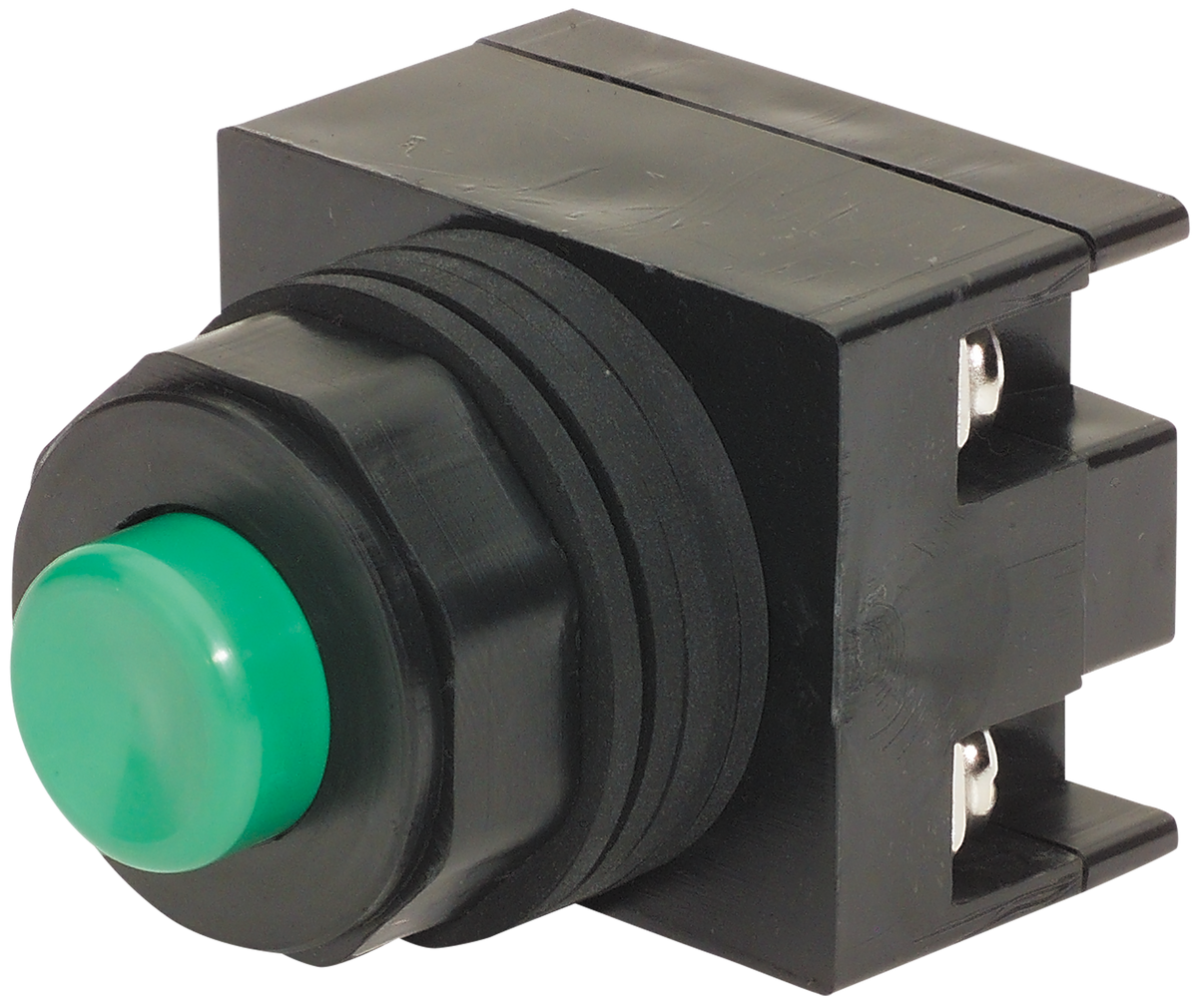

  • {'en': '22mm NEMA Momentary Non-Illuminated Push Button with Green Extended Cap', 'es': '22mm NEMA Momentary Non-Illuminated Push Button with Green Extended Cap', '_type': 'localeString'}

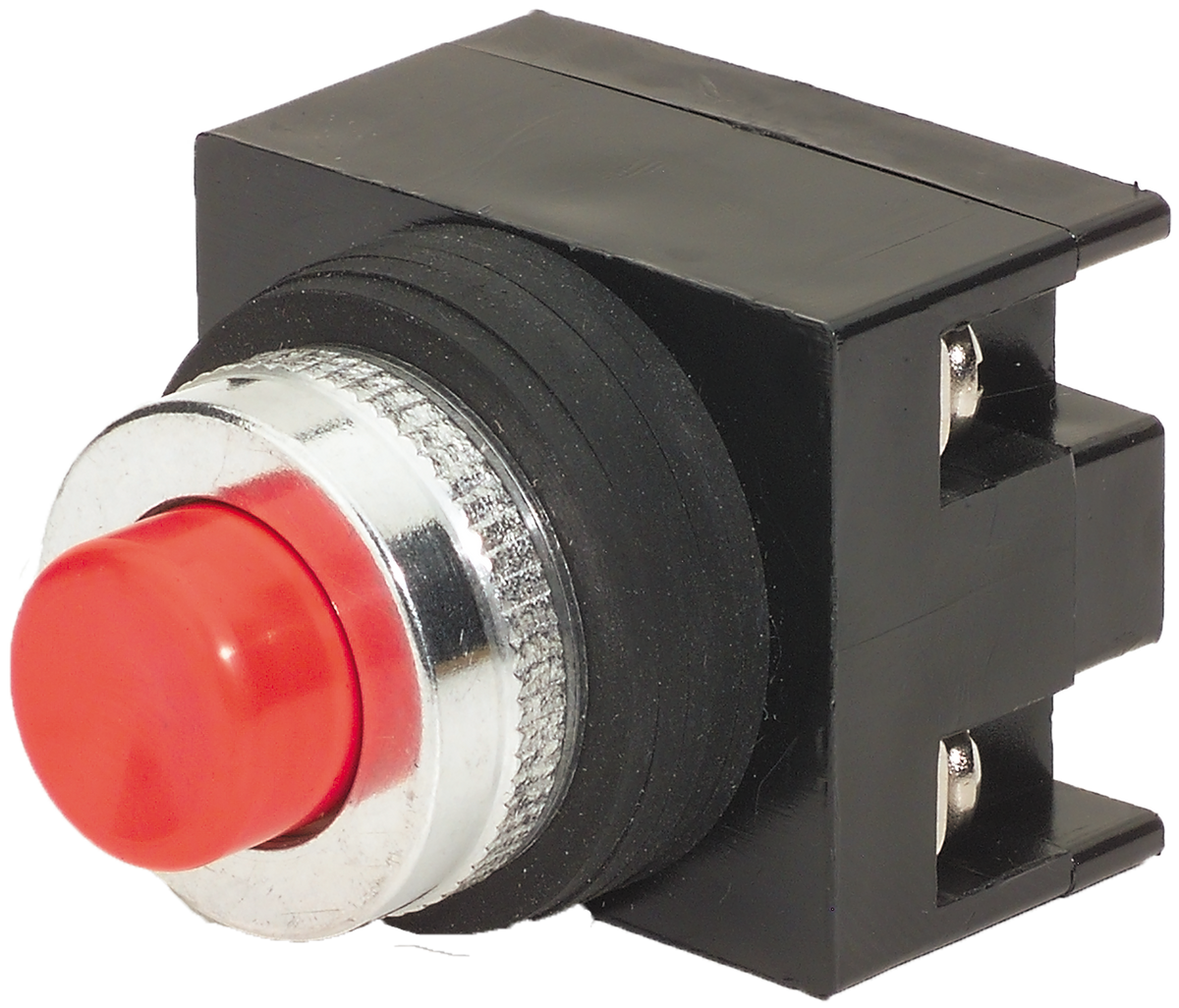

  • {'_type': 'localeString', 'en': '22mm NEMA Momentary Non-Illuminated Push Button with Red Extended Cap and Aluminum Clamp Ring ', 'es': '22mm NEMA Momentary Non-Illuminated Push Button with Red Extended Cap and Aluminum Clamp Ring '}

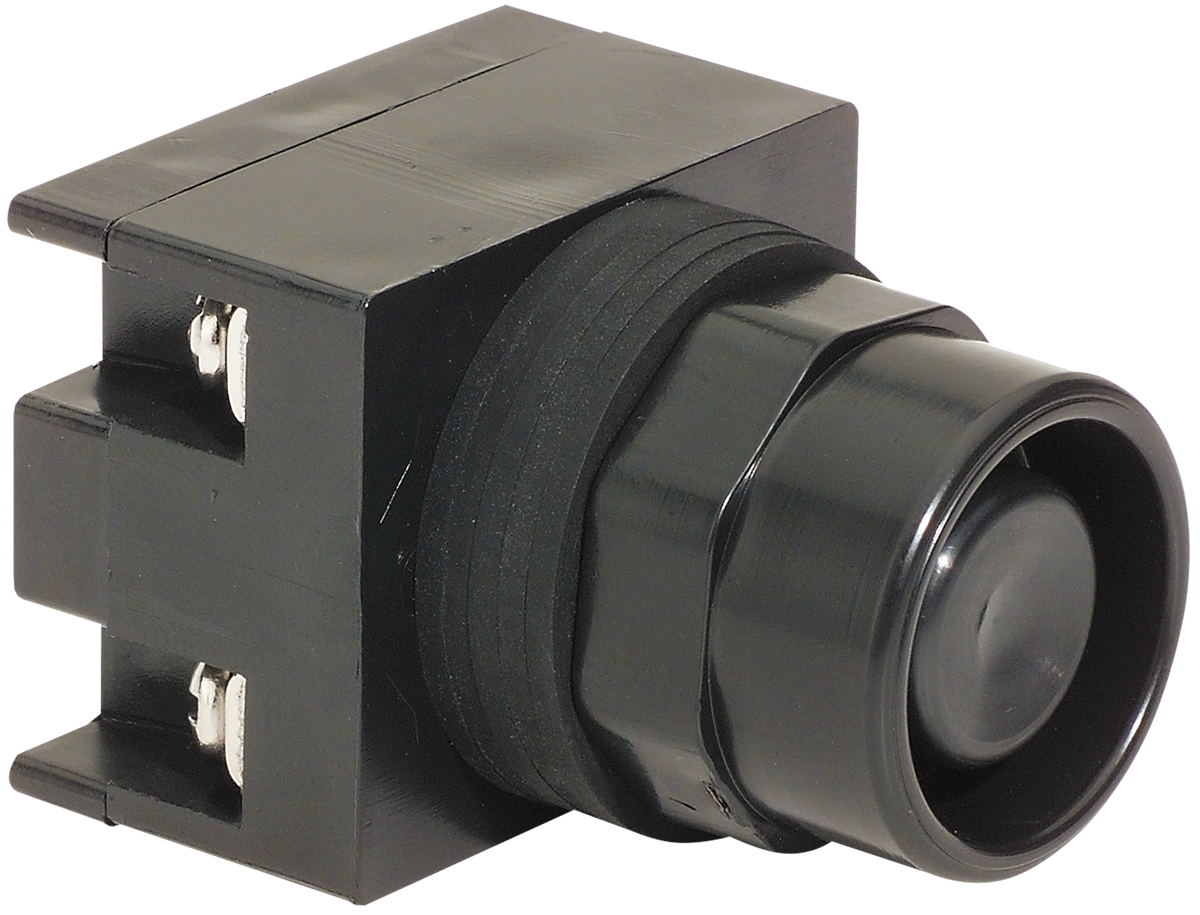

  • {'es': '22mm NEMA Momentary Non-Illuminated Push Button with Black Flush Cap', '_type': 'localeString', 'en': '22mm NEMA Momentary Non-Illuminated Push Button with Black Flush Cap'}

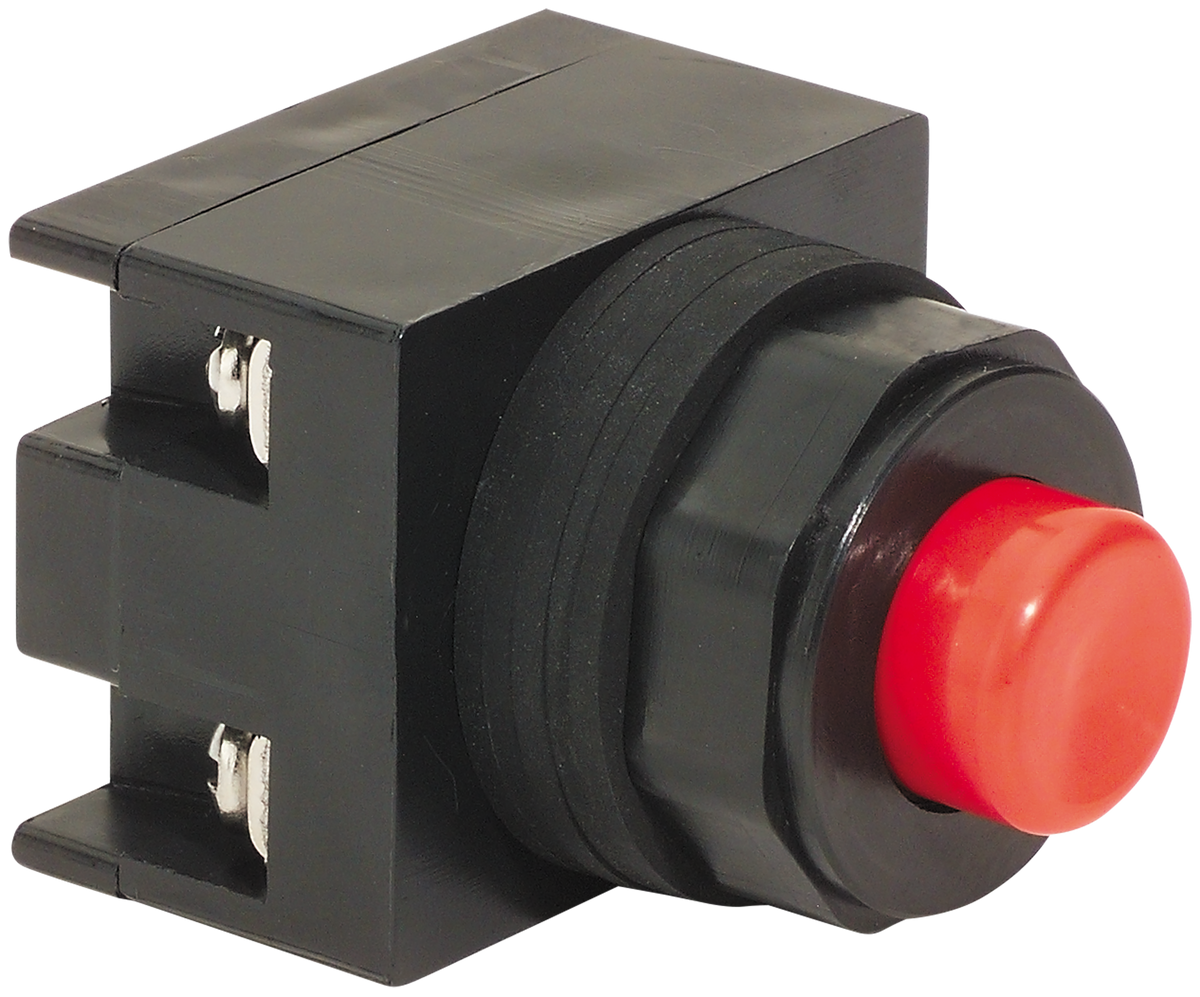

  • {'_type': 'localeString', 'en': '22mm NEMA Momentary Non-Illuminated Push Button with Red Extended Cap', 'es': '22mm NEMA Momentary Non-Illuminated Push Button with Red Extended Cap'}

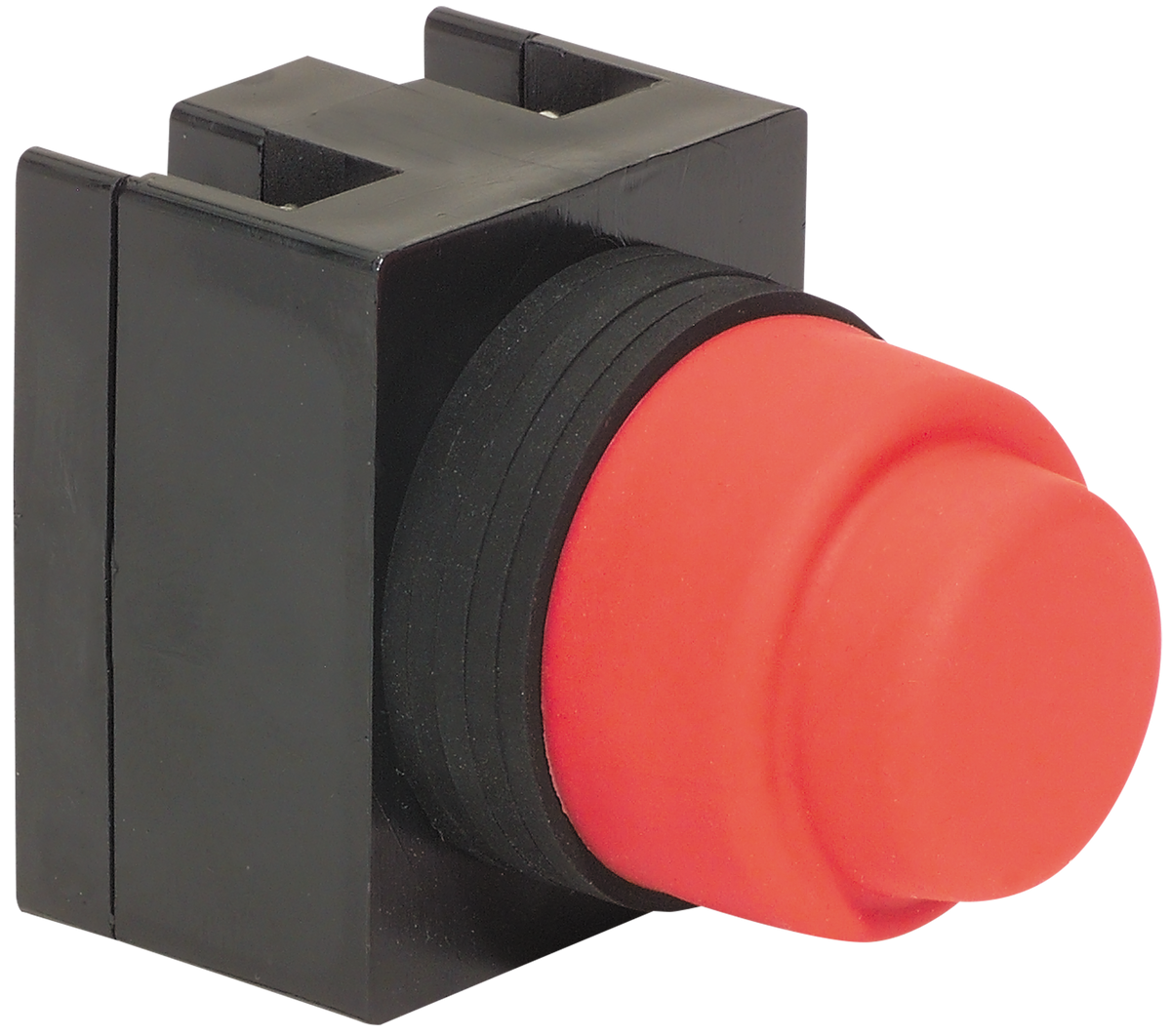

  • {'_type': 'localeString', 'en': '22mm NEMA Momentary Non-Illuminated Push Button with Red Neoprene Rubber Boot', 'es': '22mm NEMA Momentary Non-Illuminated Push Button with Red Neoprene Rubber Boot'}

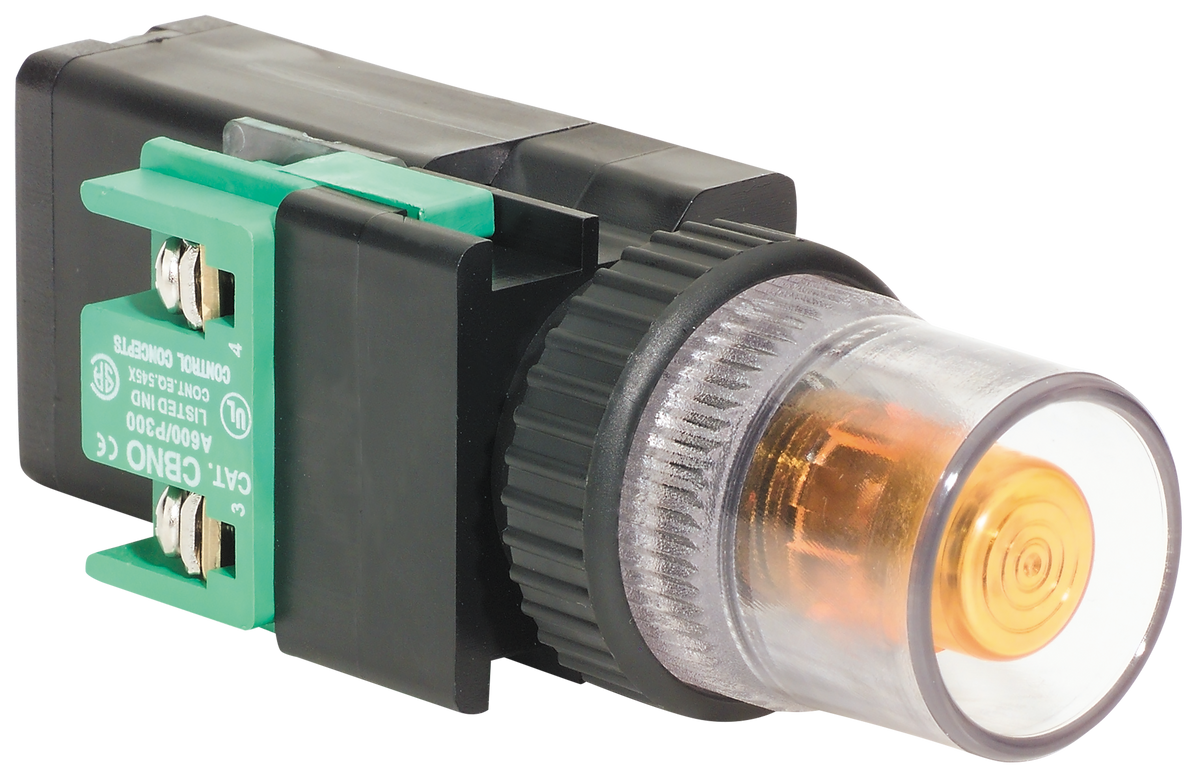

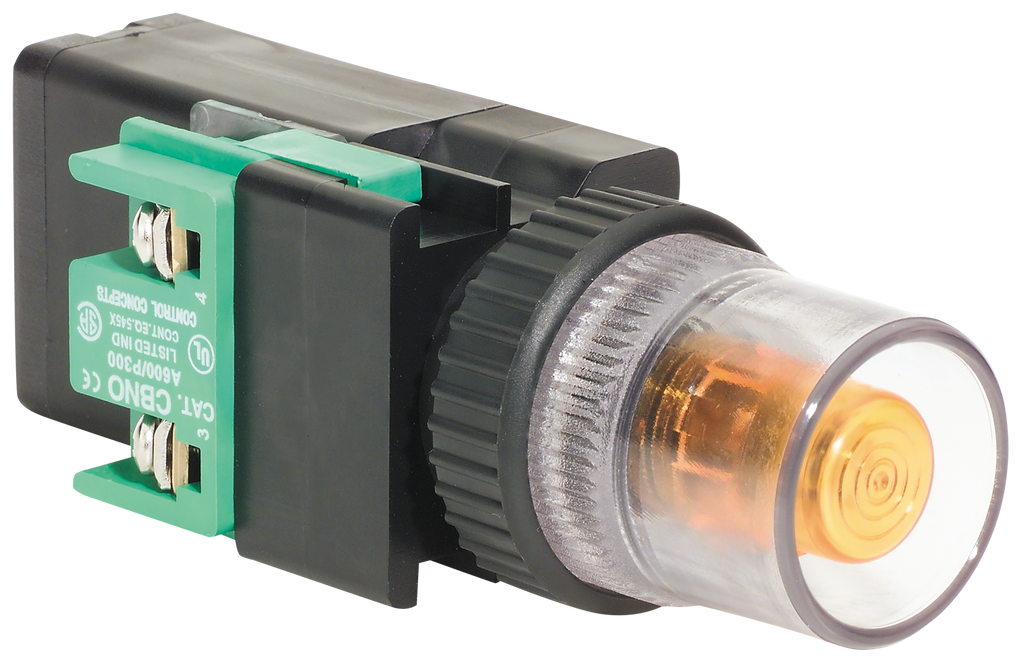

  • {'es': '22mm NEMA Momentary Illuminated Push Button with Amber Flush Guarded Lens', '_type': 'localeString', 'en': '22mm NEMA Momentary Illuminated Push Button with Amber Flush Guarded Lens'}

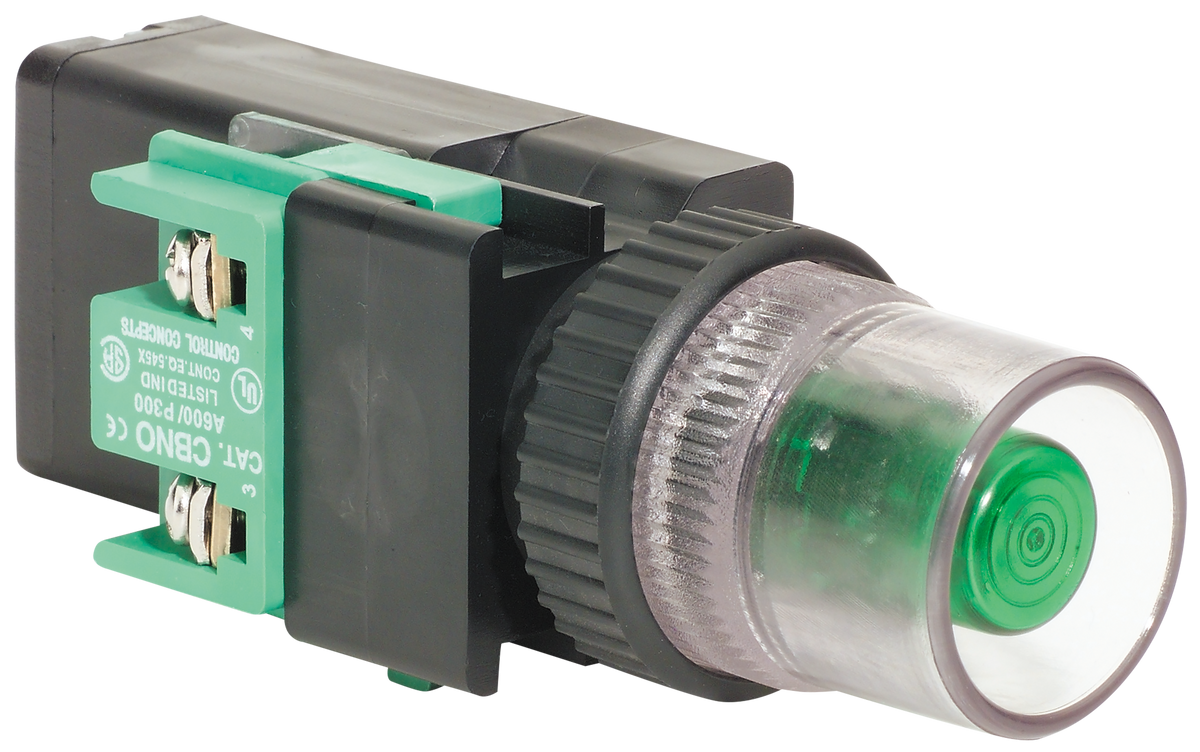

  • {'_type': 'localeString', 'en': '22mm NEMA Momentary Illuminated Push Button with Green Flush Guarded Lens', 'es': '22mm NEMA Momentary Illuminated Push Button with Green Flush Guarded Lens'}

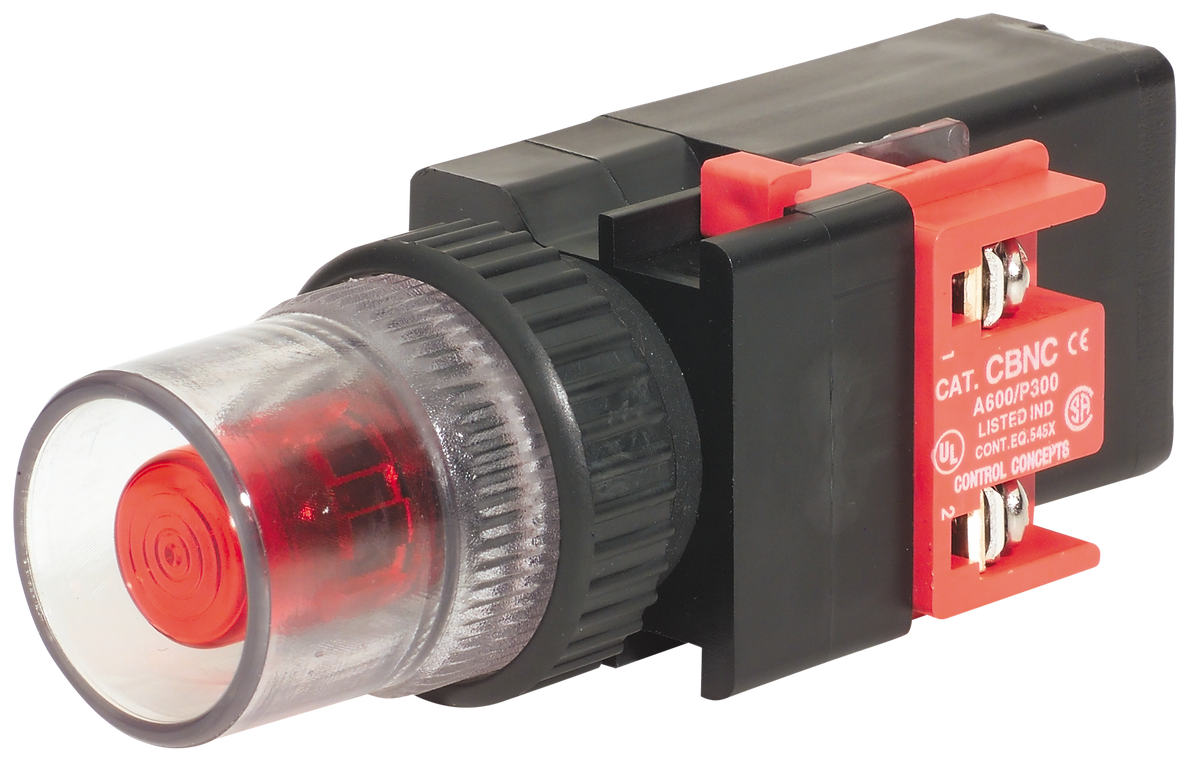

  • {'en': '22mm NEMA Momentary Illuminated Push Button with Red Flush Guarded Lens', 'es': '22mm NEMA Momentary Illuminated Push Button with Red Flush Guarded Lens', '_type': 'localeString'}

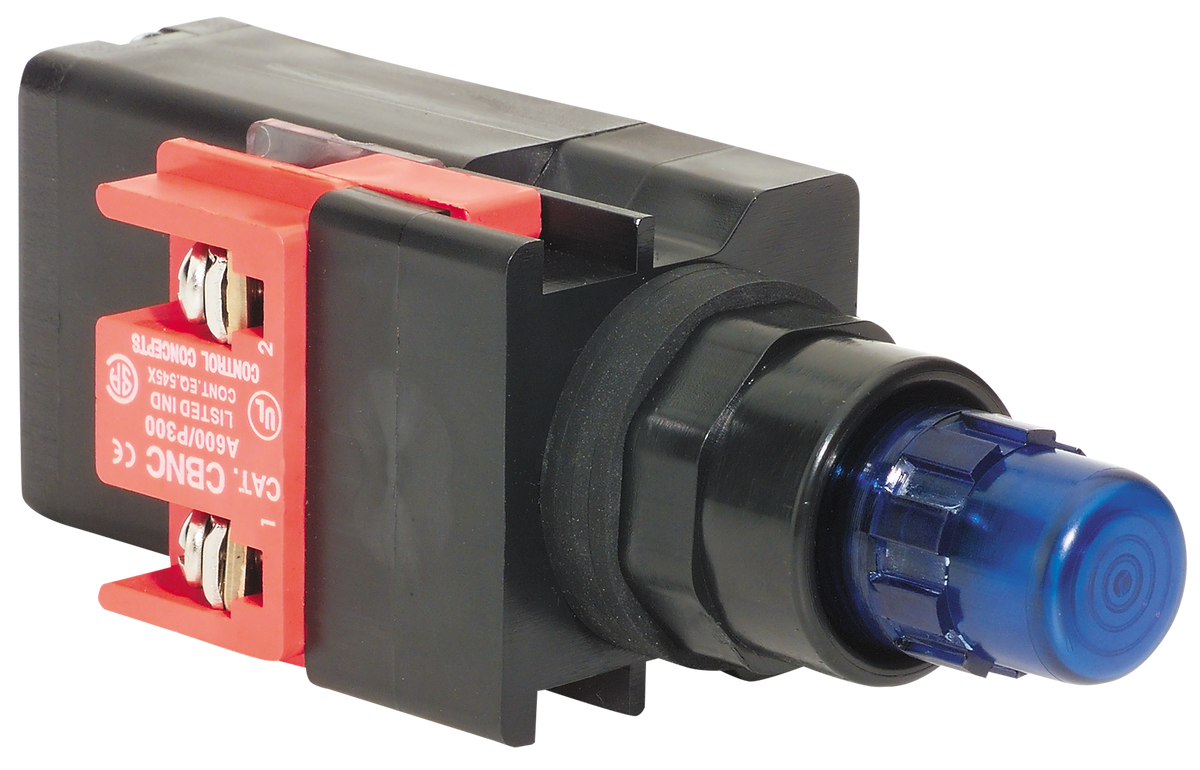

  • {'en': '22mm NEMA Momentary Illuminated Push Button with Blue Extended Lens', 'es': '22mm NEMA Momentary Illuminated Push Button with Blue Extended Lens', '_type': 'localeString'}

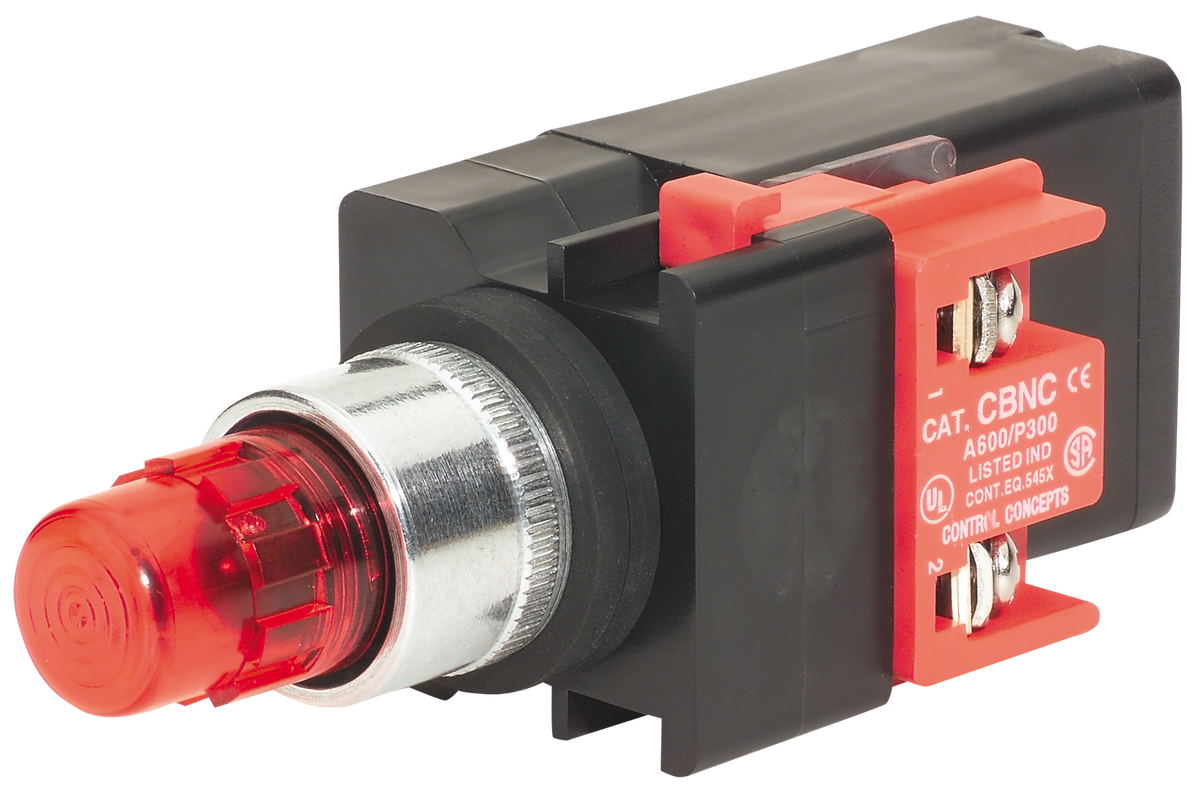

  • {'en': '22mm NEMA Momentary Illuminated Push Button with Red Extended Lens and Aluminum Clamp Ring', 'es': '22mm NEMA Momentary Illuminated Push Button with Red Extended Lens and Aluminum Clamp Ring', '_type': 'localeString'}

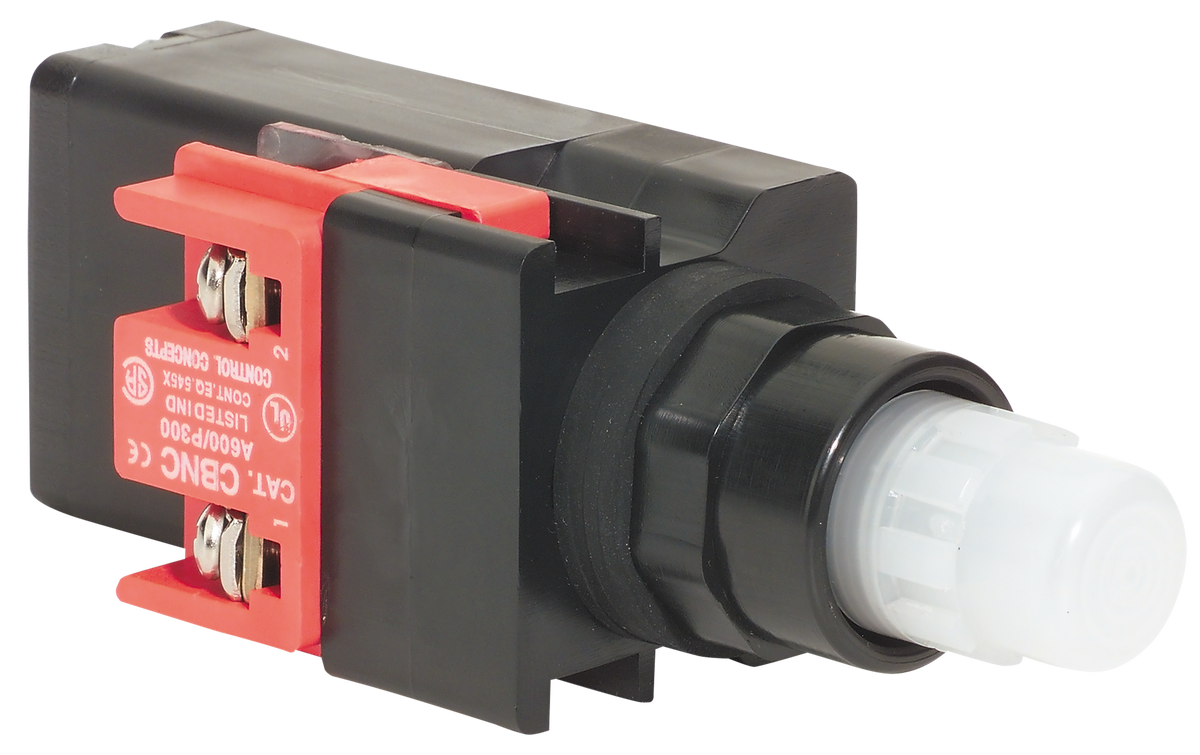

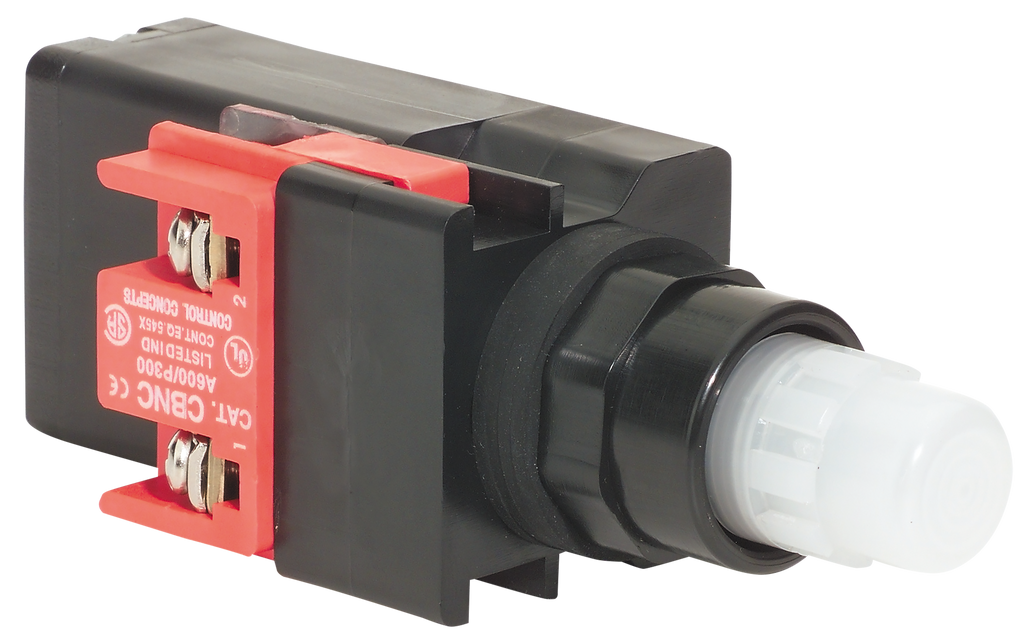

  • {'es': '22mm NEMA Momentary Illuminated Push Button with White Extended Lens', '_type': 'localeString', 'en': '22mm NEMA Momentary Illuminated Push Button with White Extended Lens'}
22mm NEMA Push Buttons

C3 Controls

22mm NEMA Push Buttons

Loading configuration options…
Download CAD package

Product Details

Available in momentary and maintained

Full voltage light units in a range of voltages

LED lamps with leakage protection

LED voltage tolerance is +/- 10%

Up to 3 contact blocks deep with 2 circuits each may be added for a total of 8 contacts per operator

Our E-Stop button with permanent cap markings is compliant with ASME A17.1

Top 5 Best Sellers

2-Pos., Push-Pull, NO-NC, Mush Red p/n: 22PPNONC-XPMRD

2-Pos., Push-Pull, 2NC, Mush Red p/n: 22PP2NC-XPMRD

2-Pos., Push-Pull, NC, Mush Red p/n: 22PPNC-XPMRD

FV, 120VAC/VDC, Red LED, Ext. Lens Red, NO p/n: 22IPBF120LR-XIXCRD-NO

Flush Black, NO p/n: 22PBNO-XFBK

  • Mounting Diameter: 22mm
  • Operator/Switch Size: 22mm
  • Make Rating: 7200VA(AC)/138VA(DC)
  • Break Rating: 720VA(AC)/138VA(DC)
  • Ith-Thermal Current: 10A(AC)/5A(DC)
  • Device Rating: NEMA
  • NEMA Rating: Type 1,2,3,3R,4/4X,12,13
  • IP Rating: IP20
  • IP Rating: IP65

Downloads

Installation instructions

CAD drawings

Certifications

Catalogs and guides

More resources

Product information

Technical details

Available in momentary and maintained

Full voltage light units in a range of voltages

LED lamps with leakage protection

LED voltage tolerance is +/- 10%

Up to 3 contact blocks deep with 2 circuits each may be added for a total of 8 contacts per operator

Our E-Stop button with permanent cap markings is compliant with ASME A17.1

Top 5 Best Sellers

2-Pos., Push-Pull, NO-NC, Mush Red p/n: 22PPNONC-XPMRD

2-Pos., Push-Pull, 2NC, Mush Red p/n: 22PP2NC-XPMRD

2-Pos., Push-Pull, NC, Mush Red p/n: 22PPNC-XPMRD

FV, 120VAC/VDC, Red LED, Ext. Lens Red, NO p/n: 22IPBF120LR-XIXCRD-NO

Flush Black, NO p/n: 22PBNO-XFBK

  • Mounting Diameter: 22mm
  • Operator/Switch Size: 22mm
  • Make Rating: 7200VA(AC)/138VA(DC)
  • Break Rating: 720VA(AC)/138VA(DC)
  • Ith-Thermal Current: 10A(AC)/5A(DC)
  • Device Rating: NEMA
  • NEMA Rating: Type 1,2,3,3R,4/4X,12,13
  • IP Rating: IP20
  • IP Rating: IP65
