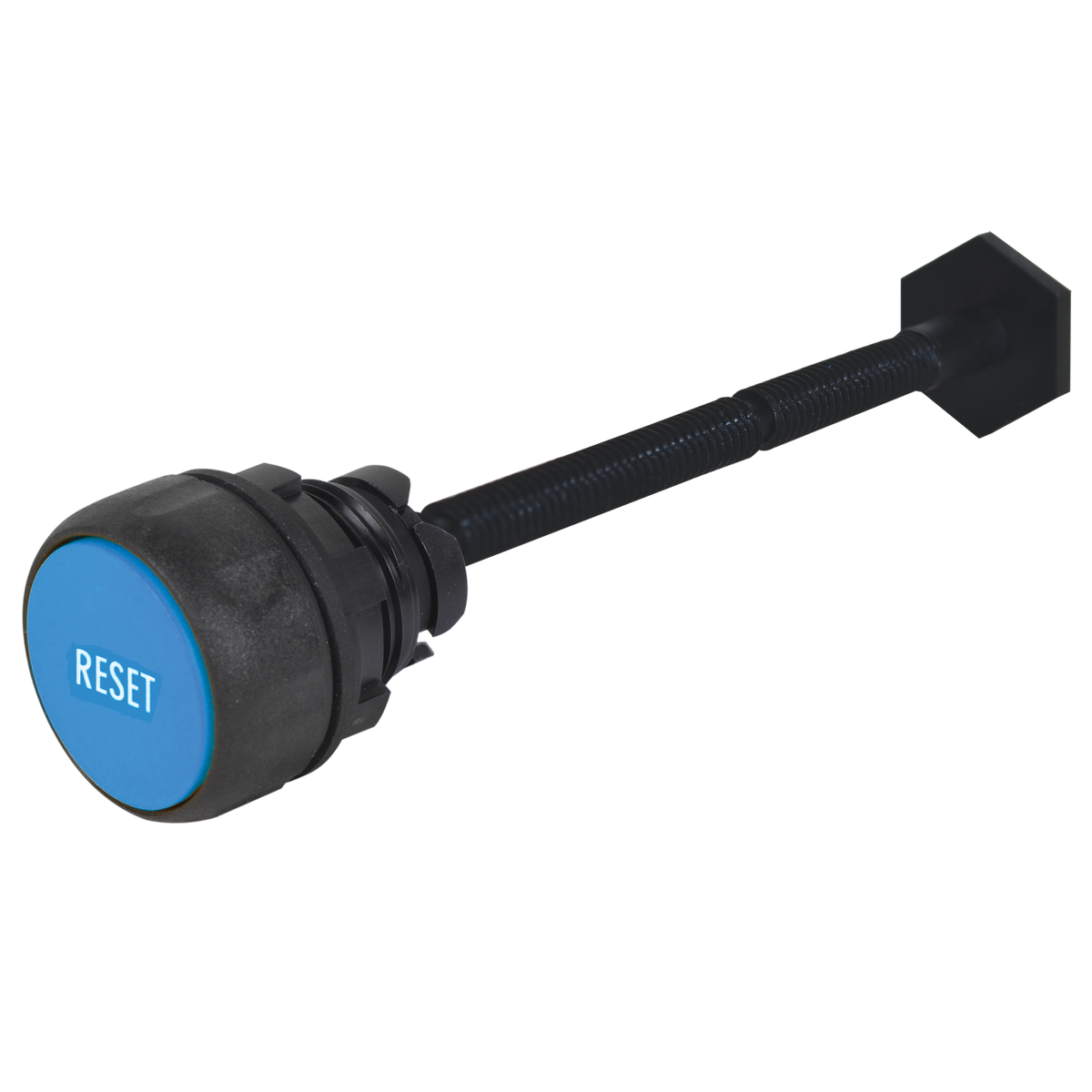

  • {'es': '22mm IEC Reset Push Button with Blue Flush Cap and Plastic Rod', '_type': 'localeString', 'en': '22mm IEC Reset Push Button with Blue Flush Cap and Plastic Rod'}

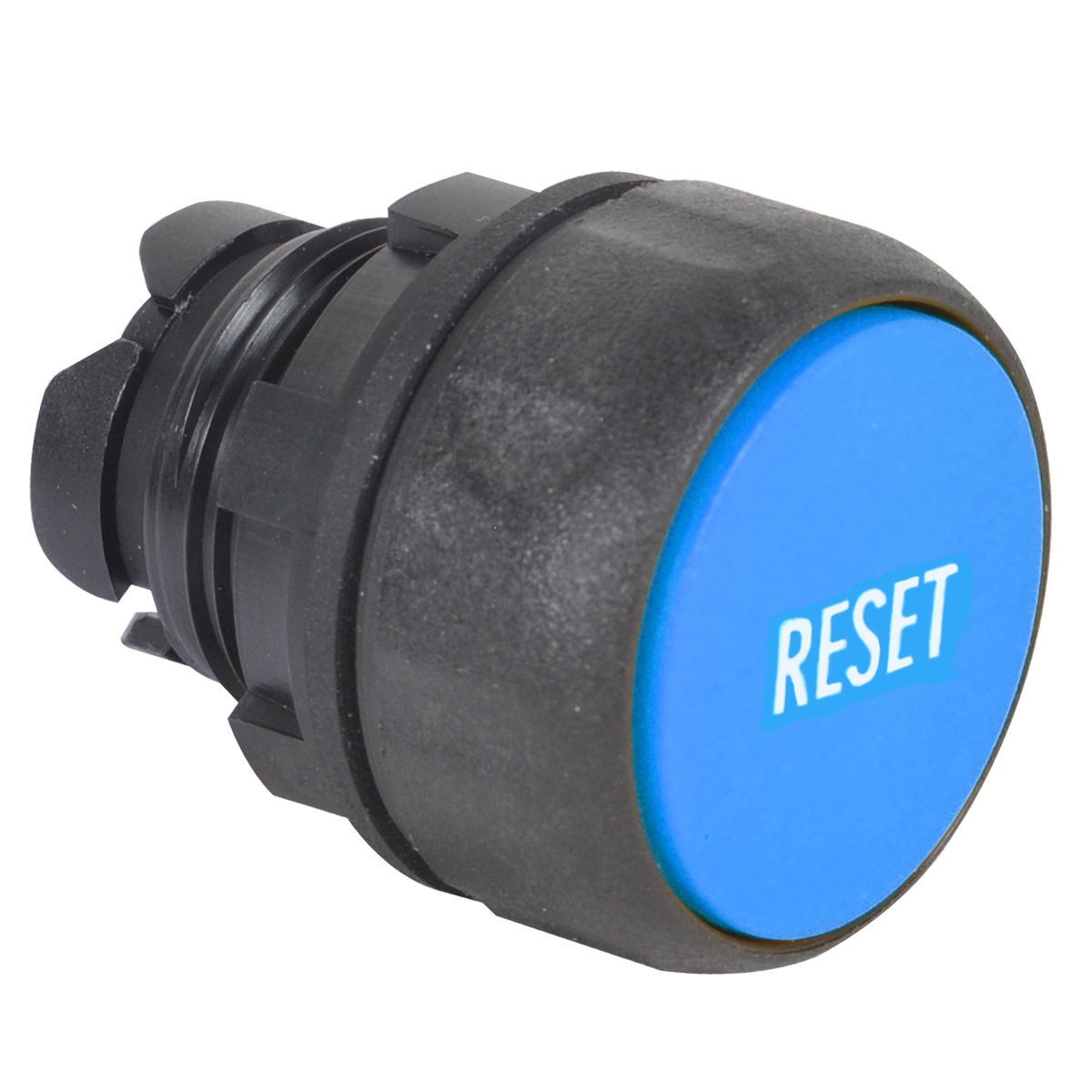

  • {'en': '22mm IEC Reset Push Button with Blue Flush Cap', 'es': '22mm IEC Reset Push Button with Blue Flush Cap', '_type': 'localeString'}

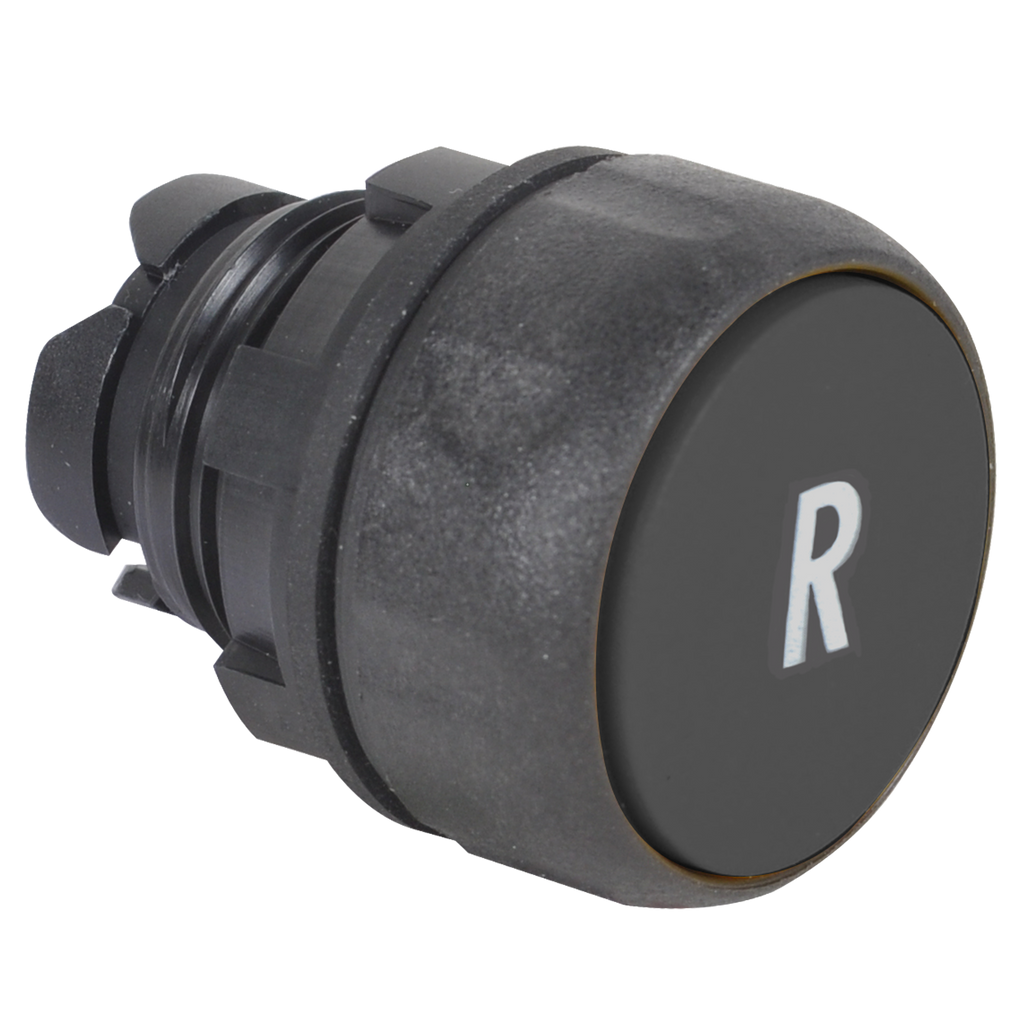

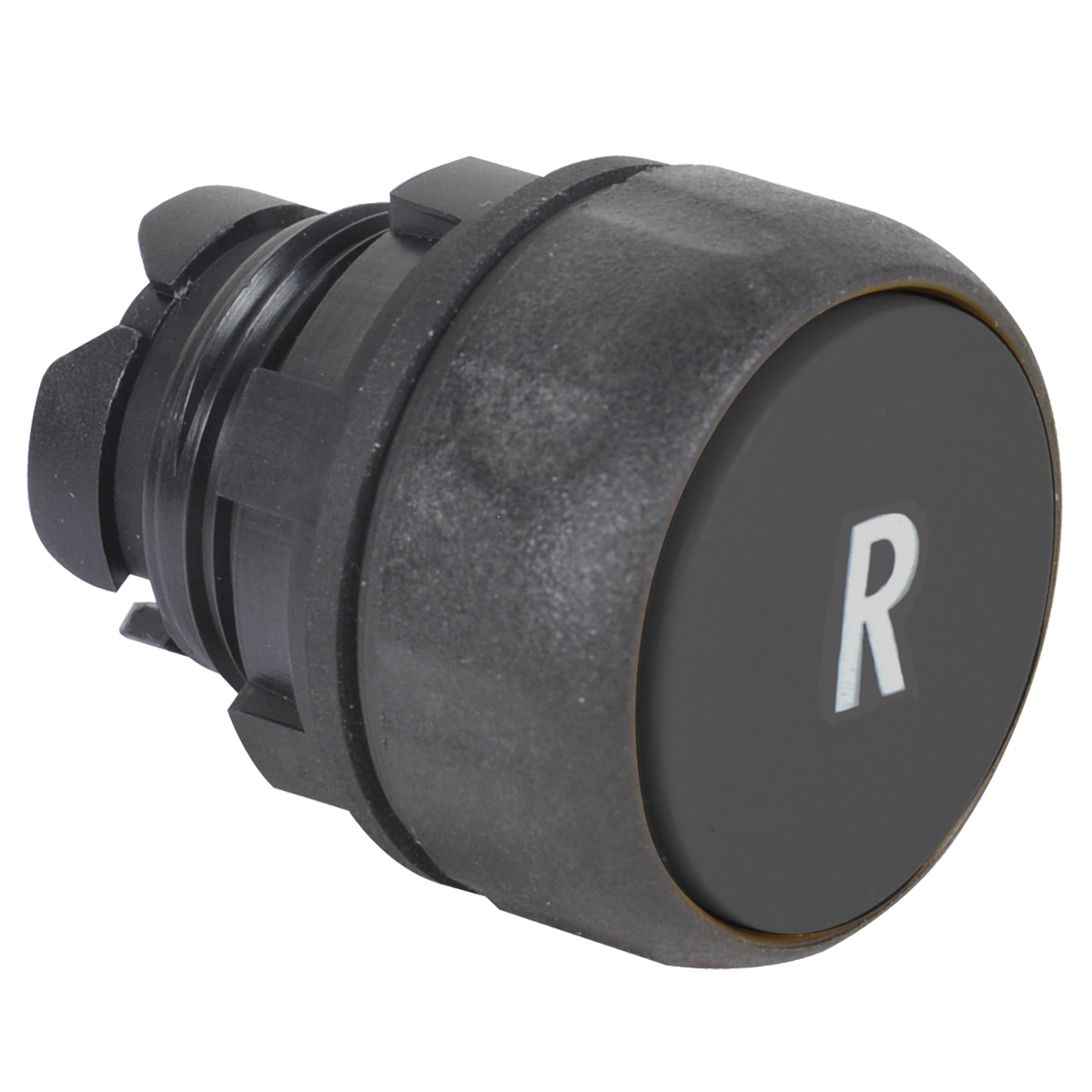

  • {'es': '22mm IEC Reset Push Button with Black Flush Cap', '_type': 'localeString', 'en': '22mm IEC Reset Push Button with Black Flush Cap'}

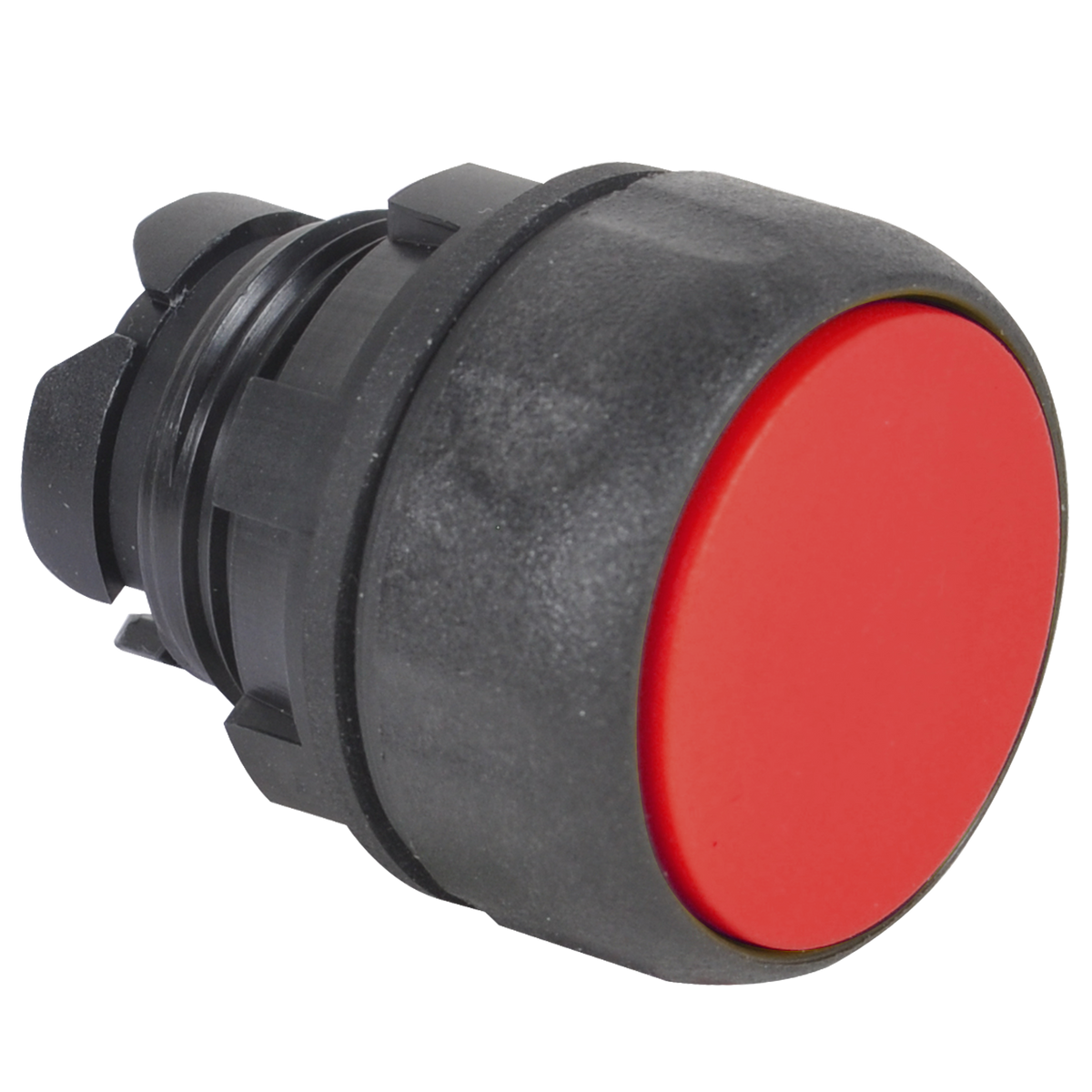

  • {'_type': 'localeString', 'en': '22mm IEC Reset Push Button with Red Flush Cap', 'es': '22mm IEC Reset Push Button with Red Flush Cap'}
22mm IEC Reset Push Buttons

C3 Controls

22mm IEC Reset Push Buttons

Loading configuration options…
Download CAD package

Product Details

Flush caps in a variety of colors and cap markings.

Designed to actuate the reset function of a Series 320 Overload Relay from outside of the enclosure.

For use in an enclosure up to 254mm (10-in.) deep when used with our Series 320 Overload Relays.

The rod can be easily cut to the desired length for use in a wide range of enclosure depths.

  • Mounting Diameter: 22mm
  • Operator/Switch Size: 22mm
  • Device Rating: IEC
  • IP Rating: IP66
  • NEMA Rating: Type 1,2,3,3R,4/4X,12,13

Downloads

Installation instructions

CAD drawings

Certifications

Catalogs and guides

More resources

Product information

Technical details

Flush caps in a variety of colors and cap markings.

Designed to actuate the reset function of a Series 320 Overload Relay from outside of the enclosure.

For use in an enclosure up to 254mm (10-in.) deep when used with our Series 320 Overload Relays.

The rod can be easily cut to the desired length for use in a wide range of enclosure depths.

  • Mounting Diameter: 22mm
  • Operator/Switch Size: 22mm
  • Device Rating: IEC
  • IP Rating: IP66
  • NEMA Rating: Type 1,2,3,3R,4/4X,12,13
