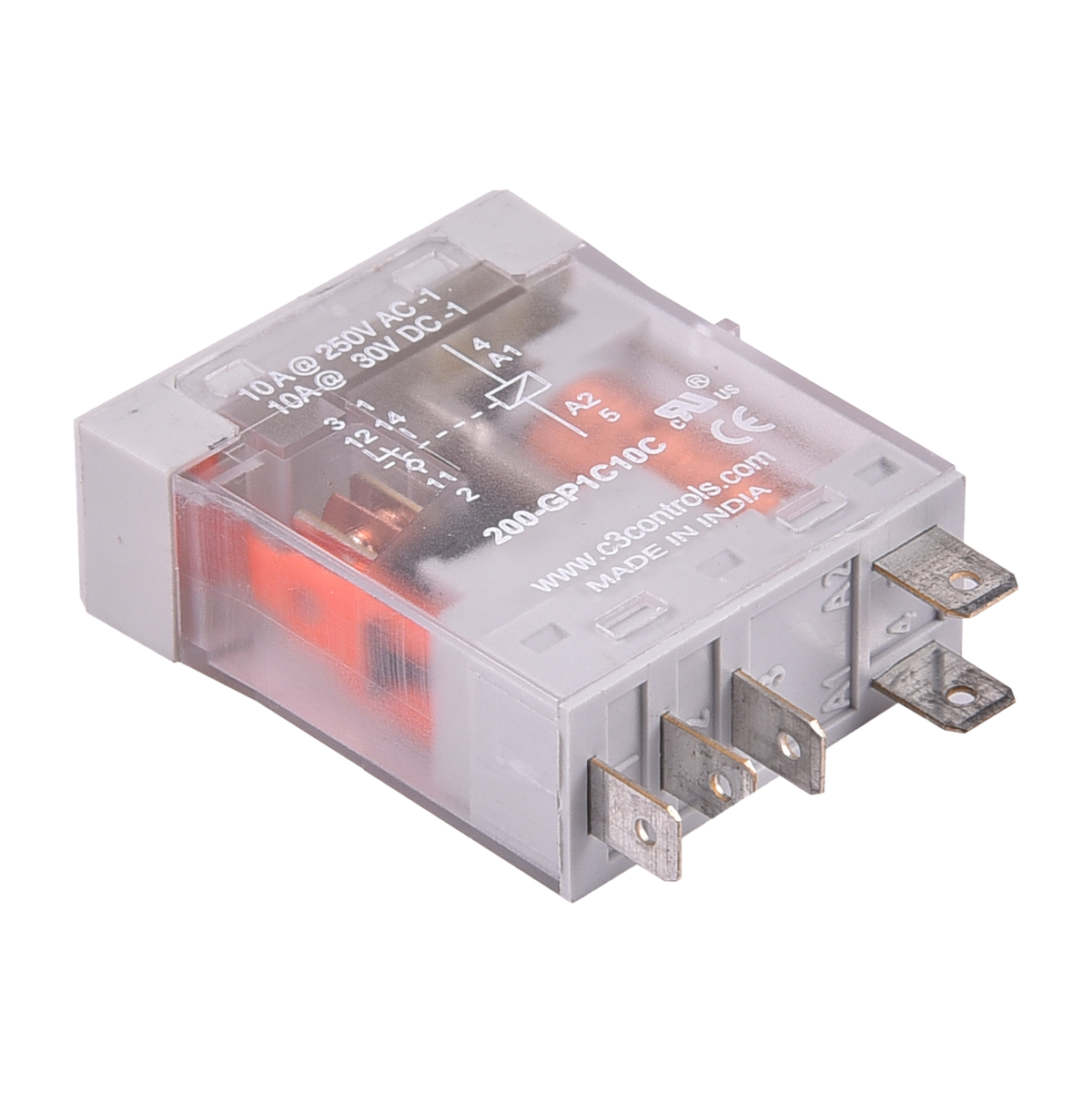

  • {'es': 'General Purpose Relay, Series 200, 1 Pole, Square Base', '_type': 'localeString', 'en': 'General Purpose Relay, Series 200, 1 Pole, Square Base'}

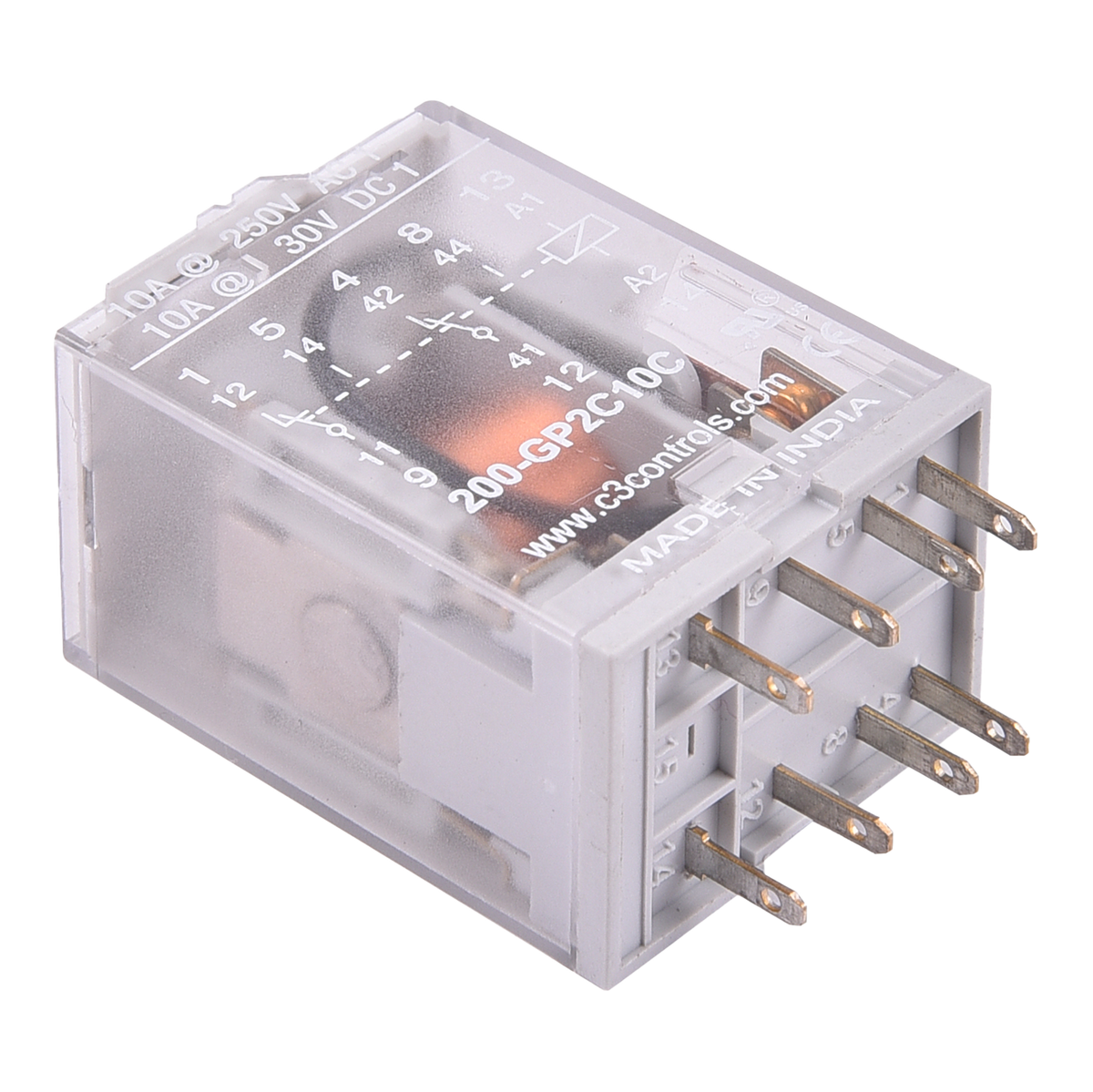

  • {'_type': 'localeString', 'en': 'General Purpose Relay, Series 200, 2 Pole, Square Base', 'es': 'General Purpose Relay, Series 200, 2 Pole, Square Base'}

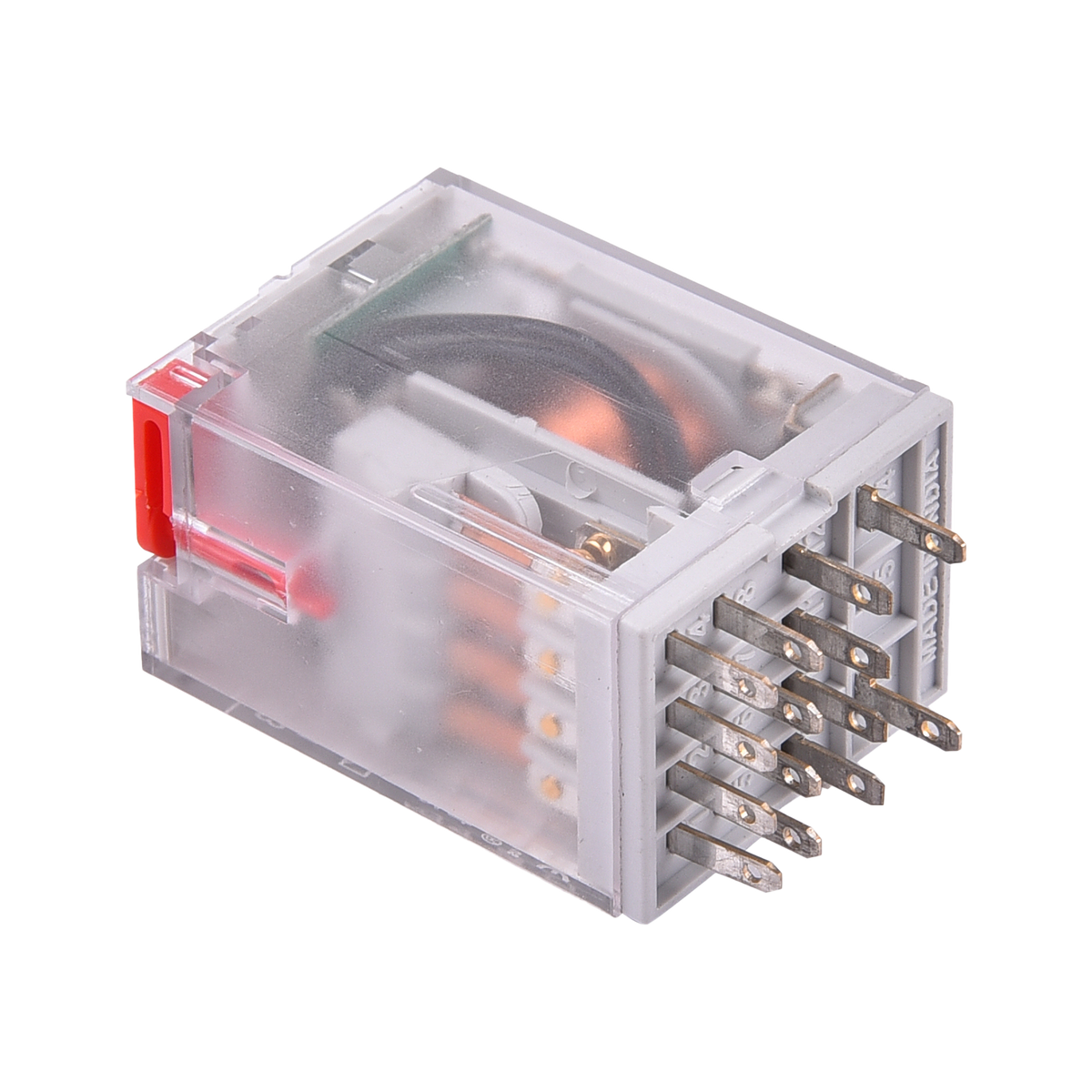

  • {'_type': 'localeString', 'en': 'General Purpose Relay, Series 200, 4 Pole, Square Base', 'es': 'General Purpose Relay, Series 200, 4 Pole, Square Base'}

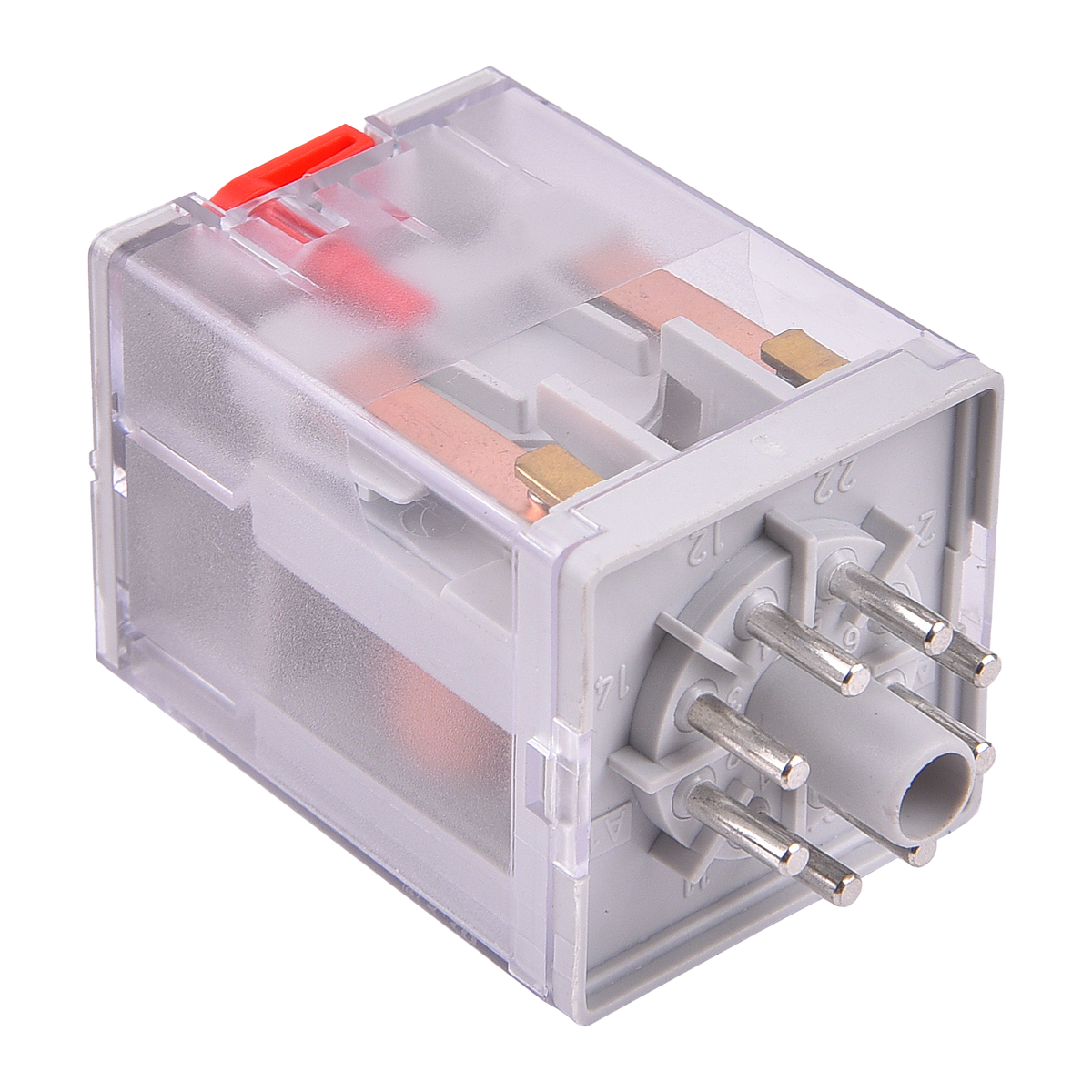

  • {'_type': 'localeString', 'en': 'General Purpose Relay, Series 210, Octal Base, 2 Pole', 'es': 'General Purpose Relay, Series 210, Octal Base, 2 Pole'}

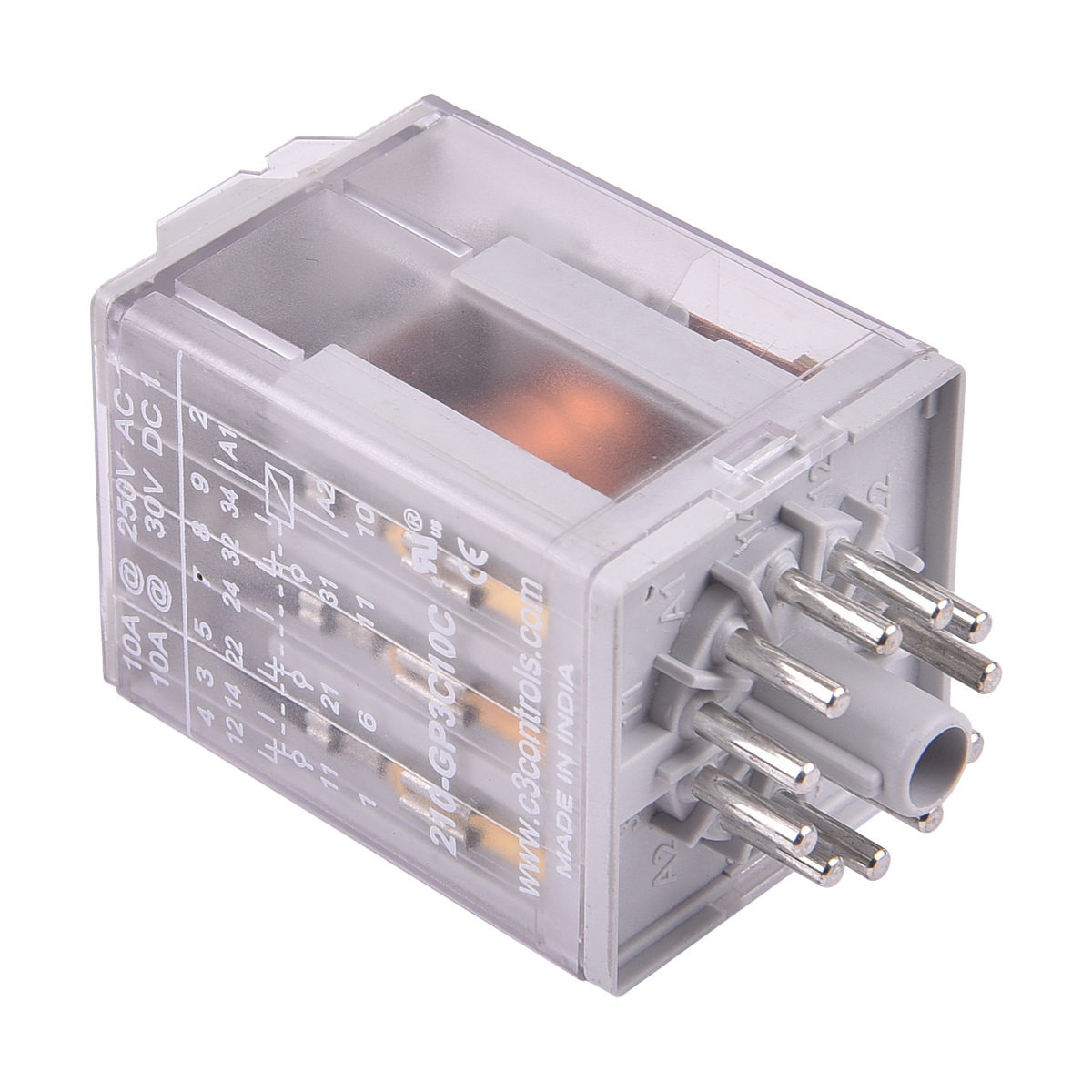

  • {'en': 'General Purpose Relay, Series 210, Octal Base, 3 Pole', 'es': 'General Purpose Relay, Series 210, Octal Base, 3 Pole', '_type': 'localeString'}
General Purpose Relays: Series 200-210

C3 Controls

General Purpose Relays: Series 200-210

Loading configuration options…
Download CAD package

Product Details

Various pole combinations.

Wide Range of Coil Voltages: AC voltages in 6, 12, 24, 48, 115, 230 and DC voltages in 12, 24, 48, 110, 220.

Options available with the Free Wheeling Diode, Free Wheeling Diode & Polarity Diode, RC Circuit, and Bridge Rectifier.

Our Series 210 Octal Base relays with pin style terminals are interchangeable with other commonly available relays.

Additional product combinations available. Consult factory for lead times and minimum order quantities.

Downloads

Installation instructions

CAD drawings

Certifications

Catalogs and guides

More resources

Product information

Technical details

Various pole combinations.

Wide Range of Coil Voltages: AC voltages in 6, 12, 24, 48, 115, 230 and DC voltages in 12, 24, 48, 110, 220.

Options available with the Free Wheeling Diode, Free Wheeling Diode & Polarity Diode, RC Circuit, and Bridge Rectifier.

Our Series 210 Octal Base relays with pin style terminals are interchangeable with other commonly available relays.

Additional product combinations available. Consult factory for lead times and minimum order quantities.
