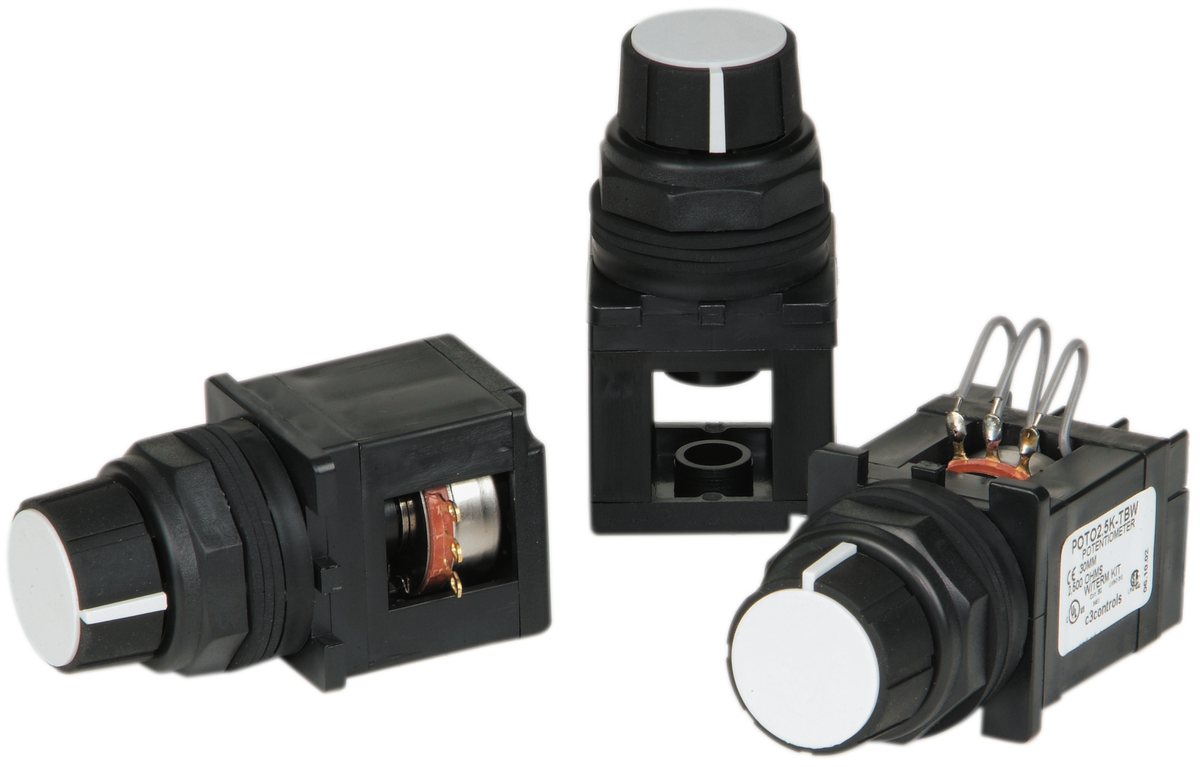

Industrial Potentiometer Operators : 30mm & 22mm
Loading configuration options…
Product Details

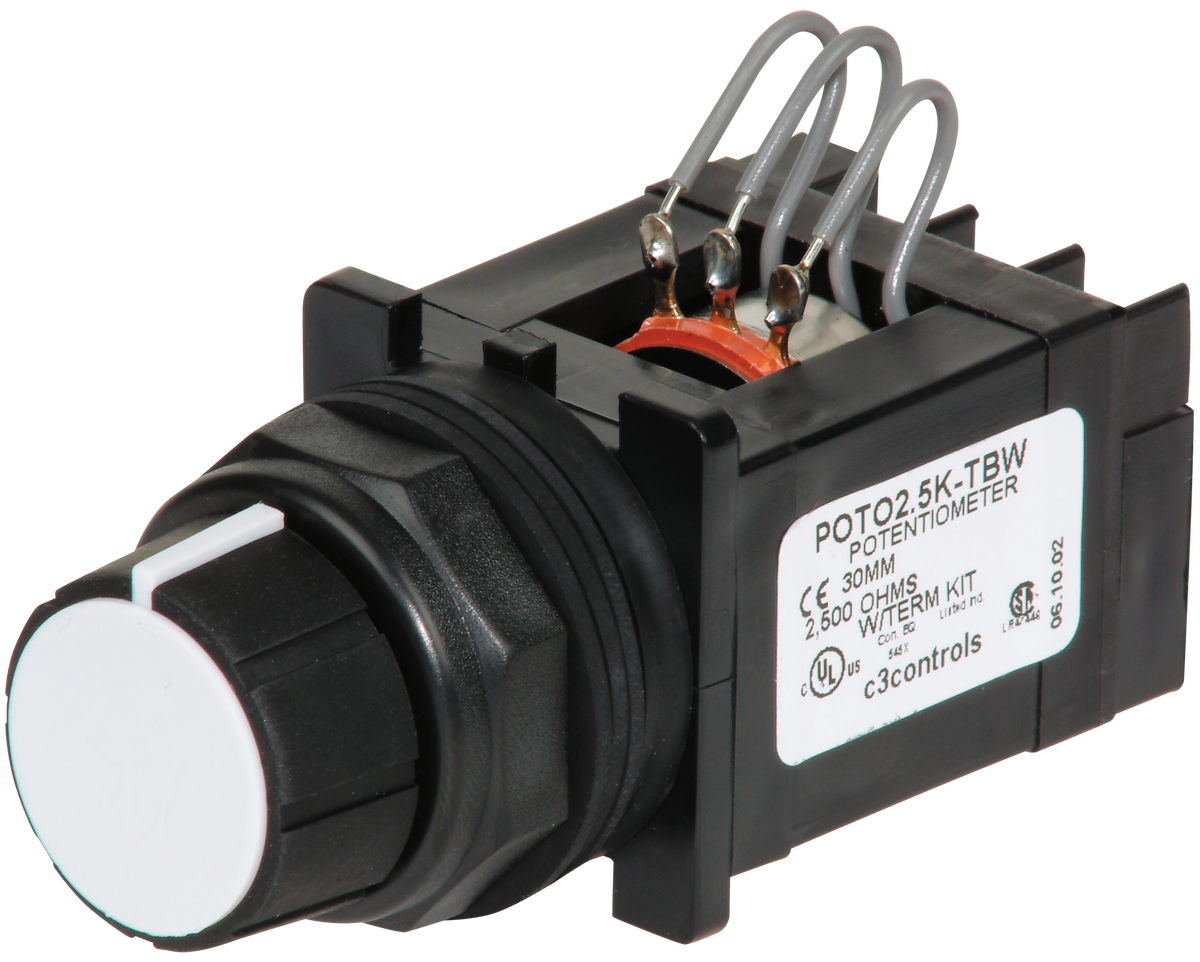

Single-turn standard 2 watt potentiometer with resistance range options from 1k to 10k. Special order values are available, consult factory.

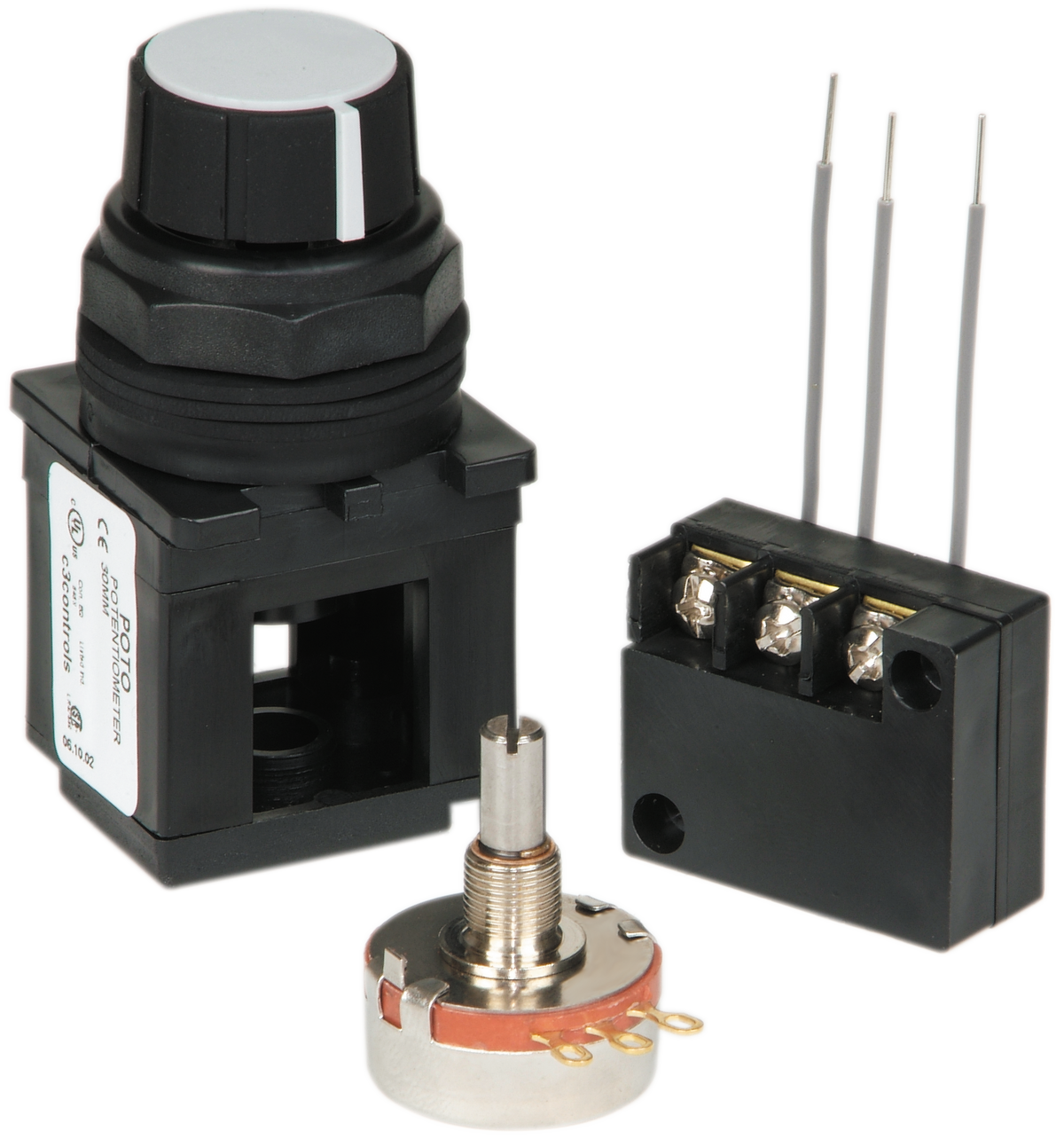

Three point terminal block and hardware.
Terminal block kit may be ordered separately or installed and wired at the factory to the potentiometer operator.
Optional polyester or polished aluminum clamp rings.
#6 terminal screws with self-lifting captive wire clamps accommodate #22 through two #12 AWG wires (0.5-4mm2) per terminal.
All frictional parts are molded with an internal self-lubricant to provide outstanding wear without troublesome greases used by others.
Our revolutionary U-Cup seal is infused with a Teflon coating to eliminate cracking when exposed to harsh conditions.
Manufactured with industrial grade plastics for strength and less weight, the tough polyester construction provides electrical insulation, resists corrosion, and rejects moisture.
- Device Rating: NEMA
- NEMA Rating: Type 1,2,3,3R,4/4X,12,13
- IP Rating: IP20
- IP Rating: IP65
