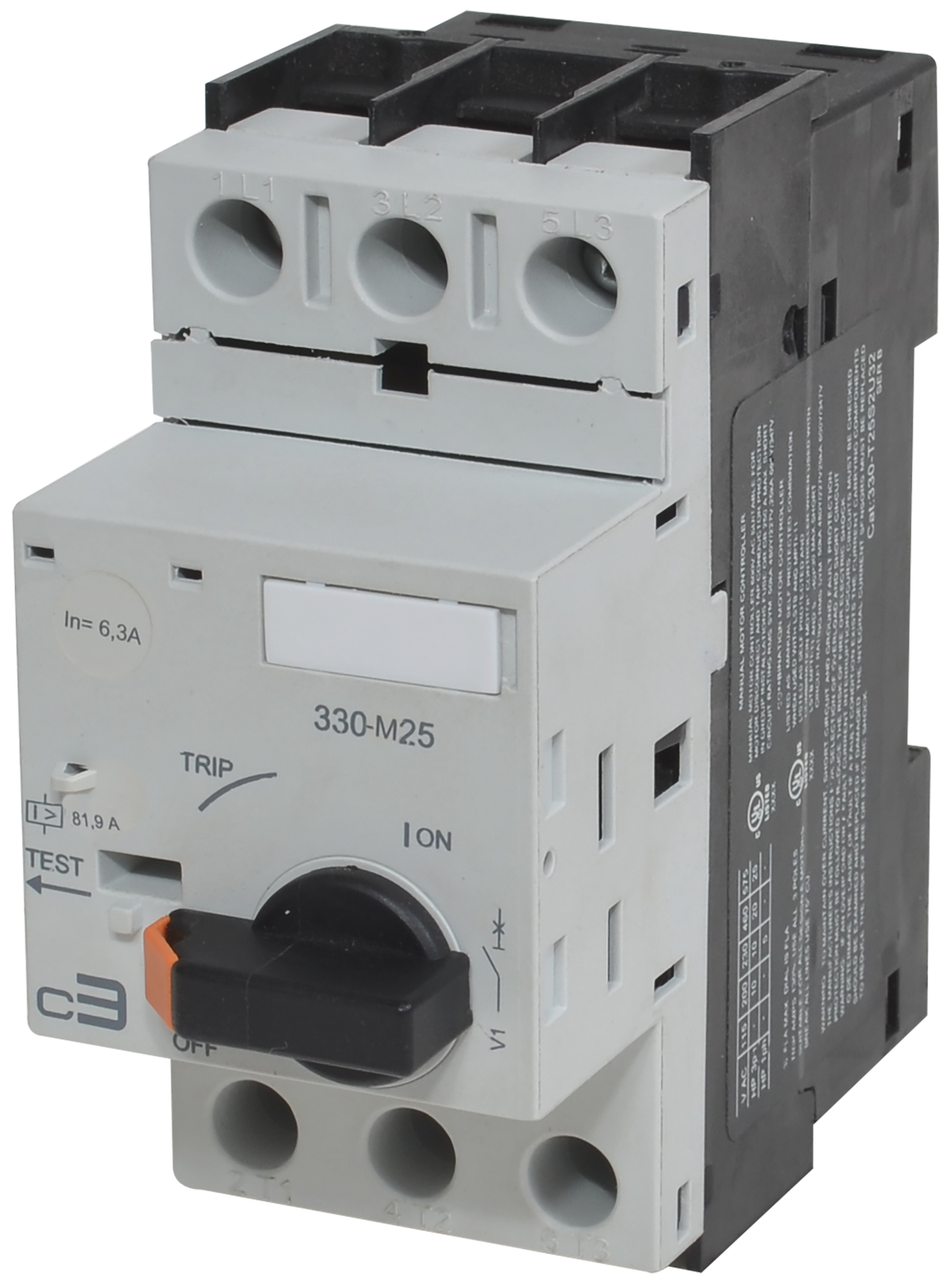

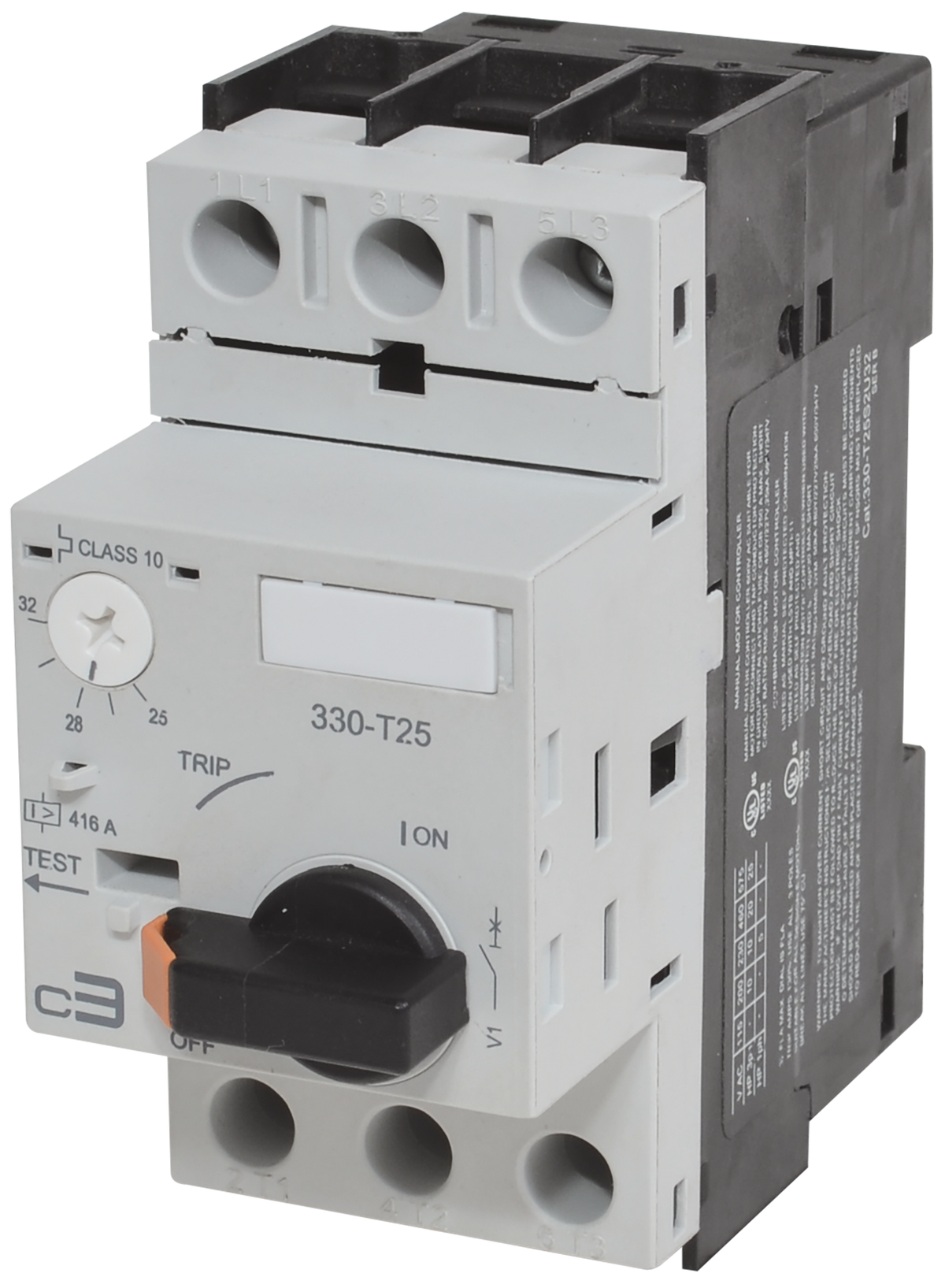

Motor Protection Circuit Breakers

Only 45mm wide up to 20HP @ 460V (15kW @ 400V).

Ampere Ratings: 0.10A-32A

High fault short circuit current rating of 50kA @ 480V.

Certified as Manual Motor Controllers Suitable as Motor Disconnects, can be used in Group Motor Installations, and can be used to manually control individual motors and protect them against overload and short circuit currents.

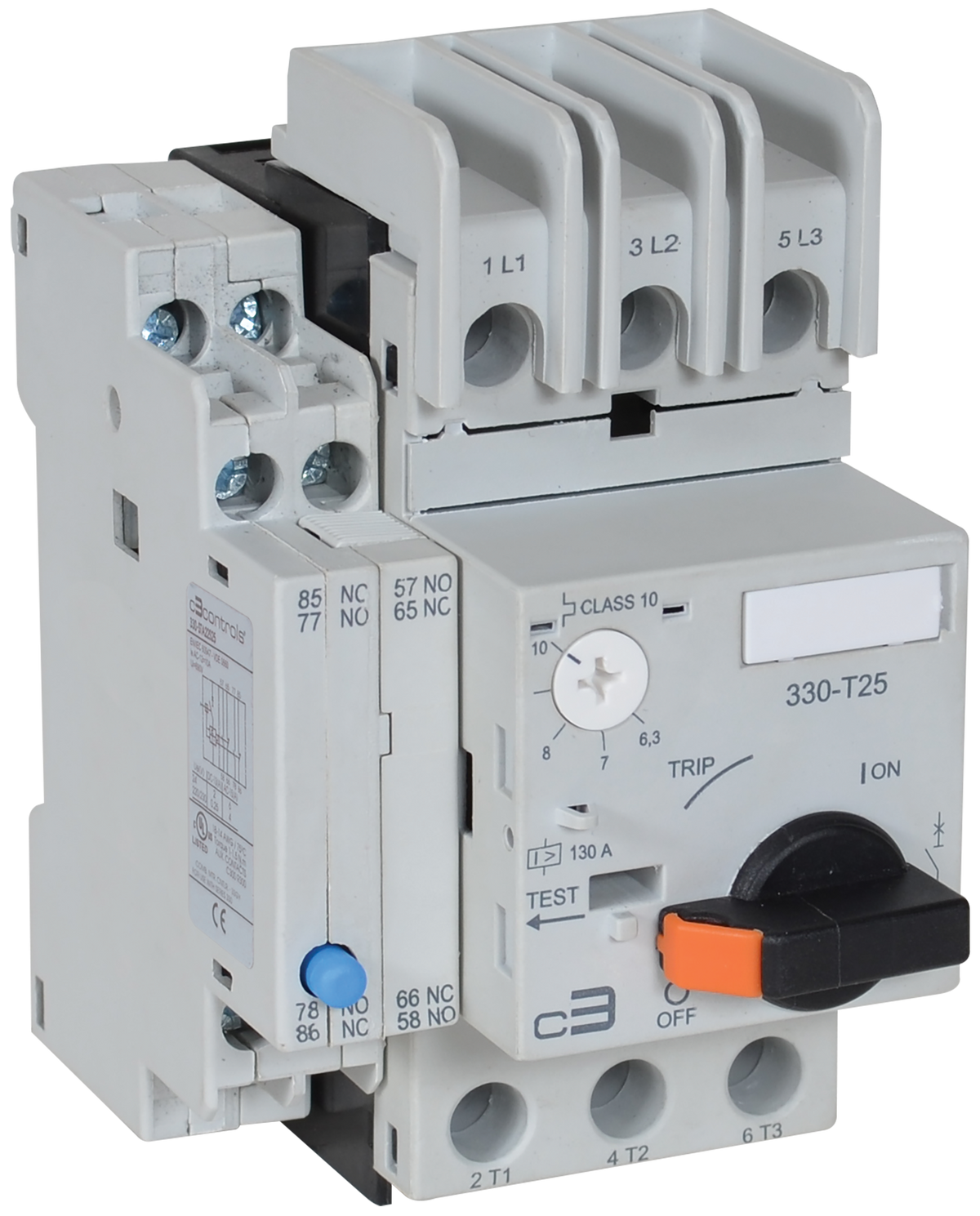

Listed as a UL 60947-4-1A Type E self-protected combination Manual Motor Controller for circuits capable of delivering up to 50kA@460V.

The “ON/OFF” manual operator enables individual motor circuits to be easily isolated without having to disconnect all of the circuits in a control panel.

Operators can be padlocked in the “OFF” position during maintenance.

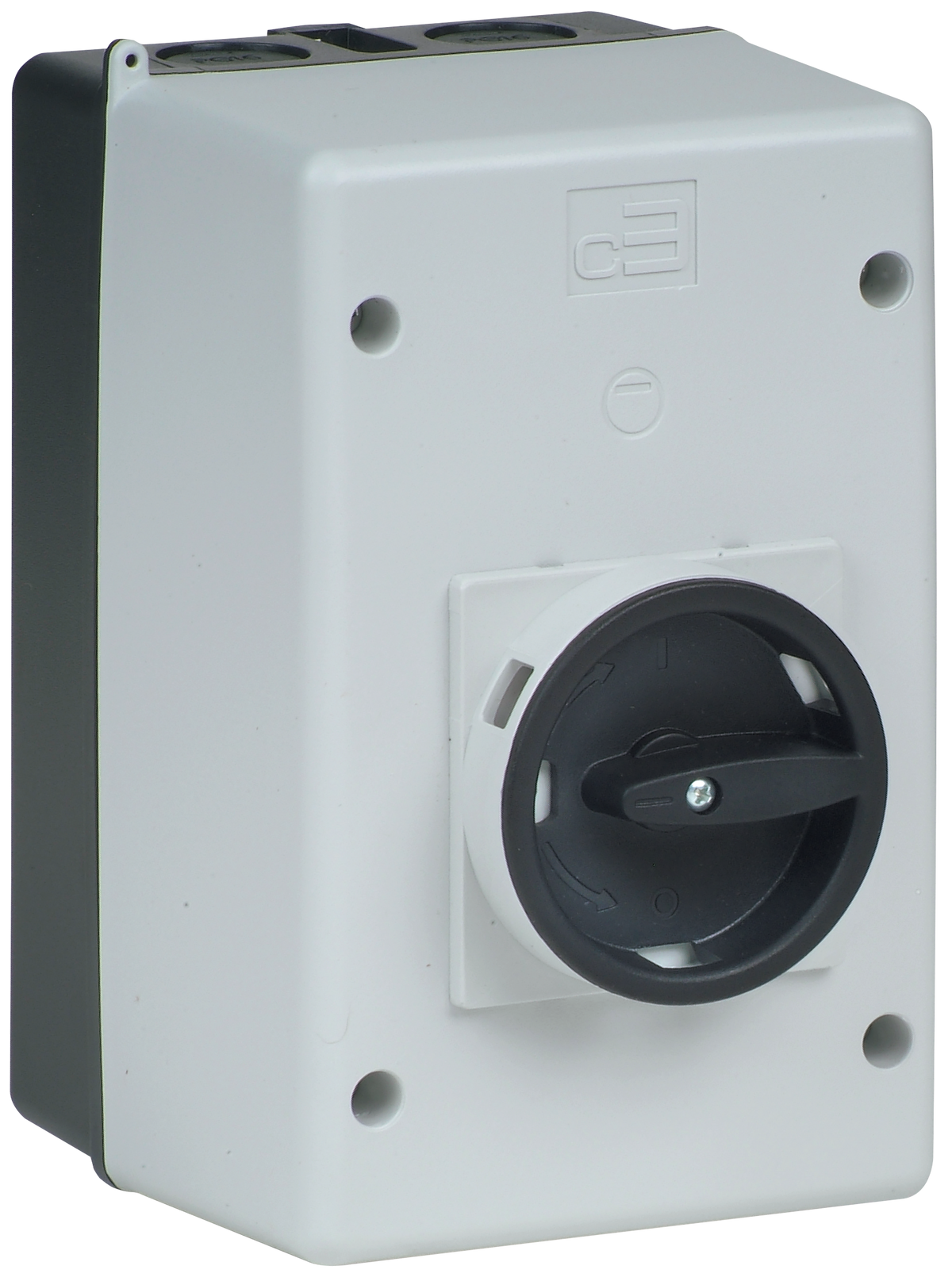

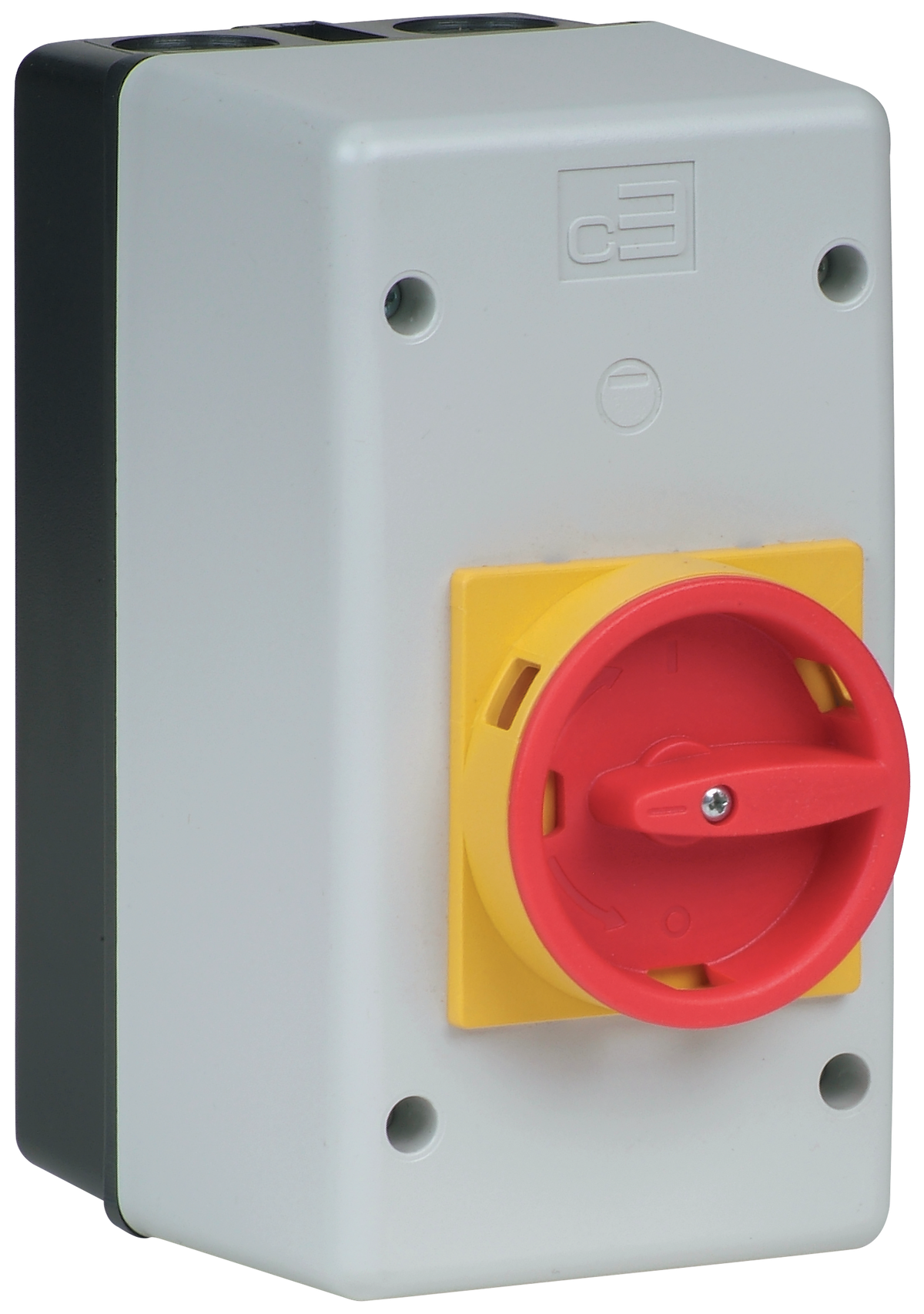

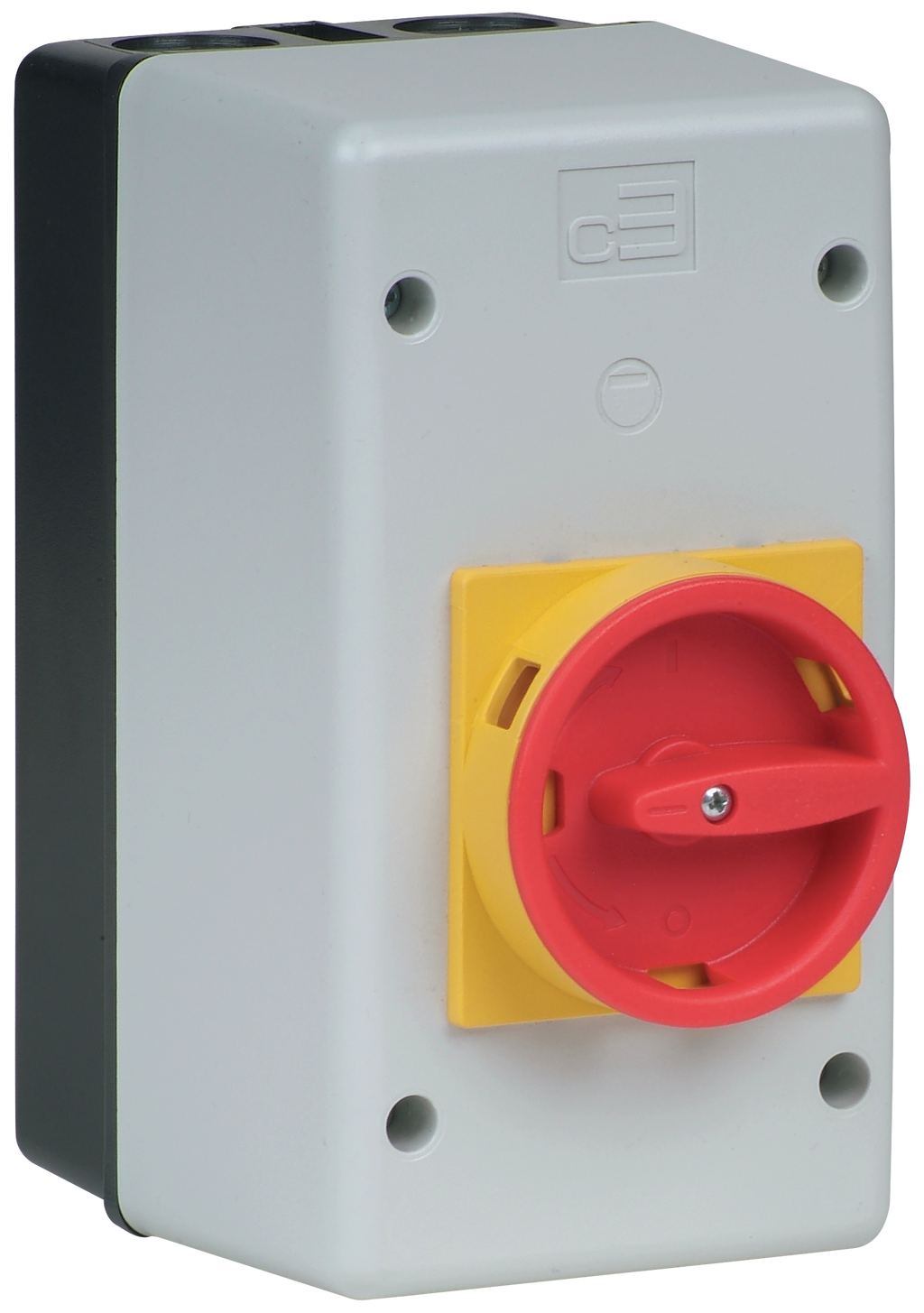

Enclosed breaker features an ABS Plastic enclosure designed with integrated ground and neutral connections, and four standard PG16 knock outs.

The lift off ABS Plastic enclosure has an IP55 environmental rating and is CE certified.

Top 5 Best Sellers

Adj. Range: 10-16A p/n: 330-T25S2U16

Adj. Range: 16-20A p/n: 330-T25S2U20

Adj. Range: 4.0-6.3A p/n: 330-T25S2D63

Adj. Range: 2.5-4.0A p/n: 330-T25S2D40

Adj. Range: 6.3-10A p/n: 330-T25S2U10

• Device Rating: IEC
