30mm Hazardous Location Pilot Lights
Loading configuration options…
Product Details

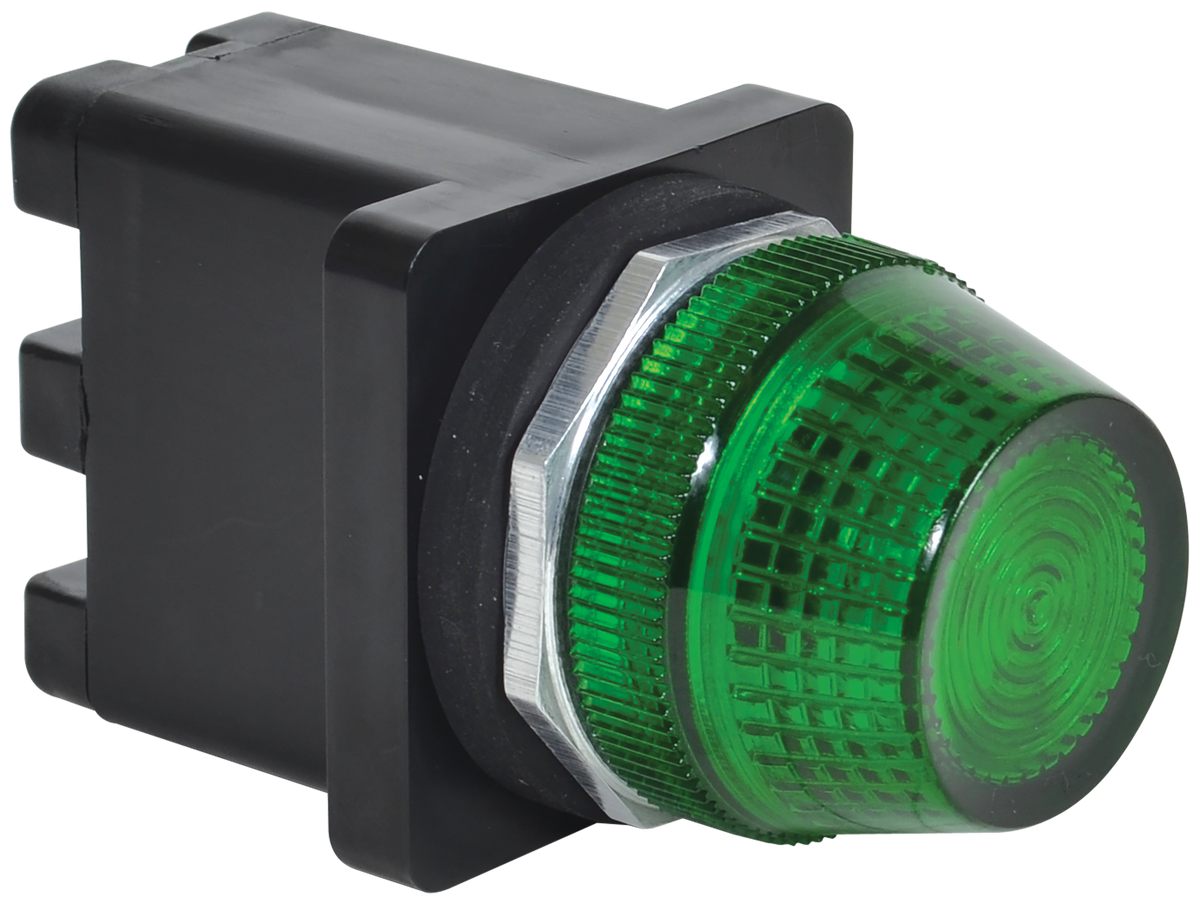

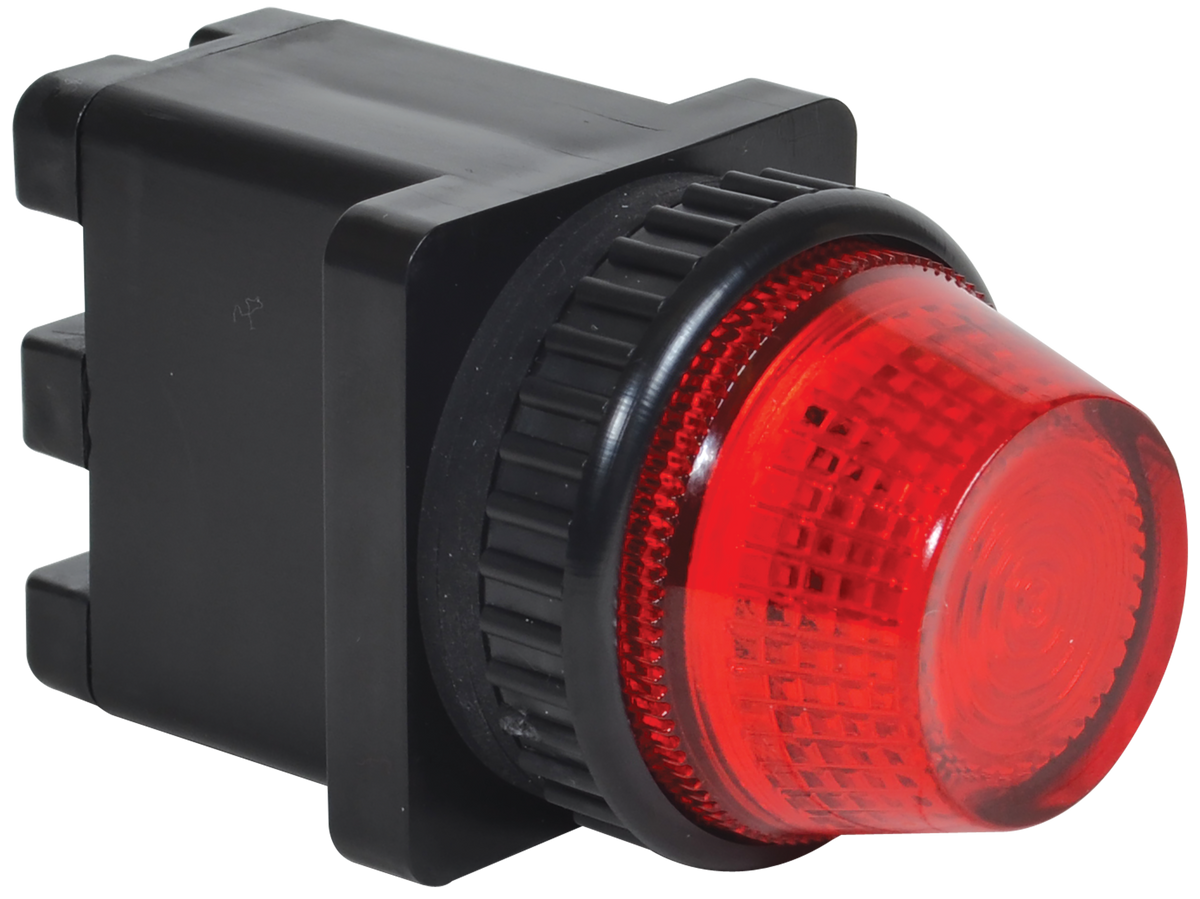

Available in modular, multi-voltage and push-to-test
Multi-voltage, full voltage, resistor, and dual-input light units in a wide range of voltages up to 480V AC/DC
Wide variety of lamp types and colors
LED voltage tolerance is +/- 10%

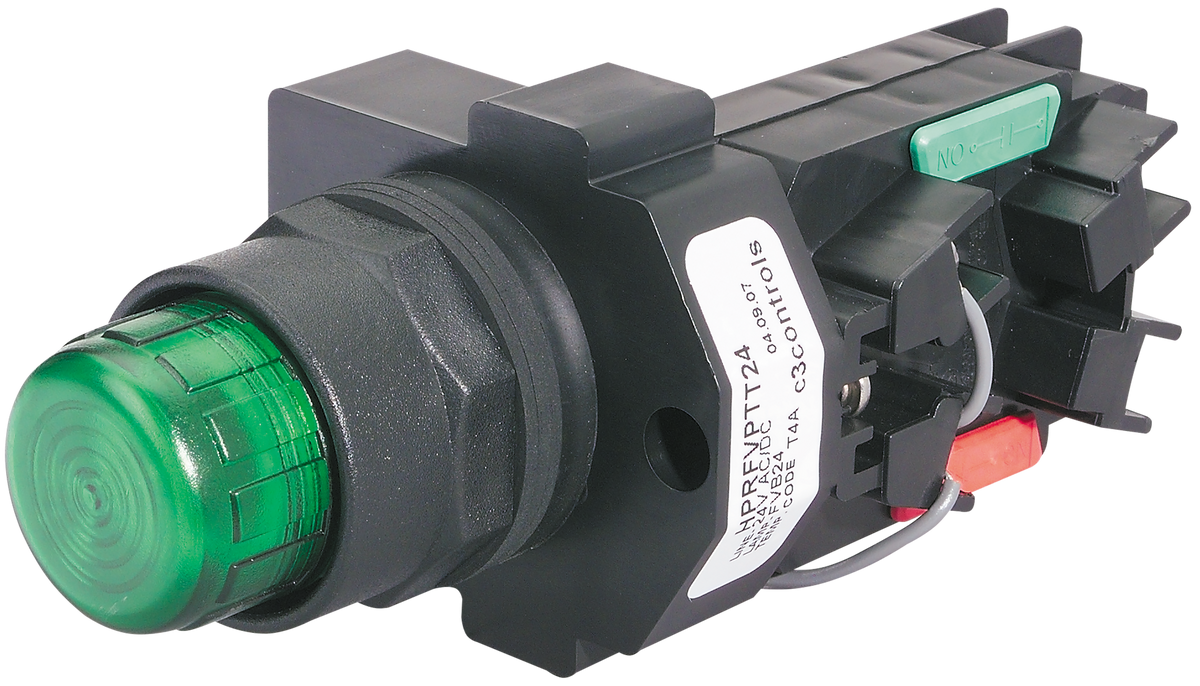

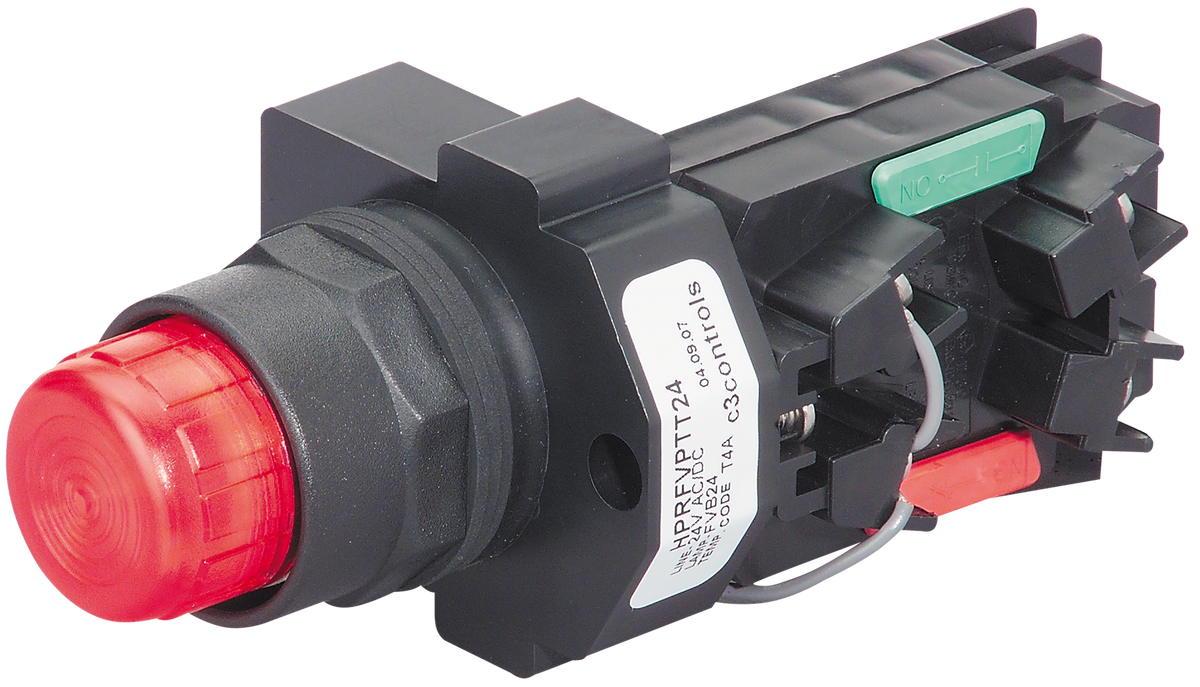

Our push-to-test pilot lights aid in the troubleshooting of the circuit
Top 5 Best Sellers
FV 24VAC/DC, Red LED & Lens p/n: HFVLU24LR-PLLRD
FV 24VAC/DC, Green LED & Lens p/n: HFVLU24LG-PLLGN
FV 24VAC/DC, Amber LED & Lens p/n: HFVLU24LA-PLLAR
FV 120VAC/DC, Green LED & Lens p/n: HFVLU120LG-PLLGN
FV 120VAC/DC, Red LED & Lens p/n: HFVLU120LR-PLLRD
- Mounting Diameter: 30mm
- Operator/Switch Size: 30mm
- Device Rating: NEMA
- NEMA Rating: Type 1,2,3,3R,4/4X,12,13
Downloads
Installation instructions
CAD drawings
- RLU-HRLU-PLL PDF Opens in a new window.
- RLU-HRLU-PLL DXF Opens in a new window.
- RTLU-HRTLU-PLL PDF Opens in a new window.
- RTLU-HRTLU-PLL DXF Opens in a new window.
- HPR-HFS-RLPTT-HIPBC DXF Opens in a new window.
- 30MV20-277 PDF Opens in a new window.
- 30MV20-277 DXF Opens in a new window.
- FVLU-HFVLU-PLL PDF Opens in a new window.
- FVLU-HFVLU-PLL DXF Opens in a new window.
- FVLU-HFVLU-PLL-IP20 PDF Opens in a new window.
- FVLU-HFVLU-PLL-IP20 DXF Opens in a new window.
Certifications
- CE Declaration & RoHS Compliance: 30mm Hazardous Location Pilot Devices PDF Opens in a new window.
- CE Declaration & RoHS Compliance: 30mm Contact Blocks (Hermetically Sealed) PDF Opens in a new window.
- CE Declaration & RoHS Compliance: 30mm Contact Blocks (Factory Sealed) PDF Opens in a new window.
- UL Certificate of Compliance: E68568-19941024 PDF Opens in a new window.
- UL Certificate of Compliance: E157436-19960919 PDF Opens in a new window.
- UL Certificate of Compliance: E157436-20000705 PDF Opens in a new window.
- UL Certificate of Compliance: E68568-20040924 PDF Opens in a new window.
