Custom design and build
We start with the application. Then we prepare schematics, layouts, and heat calculations for the environment of the panel.
Design and build
Custom control panels
We design industrial control panels from your application. We also build from your schematics, bill of materials, and documentation. Heat, environment, and size are part of the engineering.
- Panels built each year
- 3,000+
- And build-to-print
- Design-build
- And serial production
- OEM
Design, build-to-print, and production
We design a panel from the application. We also build from your drawings. We support one-off jobs and serial production.
Build-to-print
Send approved schematics, a bill of materials, and documentation. We build to your drawings. We use the same inspection process as a design-build job.
Hazardous locations
We build panels for classified areas. This includes purge systems and intrinsically safe apparatus when the application needs them.
Specified components
We install Rockwell Automation, Siemens, Schneider Electric, ABB, and LSIS Electric hardware. We select components for the job. We do not substitute unapproved parts.
One-off and serial production
We apply the same inspection process to a one-off panel and to a production run.
Enclosure milling
We mill cutouts and modify enclosures so the enclosure matches the layout.
From evaluation to a tested panel
We keep communication clear through design, build, and inspection. The panel that ships is the panel you approved.
-
Design evaluation
We review the application, environment, and requirements before we lock the layout.
-
Engineering and schematics
We prepare schematics, layouts, and documentation for your approval.
-
Panel construction
We account for heat, size, and environment during the build.
-
Inspection and testing
We inspect each panel against the approved requirements before it leaves the shop.
Recent control panel projects
These panels cover military infrastructure, renewable energy, automotive finishing, and high-power motor control.
Choose a project
Military infrastructure

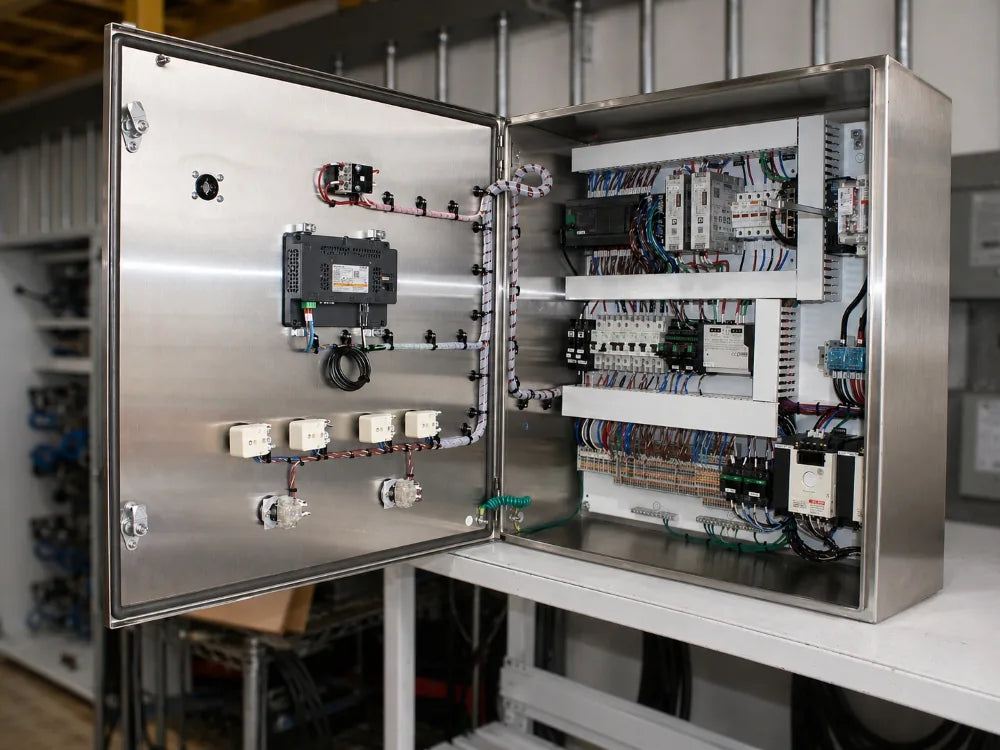

Sewage pump control system
U.S. Army Africa infrastructure project
This dual-VFD sewage pump control package follows the Army sequence of operation and the site requirements.
- Lead/lag pump operation for balanced runtime
- Automatic level-based pump sequencing
- Schneider Electric PLC with custom programming
- Alarms, monitoring, and fail-safe protection
Renewable energy

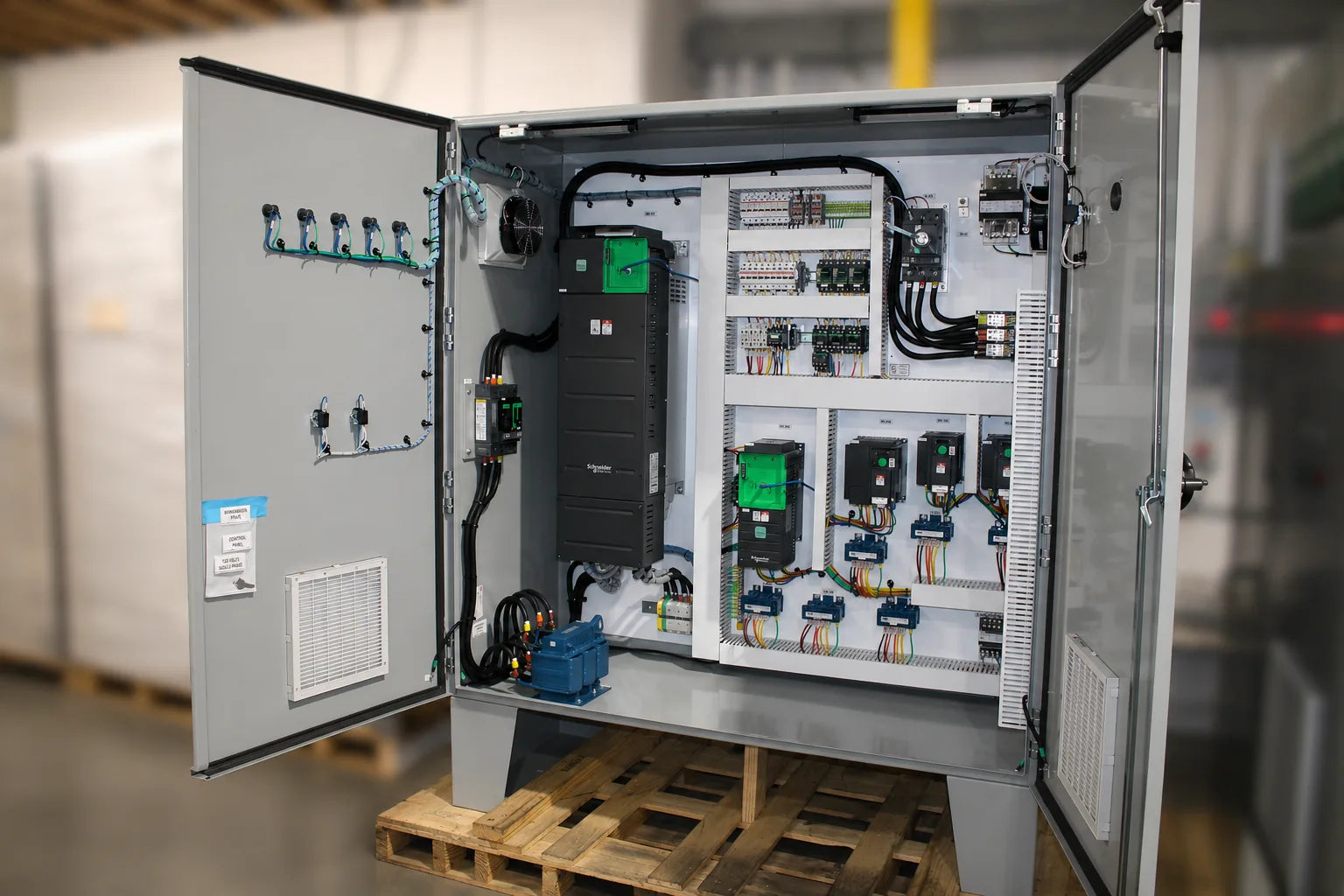

VFD control system
Biogas renewable energy facility
This VFD control panel package runs blowers, pumps, and gas-handling equipment at a biogas processing facility.
- Engineering matched to the process requirements
- Coordinated motor control
- VFD motor control for blowers and pumps
- Factory testing before shipment
Automotive finishing

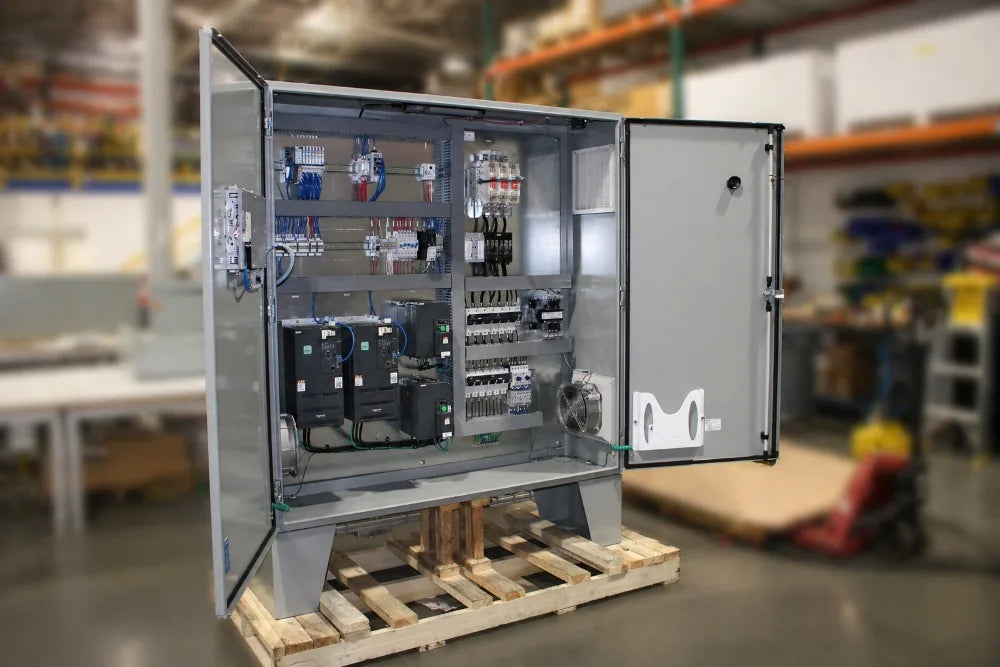

Paint booth airflow control system
Electric vehicle paint booth
This VFD control panel package controls paint-booth airflow on an electric-vehicle finishing line.
- Fan speed and airflow control
- Variable fan speed to reduce energy use
- Reduced mechanical wear
- Safety and equipment protection
Heavy industrial

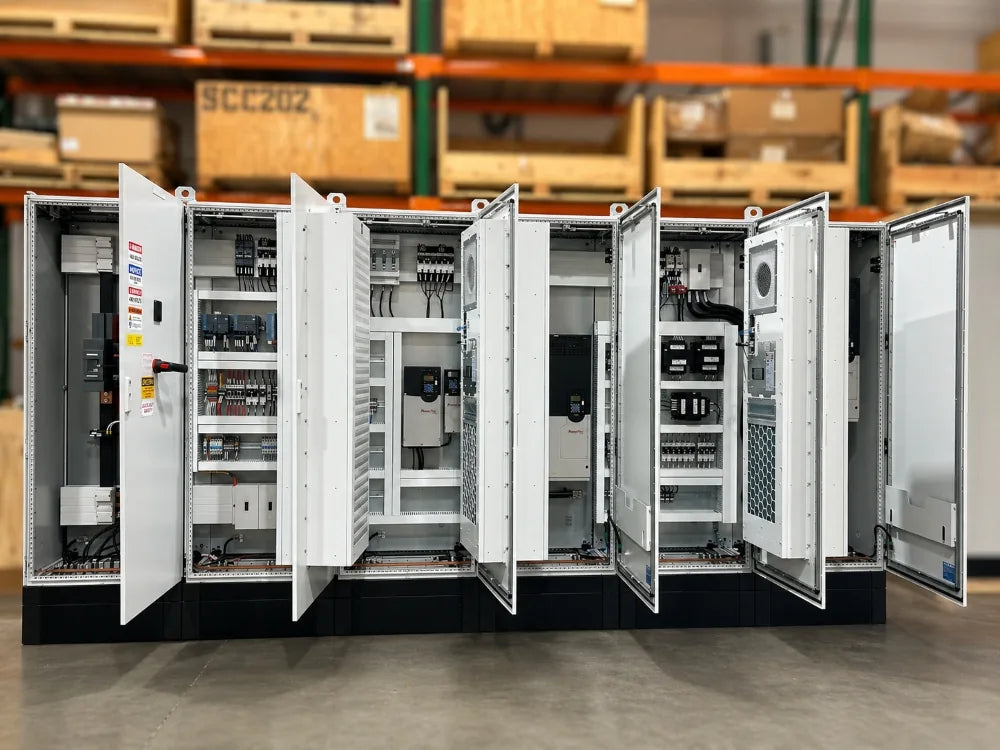

2000A multi-motor drive package
High-power motor control and distribution system
This 2000-amp power distribution and motor control system operates multiple 400 HP motors.
- 2000A main power distribution
- VFD motor control for multiple 400 HP motors
- Coordinated branch protection
- Thermal management across modular cabinets
UL 1203
Explosion-proof panels
When the area is classified, the panel must match the area. We build explosion-proof and dust-ignition-proof control panels to UL 1203. We also build hazardous-location panels to UL 698A.
- Explosion-proof and dust-ignition-proof construction to UL 1203
- Hazardous-location panels to UL 698A
- Purge and intrinsically safe designs when the requirements call for them
Panel shop listings and quality system
We build industrial control panels as a UL 508A panel shop. We also build to UL 698A and UL 1203 when the application needs hazardous-location construction. Our quality system is ISO 9001:2015.
UL 508A
Industrial control panels
UL 698A
Industrial control panels for classified areas
UL 1203
Explosion-proof and dust-ignition-proof equipment
ISO 9001:2015
Quality management
Frequently asked questions
Design-build, listings, production, and what to send for a quote.
Can you design the panel, or only build to our drawings?
We design and build custom panels from your application. We also build from customer-supplied schematics, bills of materials, and documentation.
Which listings do you build to?
We build industrial control panels as a UL 508A panel shop. We build hazardous-location panels to UL 698A. We build explosion-proof and dust-ignition-proof equipment to UL 1203.
What should we send for a quote?
Send the application, environment, and any available schematics, layout drawings, or a bill of materials. If you are still defining the job, a description of the process, voltage, and enclosure requirements is enough to start.
Do you handle OEM and serial production?
Yes. We support OEM panels, build-to-print jobs, and serial production. Repeating units use the same approved layout, inspection, and labeling on every panel.
Which component brands do you install?
We install Rockwell Automation, Siemens, Schneider Electric, ABB, and LSIS Electric. We install the hardware that your requirements call for.
Do you modify enclosures as part of the panel build?
Yes. We mill enclosure cutouts as part of the panel build so the enclosure matches the layout. We can also quote cutouts, tapping, and engraving as a standalone enclosure modification.
Request a quote for a custom panel
Send the application, drawings, or a bill of materials. We will review the requirements and quote the build.
