13mm Pilot Lights (Indicating)
Loading configuration options…
Product Details

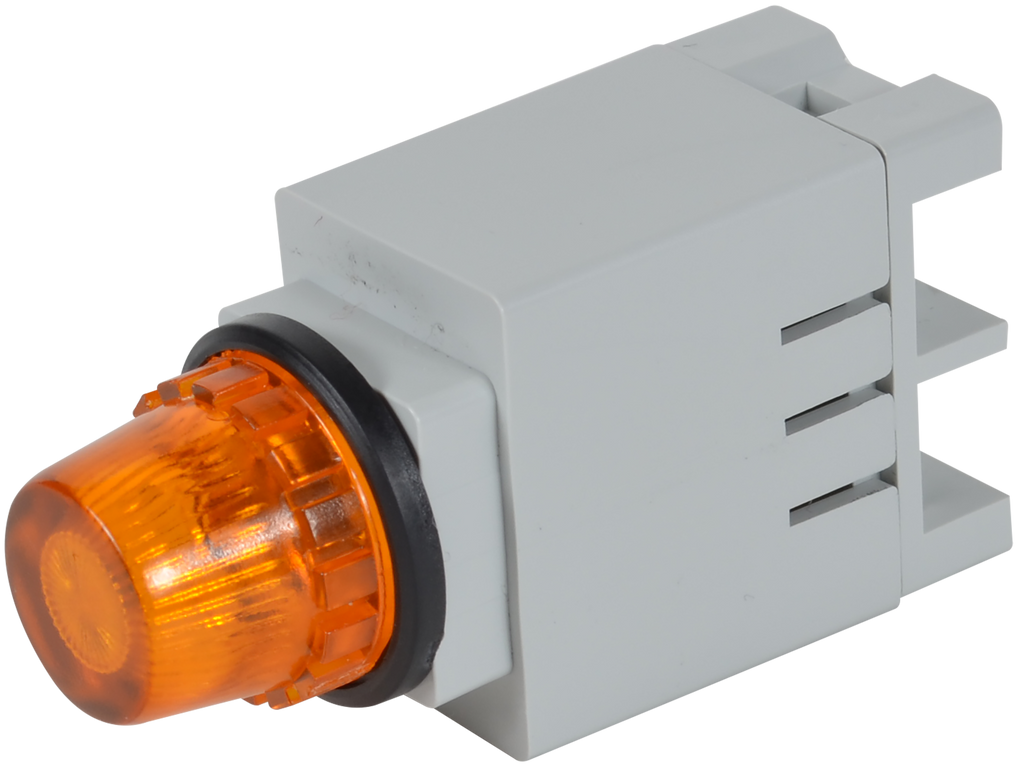

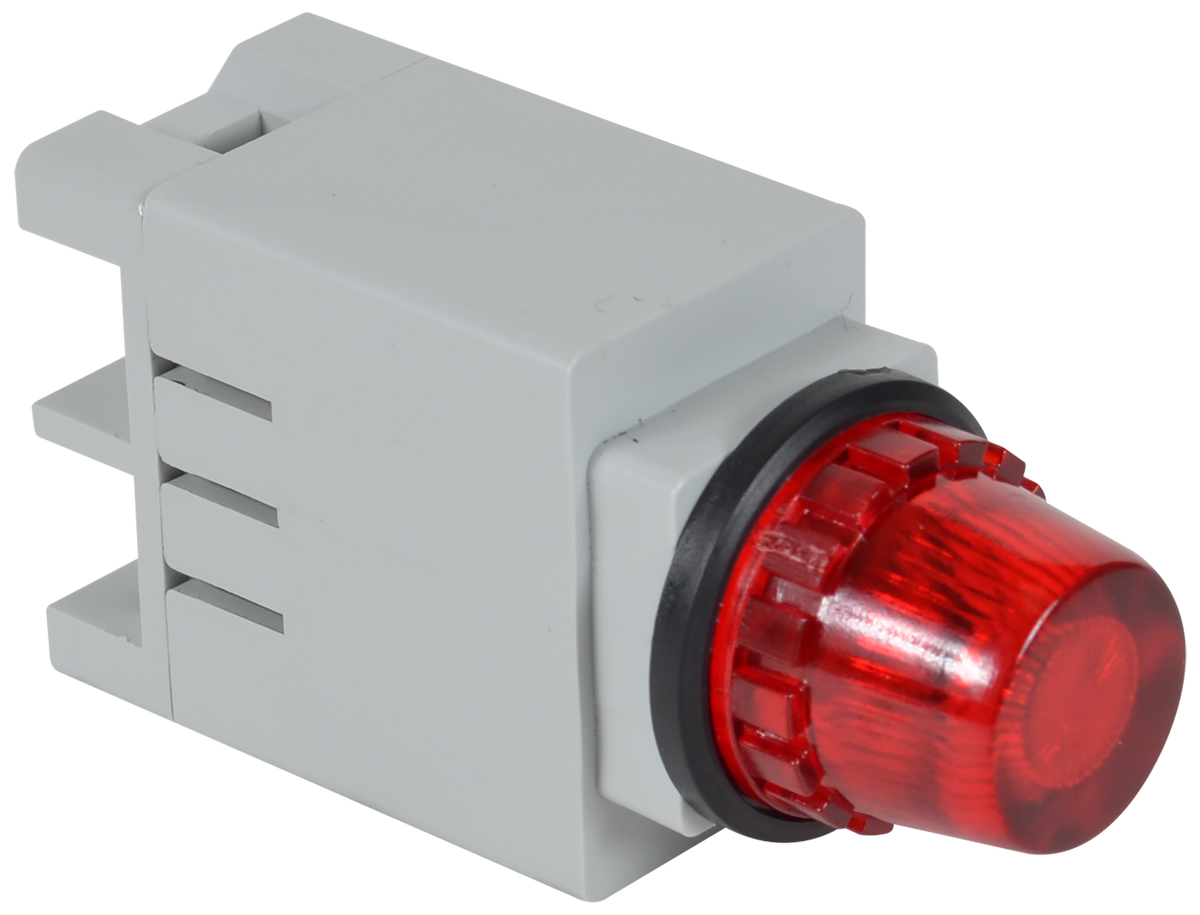

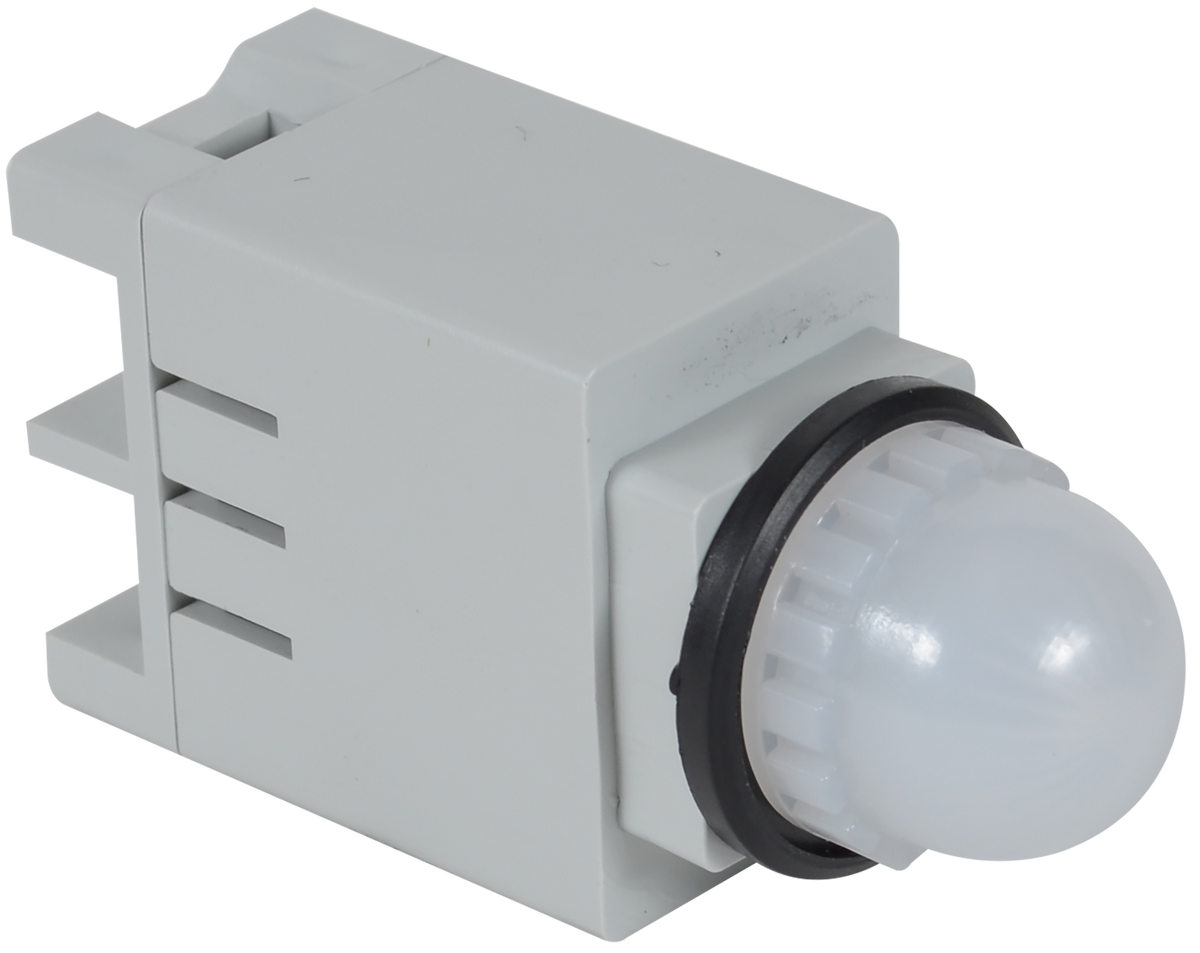

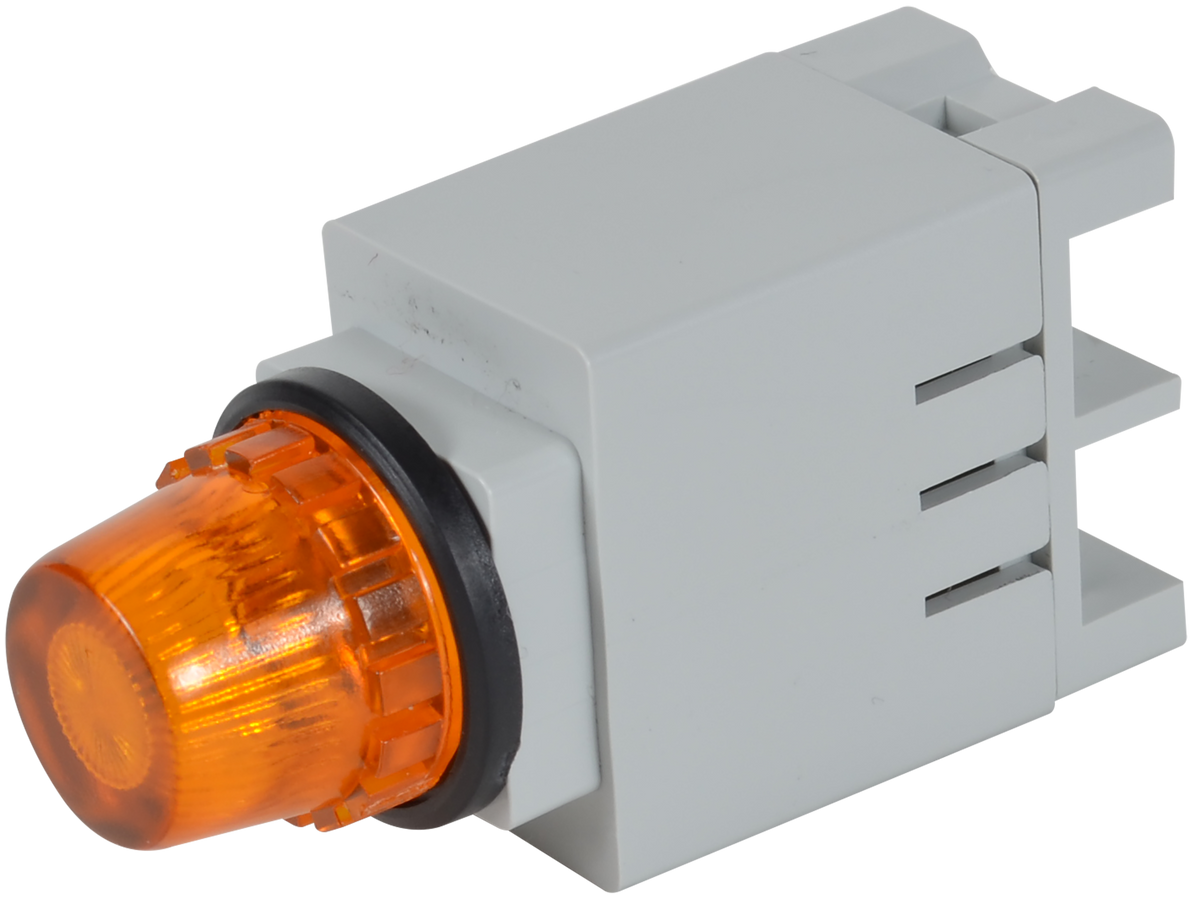

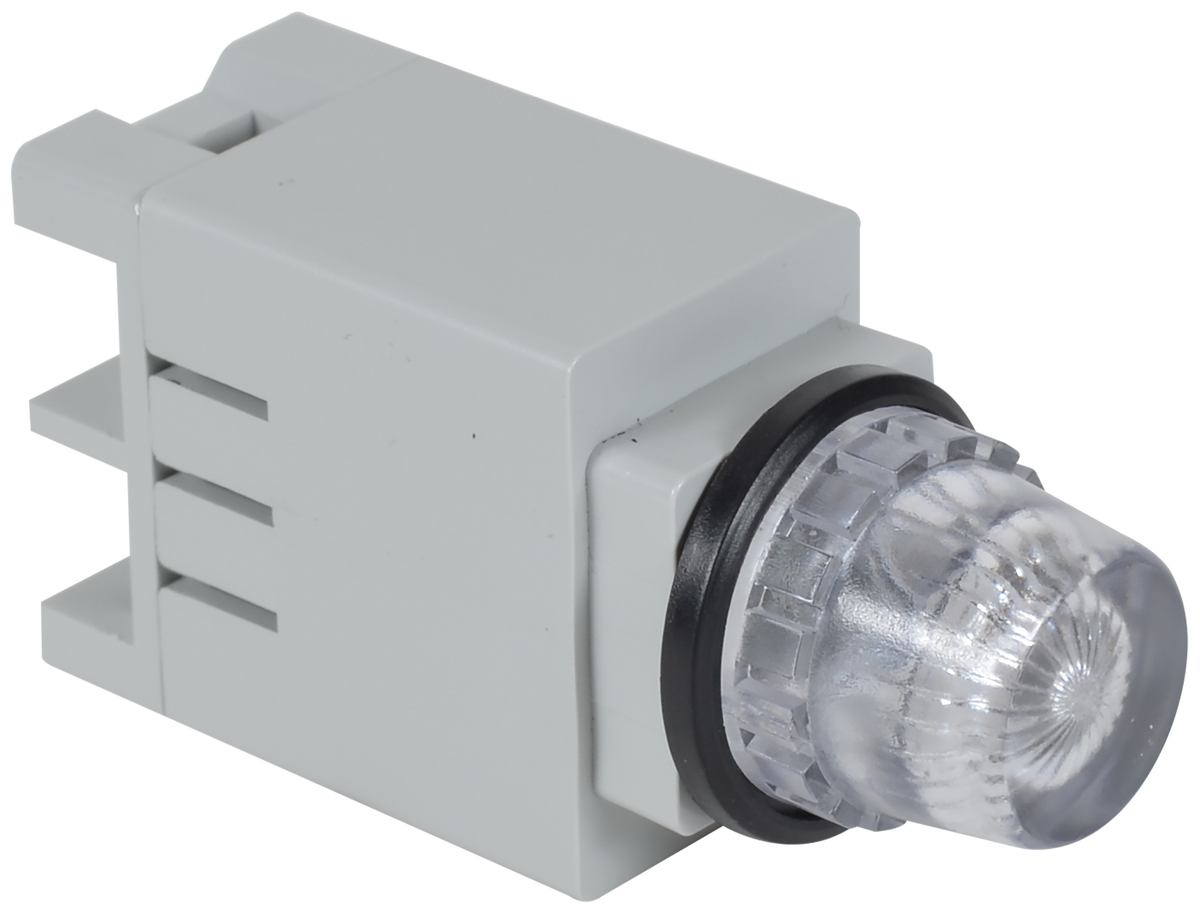

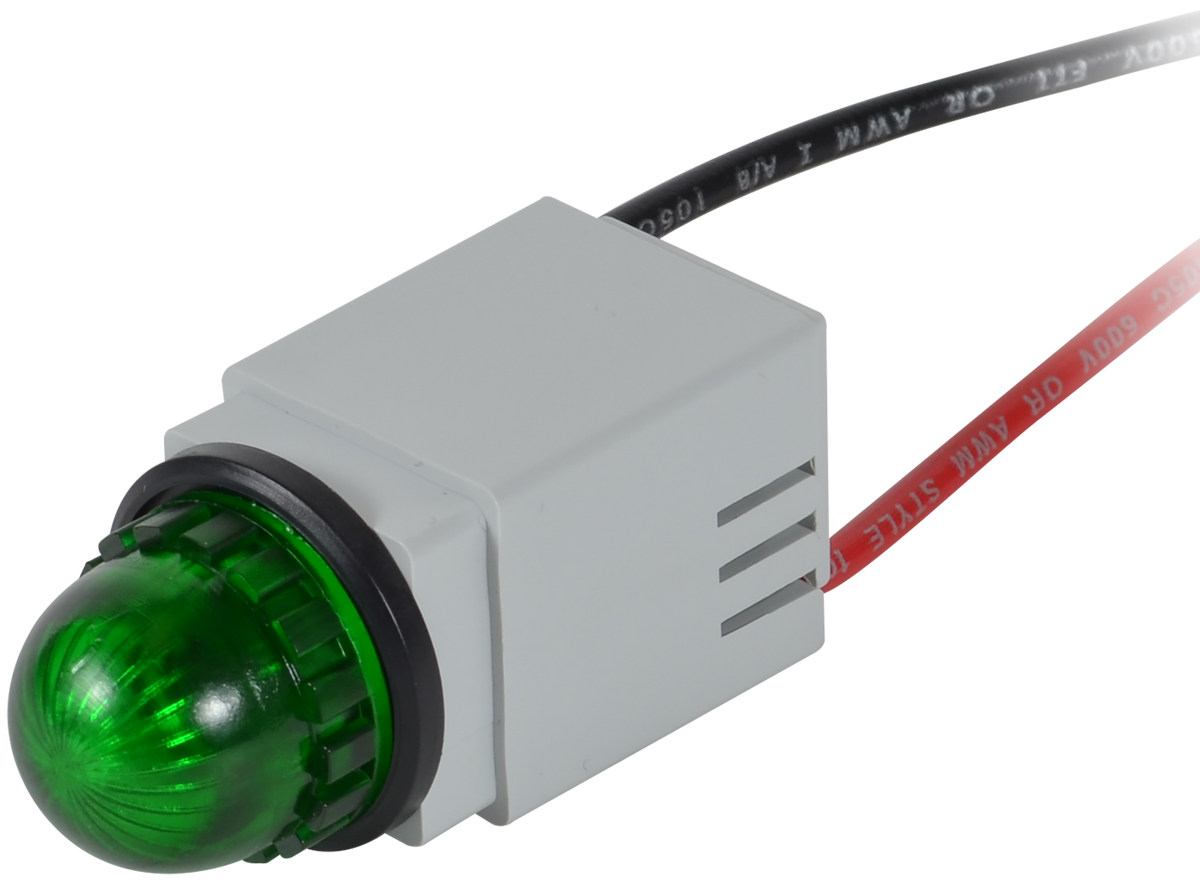

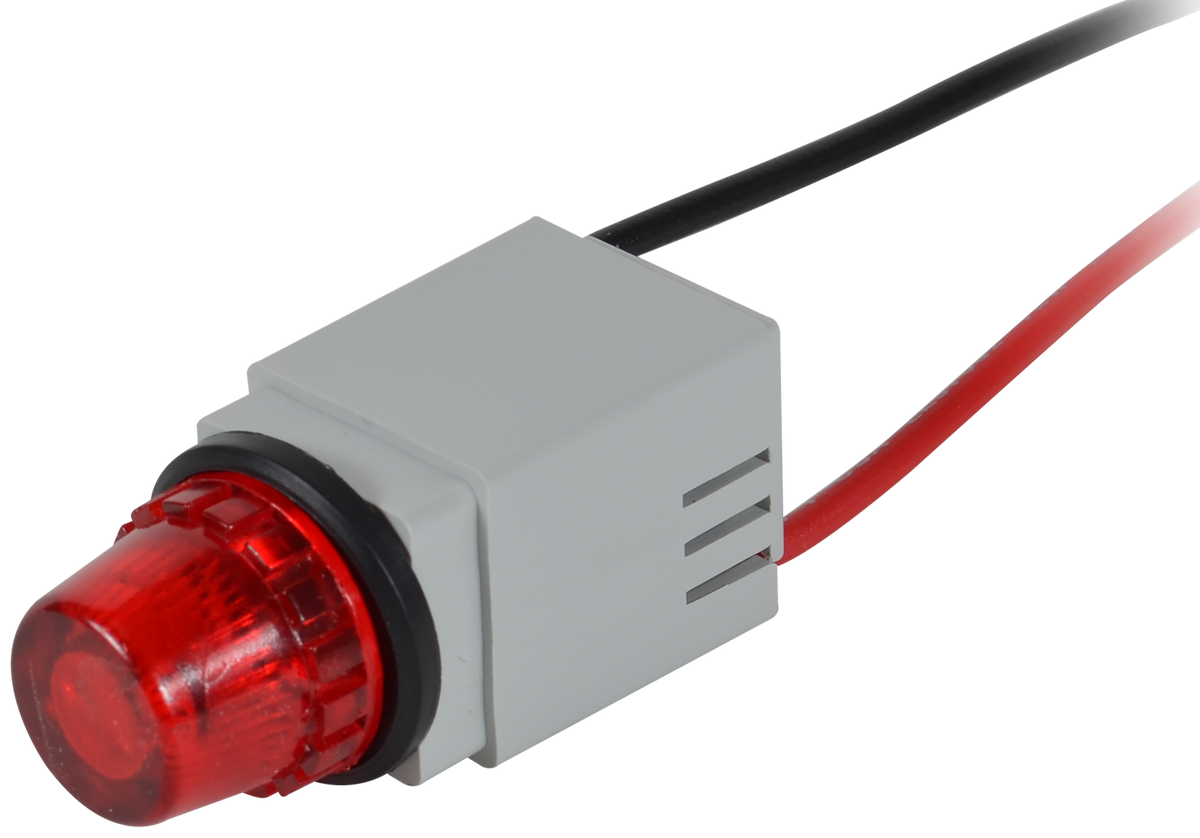

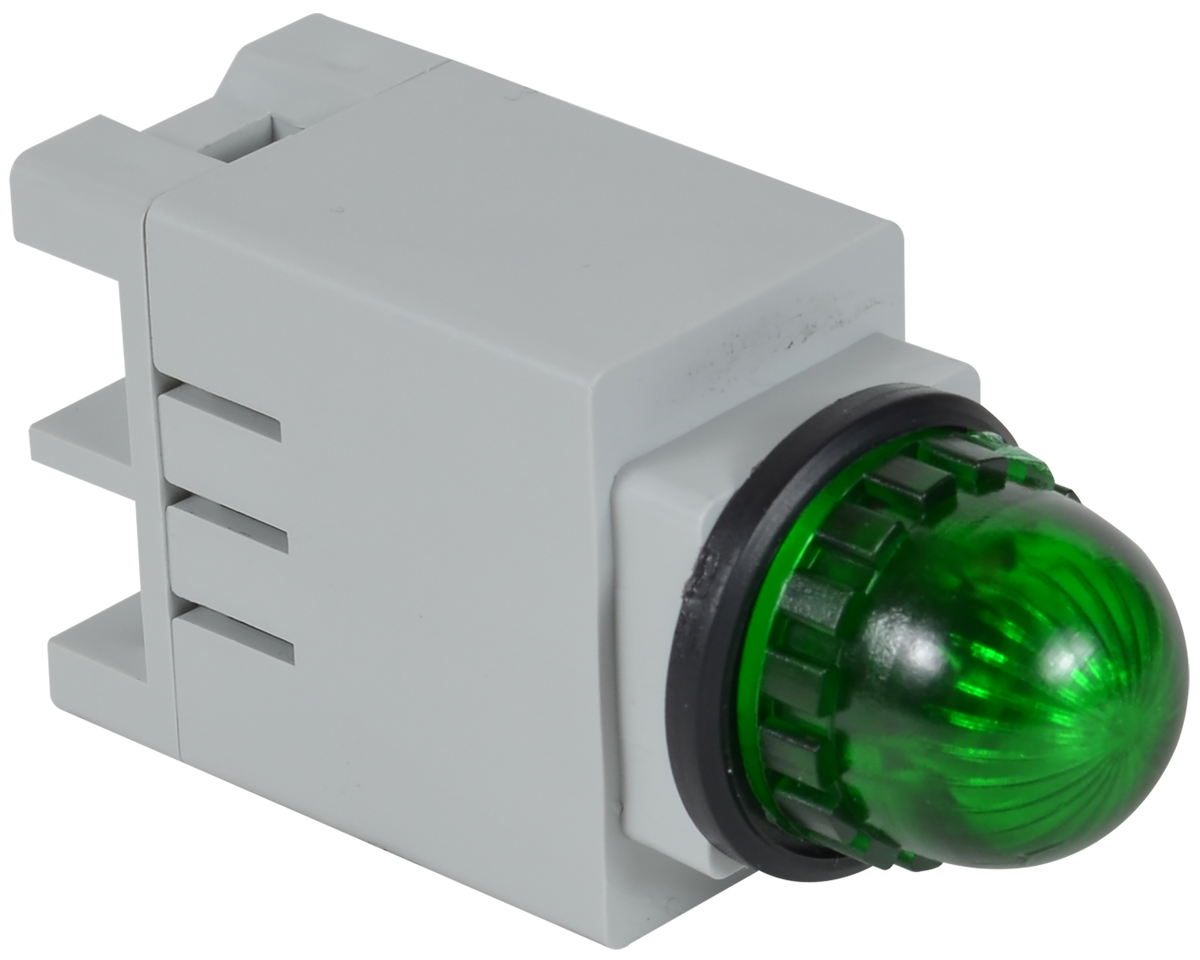

Configurations available in both screw terminal and wire lead.
Light units available in Super-Bright LED, and in a variety of lamp color options.
LED voltage options in 12V – 120V AC/DC and 240V AC. Voltage tolerance is +/- 10%.
Lens types available in round or flat and in 6 color options.
Internal wire leads available in standard and custom lengths and various wire color options. Note: 13mm pilot lights with non-standard wire leads are not available for same-day shipping.
Optional, field installable IP20 terminal guard available for use with LED light units.
Top 5 Best Sellers
12VAC/DC, Blue LED, Clear Round Lens, Wire Lead p/n: 13SBLB12WL-13CRR
120VAC/DC, Green LED & Flat Lens, Screw Terminal p/n: 13SBLG120ST-13GNF
24VAC/DC, Green LED & Round Lens, Screw Terminal p/n: 13SBLG24ST-13GNR
120VAC/DC, Red LED & Flat Lens, Screw Terminal p/n: 13SBLR120ST-13RDF
120VAC/DC, Red LED & Round Lens, Screw Terminal p/n: 13SBLR120ST-13RDR
- Mounting Diameter: 13mm
- Operator/Switch Size: 13mm
- Bezel Material: Polyester
- Device Rating: NEMA
- NEMA Rating: Type 1,2,3,3R,4/4X,12,13
- IP Rating: IP20
Downloads
Installation instructions
CAD drawings
- 13SB-13N-ST-13R PDF Opens in a new window.
- 13SB-13N-ST-13R DXF Opens in a new window.
- 13SB-13N-ST-13F PDF Opens in a new window.
- 13SB-13N-ST-13F DXF Opens in a new window.
- 13SB-13N-WL-13R PDF Opens in a new window.
- 13SB-13N-WL-13R DXF Opens in a new window.
- 13SB-13N-WL-13F PDF Opens in a new window.
- 13SB-13N-WL-13F DXF Opens in a new window.
Certifications
