ELCO

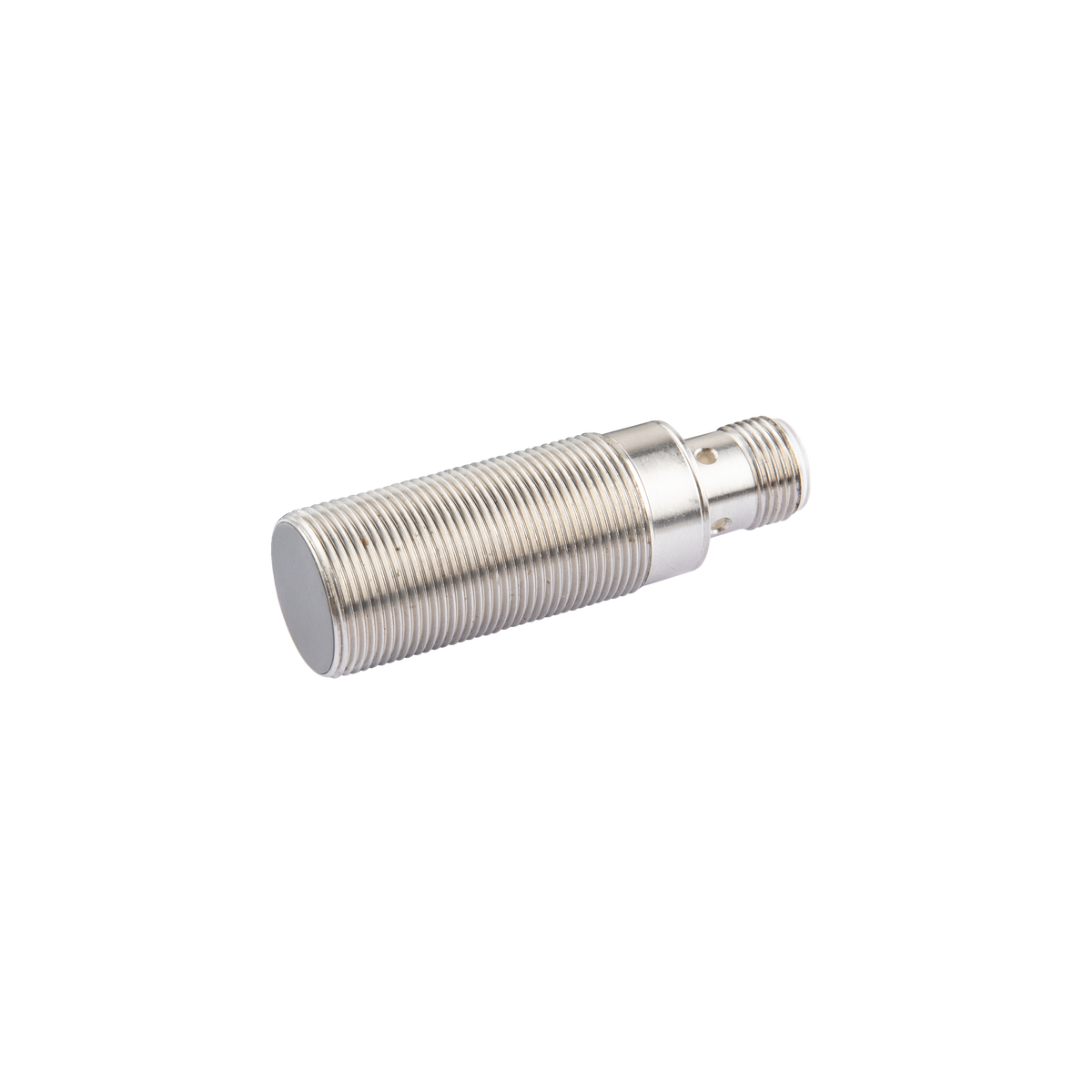

FI8XA-KM18-OP6L-Q12 Inductive Sensor
$99.74
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical stainless steel housing M18, Factor 1, anti-interference series , Switching distance 8mm, Flush, IP67, -25...70°C, PNP NO, M12 Connector
Specifications
MPN FI8XA-KM18-OP6L-Q12
| Series | XA Series |
|---|---|
| Feature | Factor 1 |
| Design | Thread design M18 |
| Switching distance | 8 mm |
| Installation type | flush |
| Output | PNP NO contact |
| Switching frequency | 1000 Hz |
| Connection type | M12 plug, 3-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M18 x 57 mm |
| Housing material | Stainless steel |
| Ambient temperature | -25 ... +75 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
