ELCO

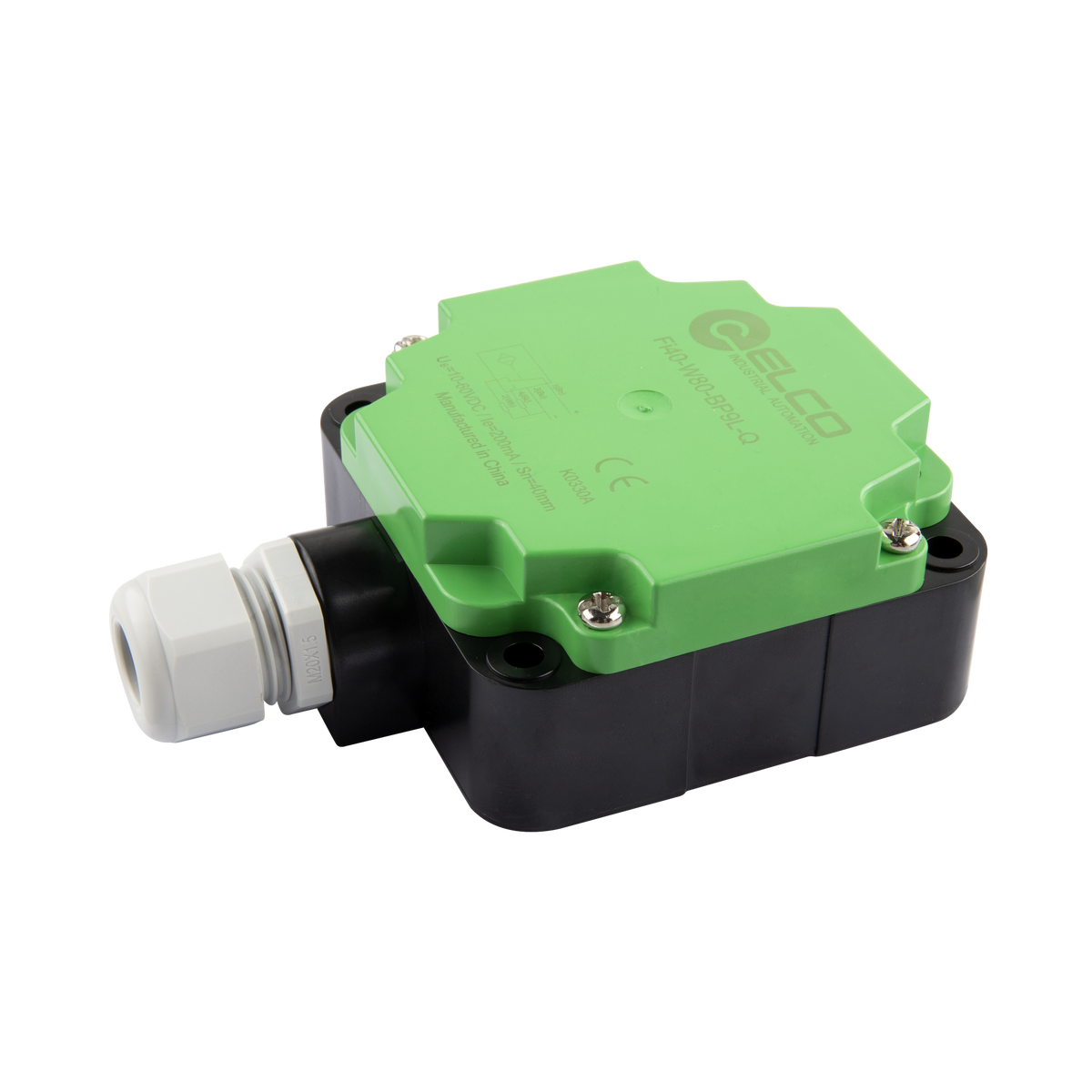

FI50-W80-OP6L-Q/TB40 Inductive Sensor
$241.91
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Rectangular housing W80, Switching distance 50mm, flush, IP67, -40...70°C, 10-30VDC, PNP NO, Screw terminal
Specifications
MPN FI50-W80-OP6L-Q/TB40
| Series | TB40 Series |
|---|---|
| Feature | Low temperature resistant (down to -40 °C) |
| Design | Cuboid design W80 |
| Switching distance | 50 mm |
| Installation type | flush |
| Output | PNP NO contact |
| Switching frequency | 50 Hz |
| Connection type | Terminals incl. cable gland |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | 80 x 80 x 40 mm |
| Housing material | Plastic (PBT) |
| Ambient temperature | -40 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
