ELCO

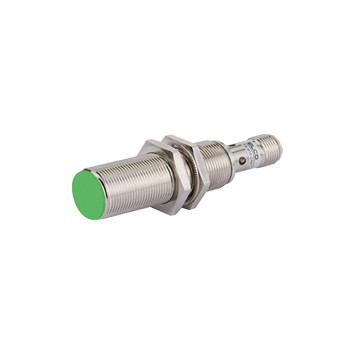

FI5-M18-OA41L-Q12/TB40 Inductive Sensor
$73.48
- Sensing range
- 5 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Threaded cylindrical housing M18, Switching distance 5 mm, Flush, IP67, -40 ... 70 °C, 20 ... 250 V AC/DC, 2 - wire AC/DC, NO, M12 connector
Specifications
MPN FI5-M18-OA41L-Q12/TB40
| Sensing range | 5 mm |
|---|---|
| Connection | M12, 4-pin |
| Product size | M18 x 75 mm |
| Ambient temperature | -40 … +70 ℃ |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 40 Hz |
| Supply voltage | 20 ... 250 V AC/DC |
| Output status | NO |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output type | DC / AC |
| External dimensions | M18 x 1 |
| Mounting | Flush |
| IP rating | IP67 |
