ELCO

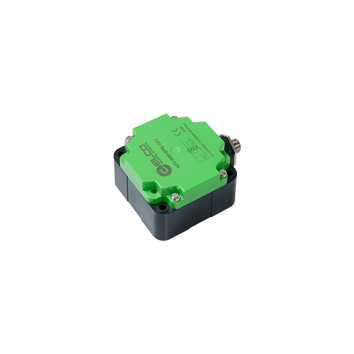

FI40-W80-VA41L-Q12/TB40 Inductive Sensor
$279.22
- Sensing range
- 40 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing W80, Switching distance 40 mm, Flush, IP67, -40 ... 70 °C, 20 ... 250 V AC/DC, 4-wire AC/DC, NC+NO,M12 connector
Specifications
MPN FI40-W80-VA41L-Q12/TB40
| Product size | 80 x 80 x 40 mm |
|---|---|
| Supply voltage | 20 ... 250 V AC/DC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output status | NO + NC |
| Sensing range | 40 mm |
| External dimensions | Square |
| Switching frequency | 20 Hz |
| Output type | DC / AC |
| Mounting | Flush |
| Ambient temperature | -40 … +70 ℃ |
| Connection | M12, 4-pin |
| Sensing surface material | PA |
| IP rating | IP67 |
| Housing material | PA |
