ELCO

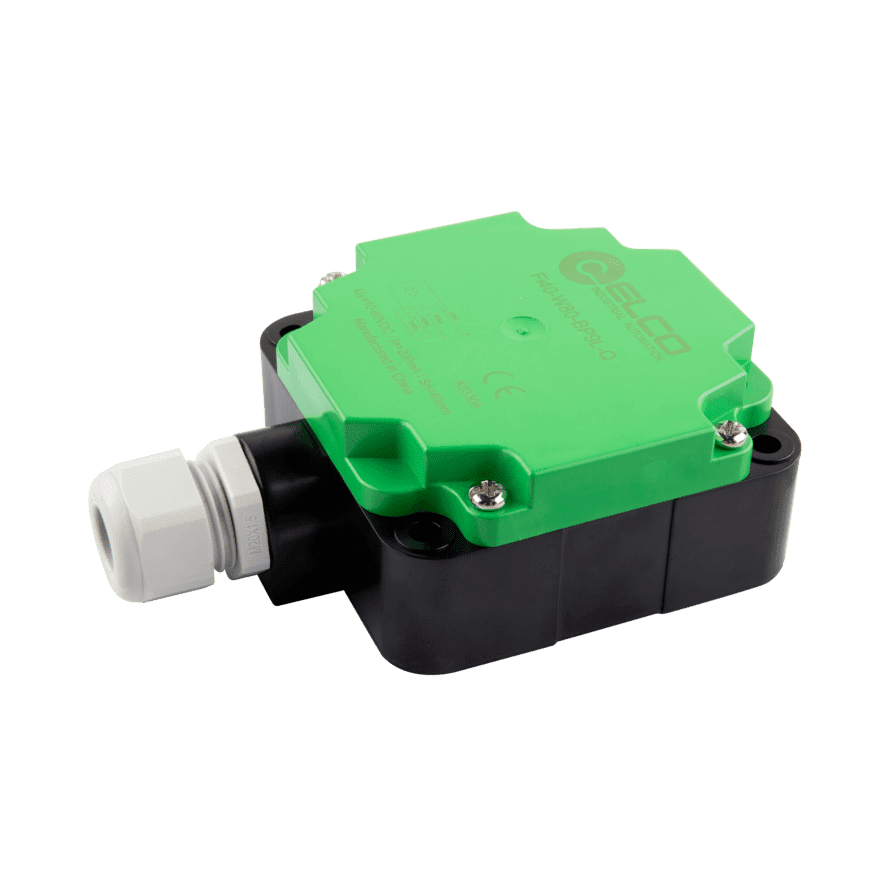

FI40-W80-ON6L-Q Inductive Sensor
$150.18
- Sensing range
- 40 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W80, Switching distance 40 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, 10-30 V DC, NPN NO, Screw terminal
Specifications
MPN FI40-W80-ON6L-Q
| Connection | Terminal |
|---|---|
| IP rating | IP67 |
| Sensing range | 40 mm |
| Load current | ≤ 200 mA |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NO |
| Housing material | PA |
| Sensing surface material | PA |
| Switching frequency | 50 Hz |
| Supply voltage | 10 ... 30 V DC |
| External dimensions | Square |
| Output type | NPN |
| Mounting | Flush |
| Product size | 80 x 80 x 40 mm |
