ELCO

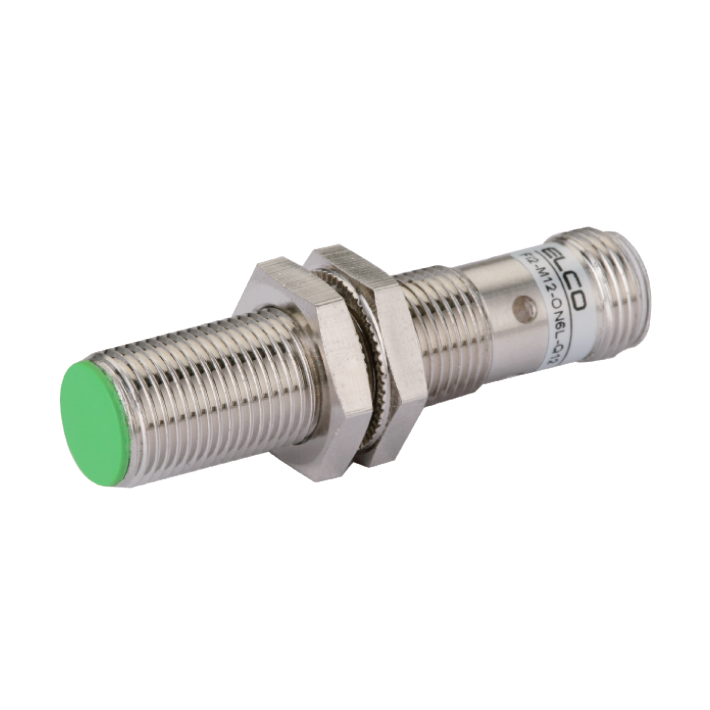

FI4-M12-CSA3L-Q12 Inductive Sensor
$27.27
- Supply voltage
- 20 ... 250 V AC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 4mm, flush, IP67, -25...70°C, 2-wire AC, M12 connector
Specifications
MPN FI4-M12-CSA3L-Q12
| Series | M Series |
|---|---|
| Design | Thread design M12 |
| Switching distance | 4 mm |
| Installation type | flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 40 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 20 ... 250 V AC |
| Dimensions | M12 x 74 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
