ELCO

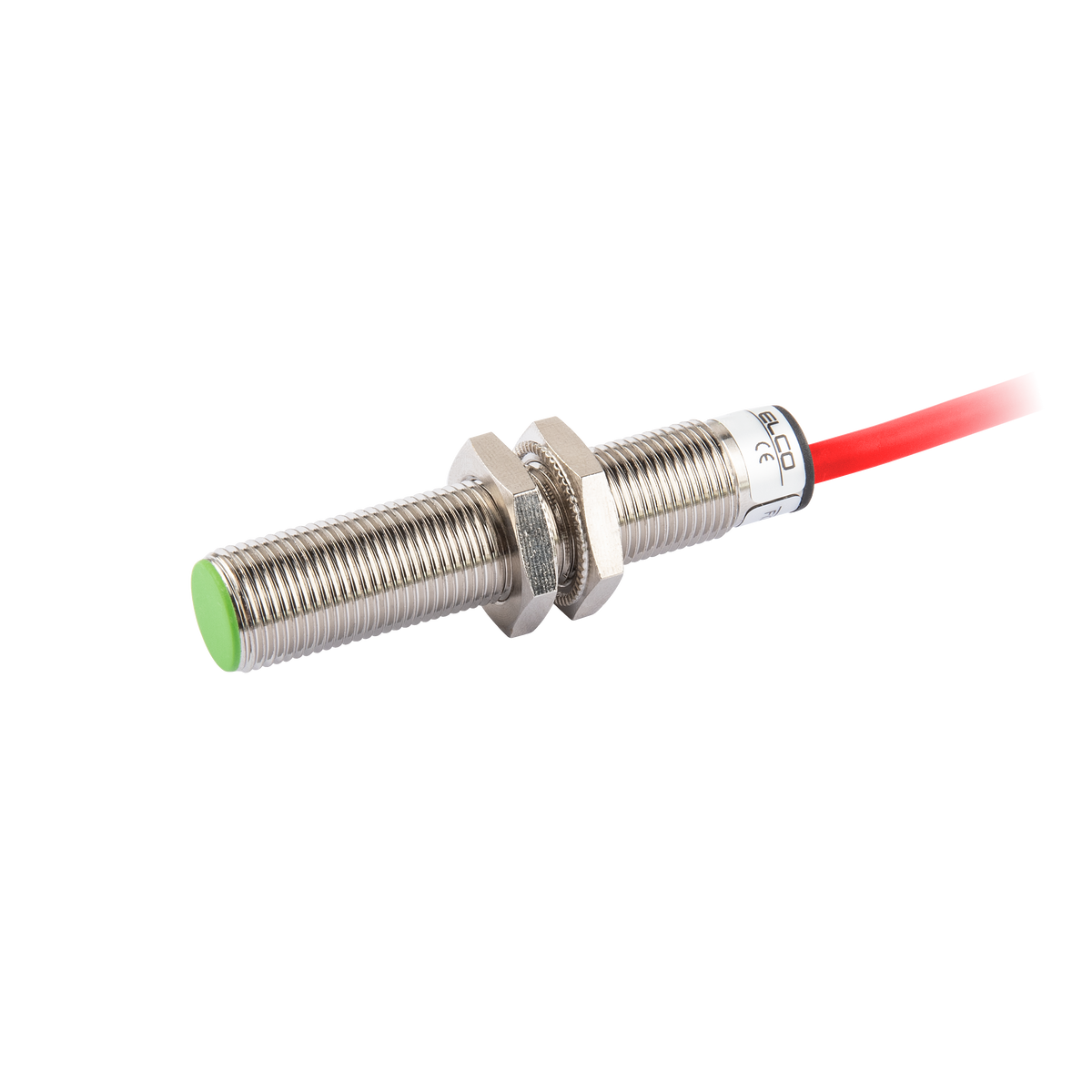

FI2-KM12-CA41L/T120 Inductive Sensor
$105.26
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical stainless steel housing M12, Switching distance 2mm, flush, IP67, -25...120°C, 2-wire AC/DC, Cable 2m
Specifications
MPN FI2-KM12-CA41L/T120
| Series | T120 series |
|---|---|
| Feature | High temperature resistant (up to +120 °C) |
| Design | Thread design M12 |
| Switching distance | 2 mm |
| Installation type | flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 40 Hz |
| Connection type | PTFE cable 2 m |
| Operating voltage | 20 ... 250 V AC/DC |
| Dimensions | M12 x 59.9 mm |
| Housing material | Stainless steel |
| Ambient temperature | -25 ... +120 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
