ELCO

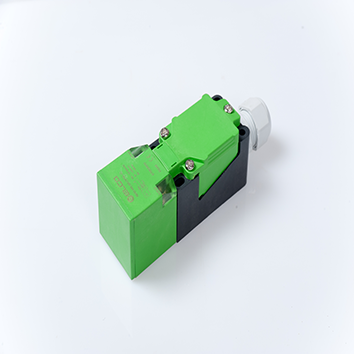

FI15-WL40-CP6L-Q/TB40 Inductive Sensor
$157.13
- Sensing range
- 15 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing WL40, Switching distance 15 mm, Flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, PNP NC, Screw terminals
Specifications
MPN FI15-WL40-CP6L-Q/TB40
| IP rating | IP67 |
|---|---|
| Housing material | PA |
| Connection | Terminal |
| Sensing range | 15 mm |
| External dimensions | Square |
| Output status | NC |
| Switching frequency | 150 Hz |
| Sensing surface material | PA |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -40 … +70 ℃ |
| Load current | ≤ 200 mA |
| Output type | PNP |
| Mounting | Flush |
| Product size | 115 x 40 x 40 mm |
