ELCO

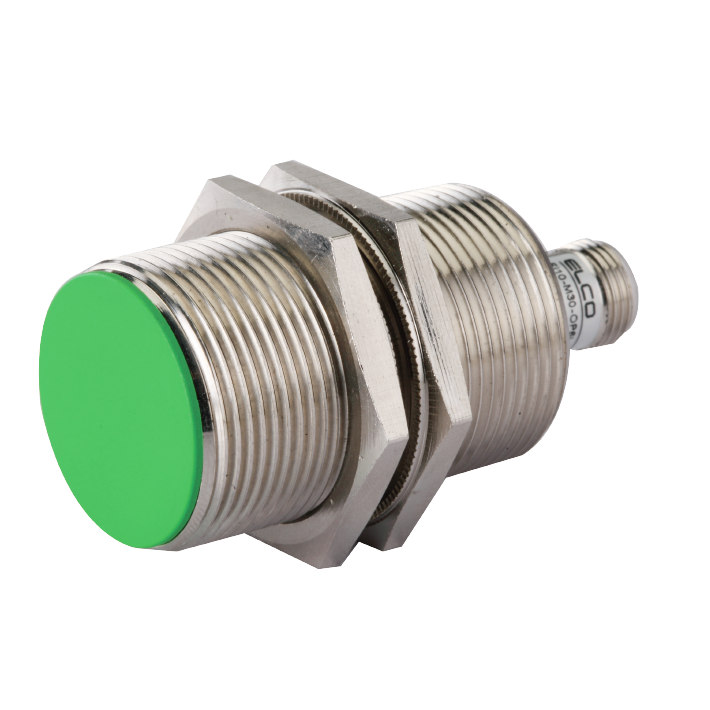

FI15-M30-ON6L-Q12 Inductive Sensor
$41.92
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive sensor, Threaded cylindrical housing M30, Switching distance 10mm, flush, IP67, -25...70°C, NPN NO, M12 connector
Specifications
MPN FI15-M30-ON6L-Q12
| Series | M Series |
|---|---|
| Design | Thread design M30 |
| Switching distance | 15 mm |
| Installation type | flush |
| Output | NPN NO contact |
| Switching frequency | 350 Hz |
| Connection type | M12 plug, 3-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M30 x 62 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
