ELCO

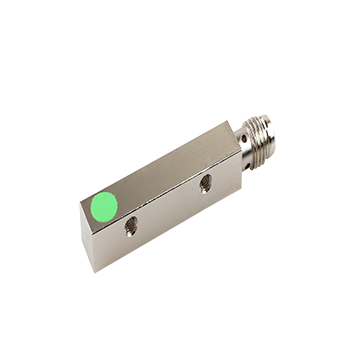

FI1.5-MQ08-ON6L-Q8 Inductive Sensor
$69.09
- Sensing range
- 1.5 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular metal housing MQ08, Switching distance 1.5 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO, M8 connector
Specifications
MPN FI1.5-MQ08-ON6L-Q8
| Connection | Connector |
|---|---|
| Product size | 50 x 8 x 8 mm |
| Ambient temperature | -25 … +70 ℃ |
| Sensing range | 1.5 mm |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NO |
| Output type | NPN |
| External dimensions | Square |
| Mounting | Flush |
| IP rating | IP67 |
