ELCO

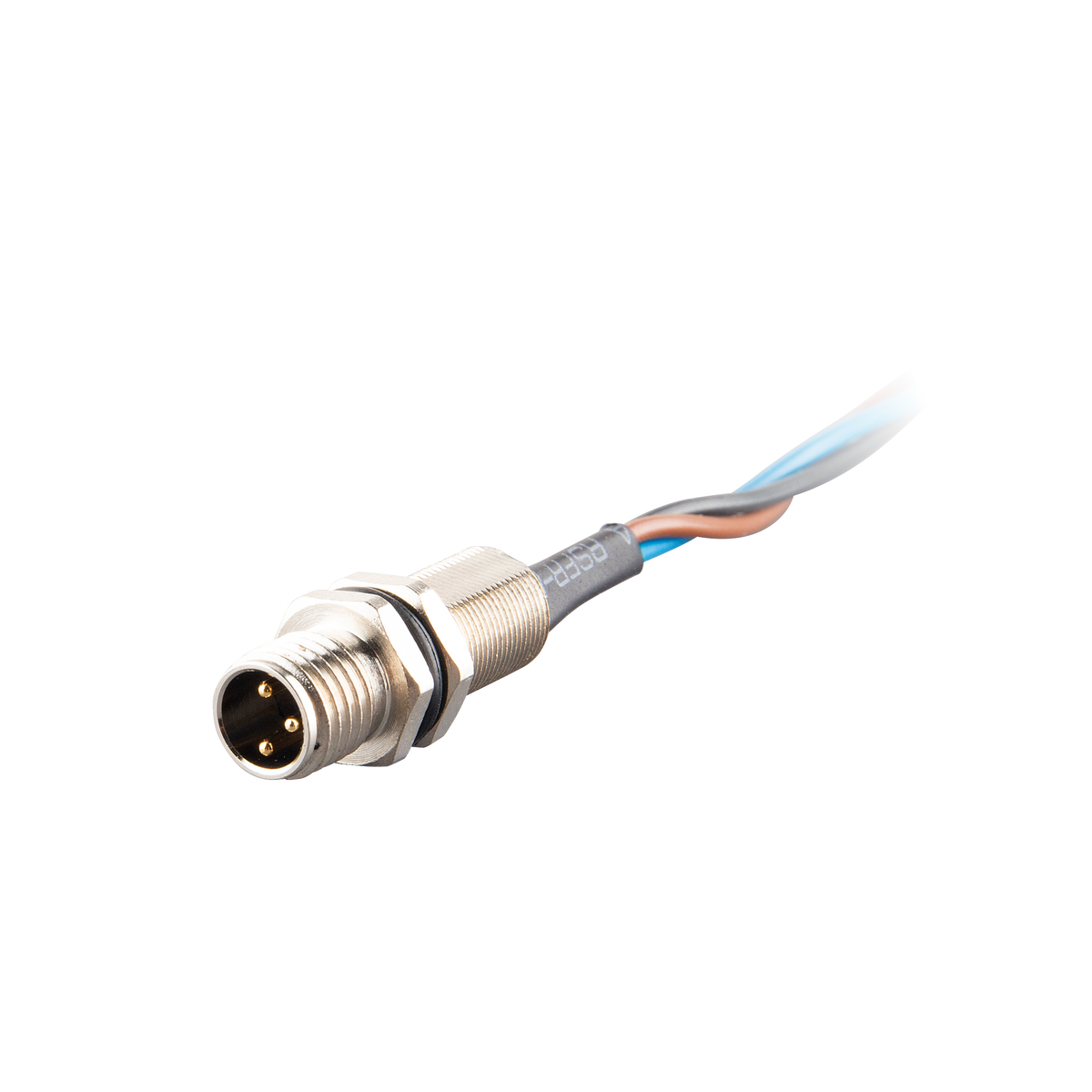

F8.3-1.5/PP/M8/F Receptacle
$19.14
- Connector
- M8, plug, 3-pin, straight
- Coding
- A-coded
- Cable length
- 1.50 m
- IP rating
- IP67
Product information
Technical details
Flange Connector Male, M8, 3-pole, front panel installation PP 3x0.25mm², 1.5m
Specifications
MPN F8.3-1.5/PP/M8/F
| Head design 1 | M8, plug, 3-pin, straight |
|---|---|
| Coding | A-coded |
| Mounting type | M8 front wall |
| Use case | I/O Connector |
| Cable type | PUR |
| Cable cross-section | 0.25 mm² |
| Cable length [m] | 1.50 |
| Shielding | unshielded |
| Connection type | Strands |
| Ambient temperature | -25 ... +90 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
