ELCO

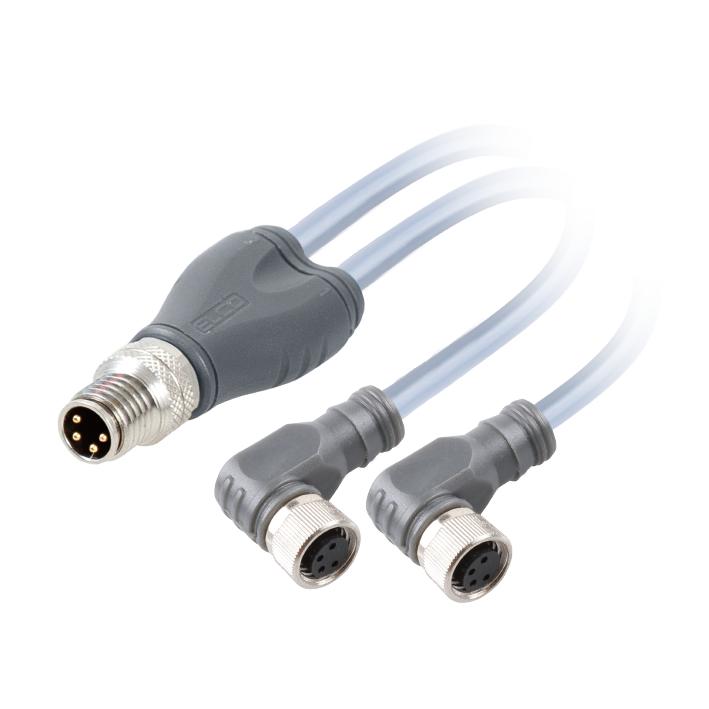

ECS-E2CBO8.3-0.3/0.3/L Y-Splitter
$28.57
- Connector
- M8, socket, 4-pin, straight
- Coding
- A-coded
- Cable length
- 0.30 m
- IP rating
- IP67
Product information
Technical details
Y Splitter Female straight, M8, 4-pole - 2x Female angled, M8, 3-pole, LED, PNP PVC grey 3x0.25mm², 0.3m
Specifications
MPN ECS-E2CBO8.3-0.3/0.3/L
| Head design 1 | M8, socket, 4-pin, straight |
|---|---|
| Head design 2 | M8, socket, 3-pin, angled |
| Head design 3 | M8, socket, 3-pin, angled |
| Coding | A-coded |
| Use case | I/O Connector |
| Cable type | PVC |
| Cable cross-section | 0.25 mm² |
| Cable length [m] | 0.30 |
| Wiring | PNP, LED |
| Coat colour | grey |
| Shielding | unshielded |
| Ambient temperature | -30 ... +90 °C |
| Protection class | IP67 |
| Certificates | UL, CE, RoHS, REACH |
