ELCO

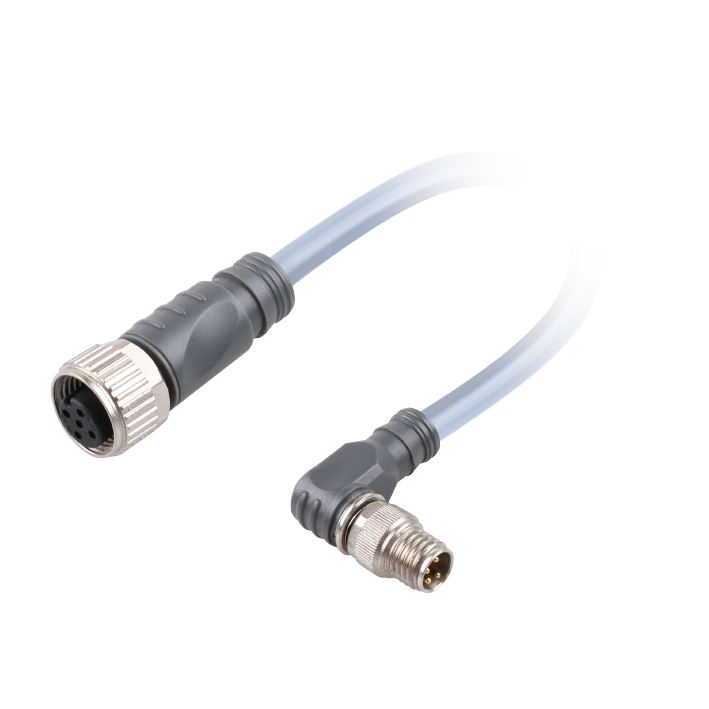

CO12.4-25-CB8.4/LN/P Double-Ended Cordset
$107.79
- Connector
- M12, socket, 4-pin, straight
- Coding
- A-coded
- Cable length
- 25.00 m
- IP rating
- IP67
Product information
Technical details
Pre-wired I/O Connector Female straight, M12, 4-pole - Male angled, M8, 4-pole PUR/PP grey 4x0.34mm², 25m 5mio. bending cycles
Specifications
MPN CO12.4-25-CB8.4/LN/P
| Head design 1 | M12, socket, 4-pin, straight |
|---|---|
| Head design 2 | M8, plug, 4-pin, angled |
| Coding | A-coded |
| Use case | I/O Connector |
| Cable type | PUR |
| Cable cross-section | 0.34 mm² |
| Cable length [m] | 25.00 |
| Wiring | NPN, LED |
| Coat colour | grey |
| Shielding | unshielded |
| Ambient temperature | -30 ... +90 °C |
| Protection class | IP67 |
| Certificates | UL, CE, RoHS, REACH |
