ELCO
CBO8.3-3-C12.3/L Sensor-Actuator Cordset
$20.27
- Connector
- M8
- Coding
- A-code
- Cable length
- 3 m
- IP rating
- IP67
Product information
Technical details

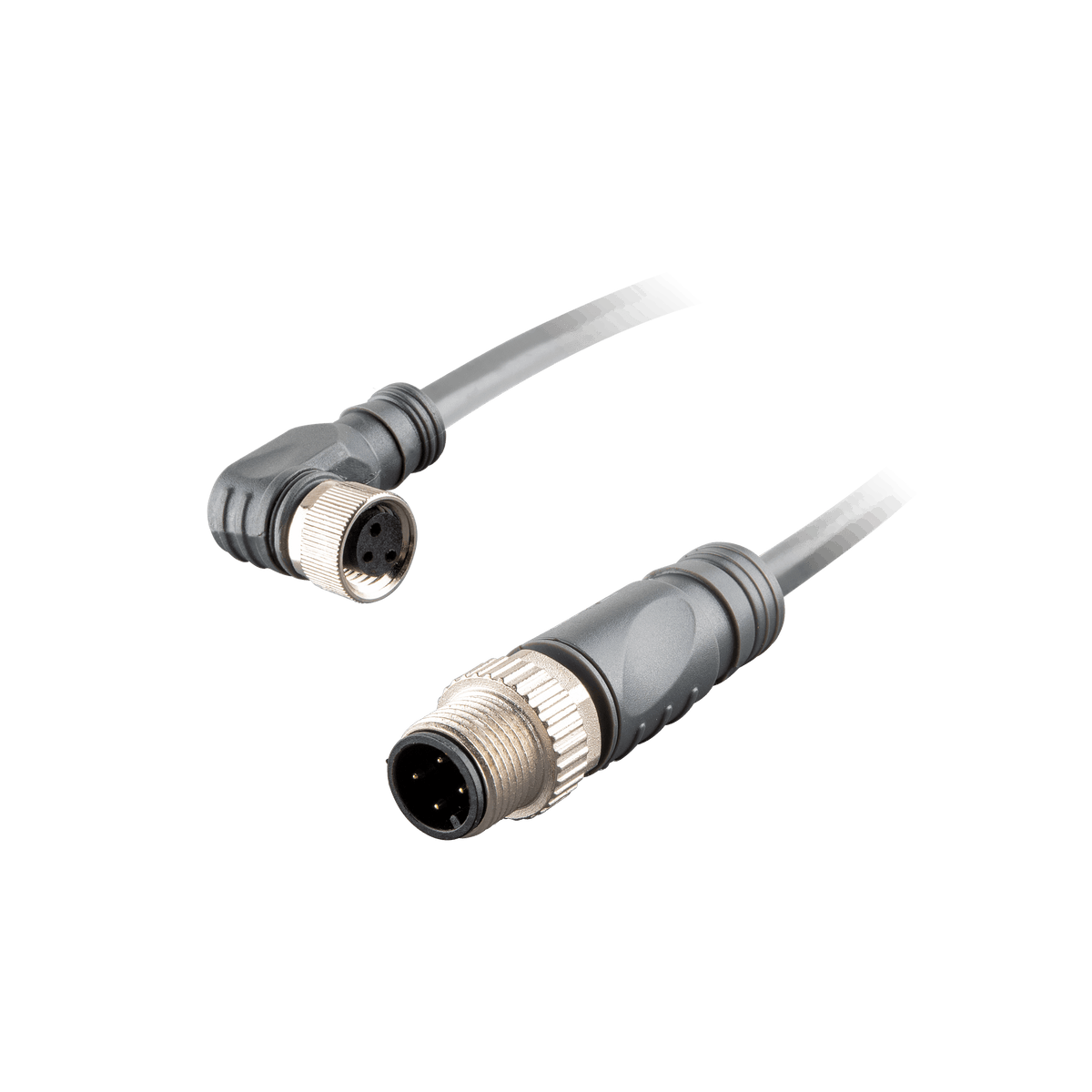

Sensor-Actuator Cordset, Double-end, M8 A-code 3-pin Angled Female, With PNP LED, to M12 A-code 3-pin Straight Male, With PVC grey jacket 3 × 0.25 mm² (24 AWG) Cable, 3 m
Specifications
MPN CBO8.3-3-C12.3/L
| Wire cross-section | 0.25 mm² (24 AWG) |
|---|---|
| Material contact | TPU |
| Nut/bolt material | Zinc die casting |
| Rated voltage | 30 V DC |
| Cable jacket material | PVC |
| The head material | TPU |
| Coating contact material | Gold plated copper |
| LED indicator | PNP |
| Rated current | 4 A |
| Cable jacket color | grey |
| IP rating | IP67 |
| Wire insulation color | BN, BU, BK |
| Shielded/Unshielded | NO |
| Drag chain | Fixed installation |
| Wire insulation material | PVC |
| Cable length | 3 m |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Head 2 Shape | Straight |
| Product type | Sensor-Actuator Cordset |
| Termination type | Double-end |
| Head 1 Type | M8 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 3 |
| Head 1 Shape | Angled |
| Head 1 Gender | Female |
| Head 2 Type | M12 |
| Head 2 Coding | A-code |
| Head 2 Number of contacts | 3 |
| Head 2 Gender | Male |
