ELCO

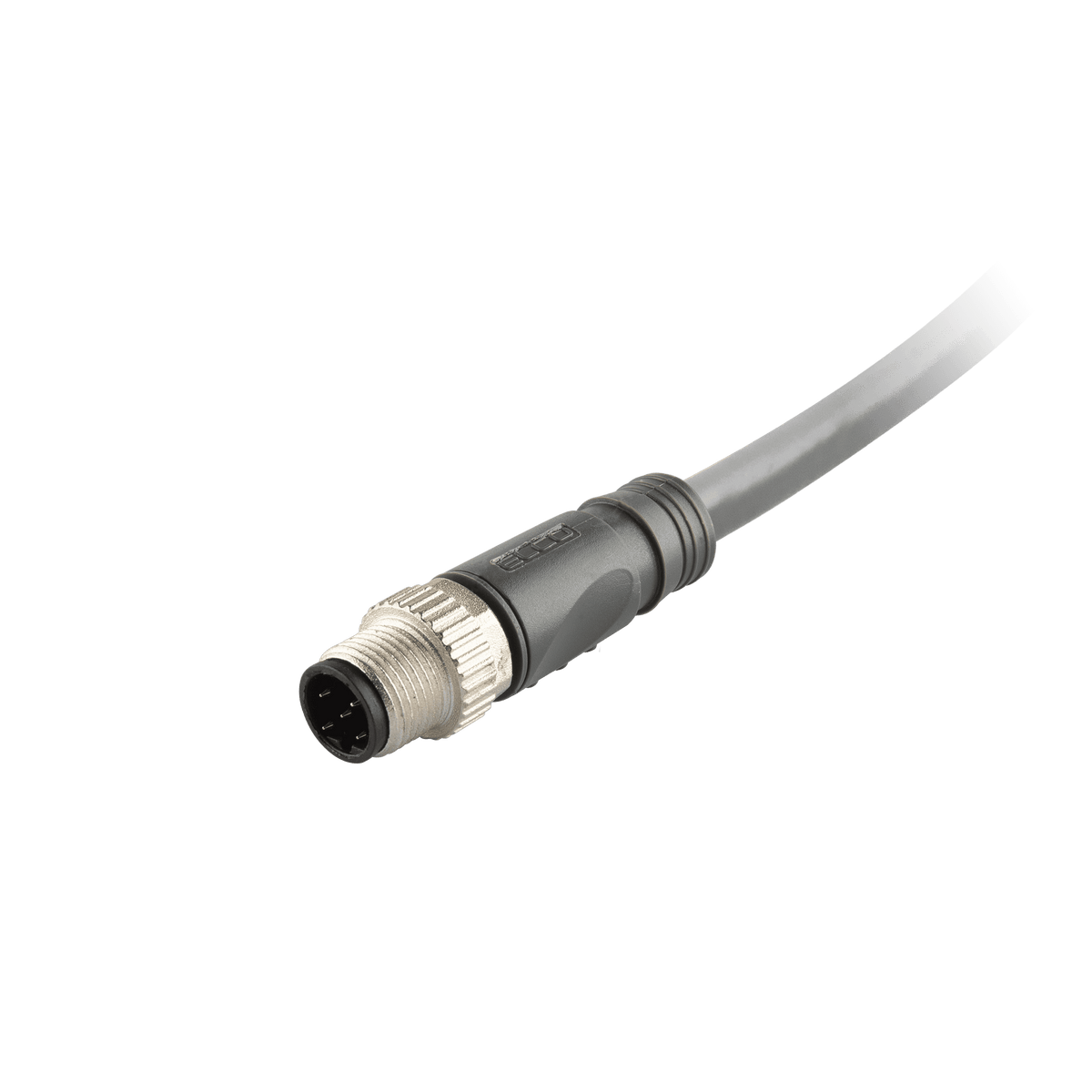

C12.5-6 Sensor-Actuator Cordset
$19.00
- Connector
- M12
- Coding
- A-code
- Cable length
- 6 m
- IP rating
- IP67
Product information
Technical details
Sensor-Actuator Cordset, Single-end, M12 A-code 5-pin Straight Male, With PVC grey jacket 5 × 0.34 mm² (22 AWG) Cable, 6 m
Specifications
MPN C12.5-6
| Drag chain | Fixed installation |
|---|---|
| Cable length | 6 m |
| Wire insulation color | BN, WH, BU, BK,GY |
| IP rating | IP67 |
| Cable jacket material | PVC |
| Wire insulation material | PVC |
| The head material | TPU |
| Coating contact material | Gold plated copper |
| Shielded/Unshielded | NO |
| Material contact | TPU |
| Nut/bolt material | Zinc die casting |
| Rated voltage | 250 V AC/DC |
| Cable jacket color | grey |
| Rated current | 4 A |
| LED indicator | NO |
| Resistant to welding sparks | NO |
| Wire cross-section | 0.34 mm² (22 AWG) |
| Flex & Torsion | NO |
| Termination type | Single-end |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 5 |
| Head 1 Shape | Straight |
| Head 1 Gender | Male |
| Product type | Sensor-Actuator Cordset |
