Saginaw Control & Engineering
SCE-S201005LG - 1DR IMS Enclosure
- Height
- 78.74"
- Width
- 39.37"
- Depth
- 18.00"
- Est. Ship Weight
- 380.00 lbs
Product information
Technical details
1DR IMS Enclosure
Category: Modular Enclosures > Industrial Modular System (IMS) Enclosures > Industrial Modular System (IMS) Single Door Enclosures
Specifications
| Part Number | SCE-S201005LG |
|---|---|
| Description | 1DR IMS Enclosure |
| Height | 78.74" |
| Width | 39.37" |
| Depth | 18.00" |
| Price Code | I1 |
| List Price | $2,335.48 |
| Catalog Page | 184 |
| Est. Ship Weight | 380.00 lbs |
Construction
- 0.104 In. carbon steel.
- Seams continously welded and ground smooth.
- Flange trough collar around all sides of door opening
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners for extra rigidity.

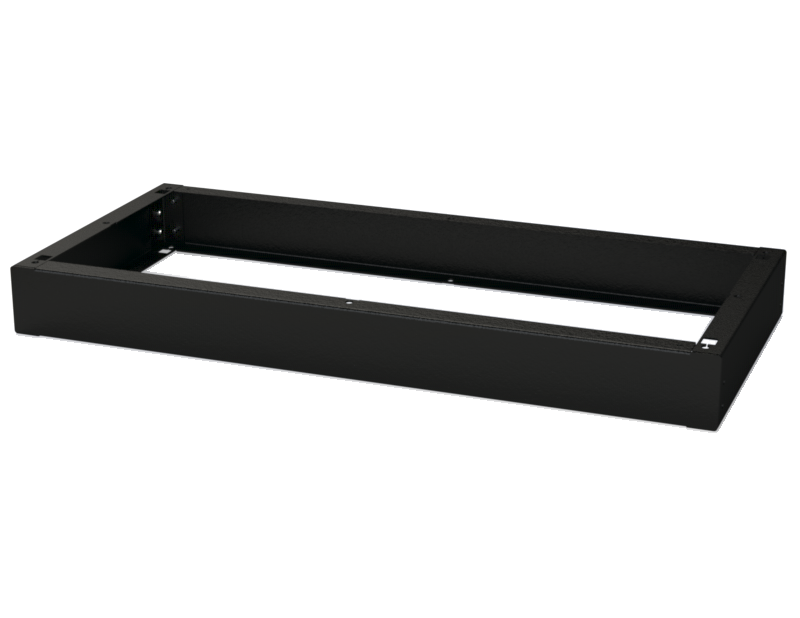

- Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
- Concealed hinges.
- Removable and inchangeable doors.
- Black zinc die cast padlocking swing handle.
- 3-point latching mechanism.
- Large removable print pocket.
- Mounting channels provided in top and bottom of enclosure.
- Pour in place oil & water resistant gasket
- Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
- Ground stud on door & body.
- Gland plate provided in bottom of enclosure.
Application
Can be bolted together in any desired multiple door arrangement. Designed to house electrical equipment and provide protection from dust, dirt, water and oil. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -
Finish
Powder coated RAL 7035 gray inside and out.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
