Saginaw Control & Engineering

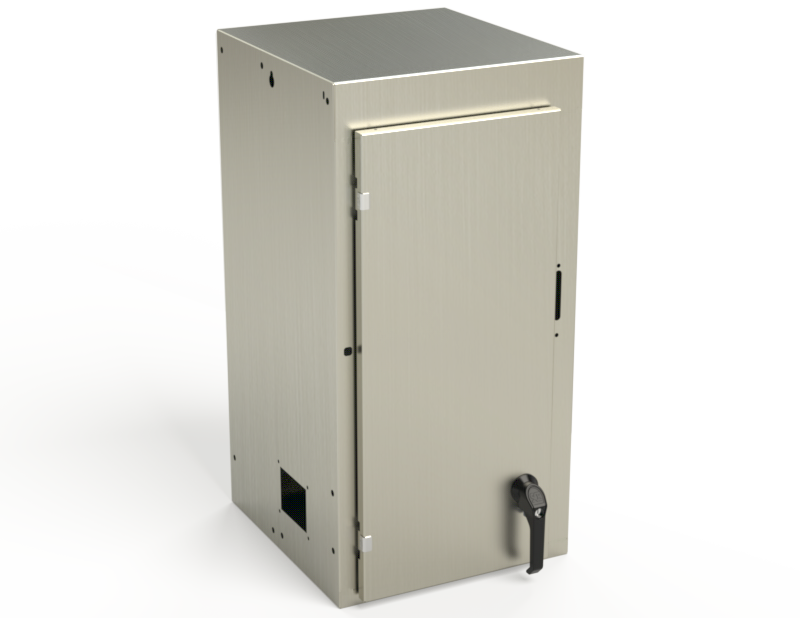

SCE-NEXD18SS - External disconnect 30/200 AMP
$2,169.49
- Height
- 34.00"
- Width
- 17.00"
- Depth
- 18.00"
- Est. Ship Weight
- 68.00 lbs
Product information
Technical details
External disconnect 30/200 AMP
Specifications
| Part Number | SCE-NEXD18SS |
|---|---|
| Description | External disconnect 30/200 AMP |
| Height | 34.00" |
| Width | 17.00" |
| Depth | 18.00" |
| Price Code | P2 |
| List Price | $2,169.49 |
| Catalog Page | 463 |
| Est. Ship Weight | 68.00 lbs |
| Provisions For | 30/200 AMP Disconnect D1 Cutout |
Construction
- 0.075 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket.
- Collar studs provided for mounting panels.
- Concealed hinge.
- Black die cast coinproof/padlocking handle.
- Mounting hardware included.
Application
Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used with an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components of the main enclosure.
Finish
#4 brushed finish on all exterior surfaces.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
