Saginaw Control & Engineering

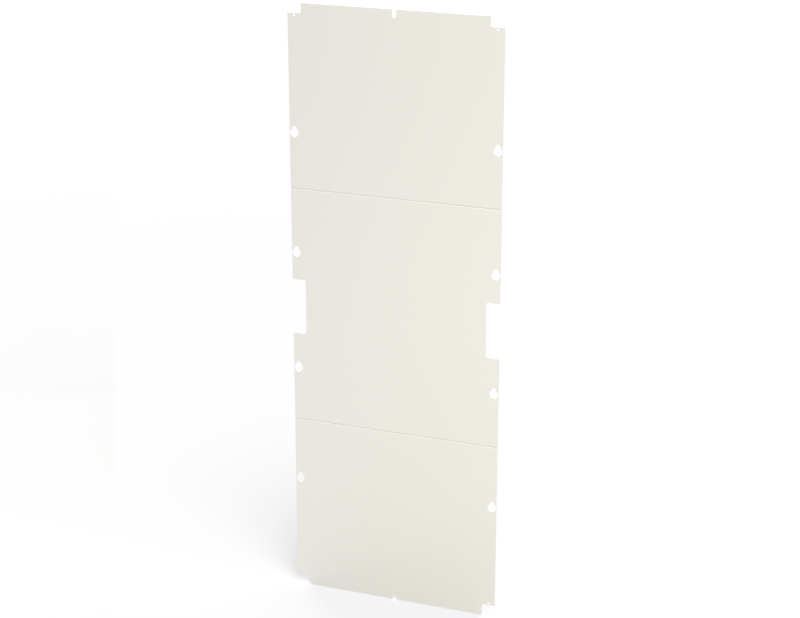

SCE-NBP6824 - Barrier Plate
$222.89
- Height
- 66.00"
- Width
- 23.38"
- Depth
- 0.44"
- Est. Ship Weight
- 36.00 lbs
Product information
Technical details
Barrier Plate
Specifications
| Part Number | SCE-NBP6824 |
|---|---|
| Description | Barrier Plate |
| Height | 66.00" |
| Width | 23.38" |
| Depth | 0.44" |
| Price Code | P2 |
| List Price | $222.89 |
| Catalog Page | 182 |
| Est. Ship Weight | 36.00 lbs |
Application
Designed to be installed on the back panel of NextGen Free-Standing enclosures to provide protection against Arc Flash the height of the sub-plate, and allowing separation of the high voltage and low voltage within the enclosure. Made of heavy gauge carbon steel and powder coated white.
Finish
Powder Coated White.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
