SCE-N68XM6618 - 2DR Enc. Both sides Solid w/ Disc.

$3,359.80

Height: 68.00"
Width: 65.75"
Depth: 18.00"
Est. Ship Weight: 725.00 lbs

Request freight quote

Ships by freight. Request a quote and we'll confirm shipping and lead time.

2DR Enc. Both sides Solid w/ Disc.

Category: NextGen Free-Standing > NextGen Free-Standing Enclosures > NextGen Free-Standing Two-Door Enclosures Both Sides Solid w/ RH Disc. Cutout

Specifications

Part Number	SCE-N68XM6618
Description	2DR Enc. Both sides Solid w/ Disc.
Height	68.00"
Width	65.75"
Depth	18.00"
Price Code	A2
List Price	$3,359.80
Catalog Page	160
Est. Ship Weight	725.00 lbs

Construction

Both sides solid.
Provisions for flange mount disconnect.
.104 in carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Removable centerposts permit easy panel installation.
Black zinc die cast coinproof/padlocking handle on primary door with black zinc die cast padlocking handle on secondary doors.
3-point latching mechanism.
End of latch rods have ramp shoes for easier door closing.
Panel supports.
Pour-in-place oil & water resistant gasket.

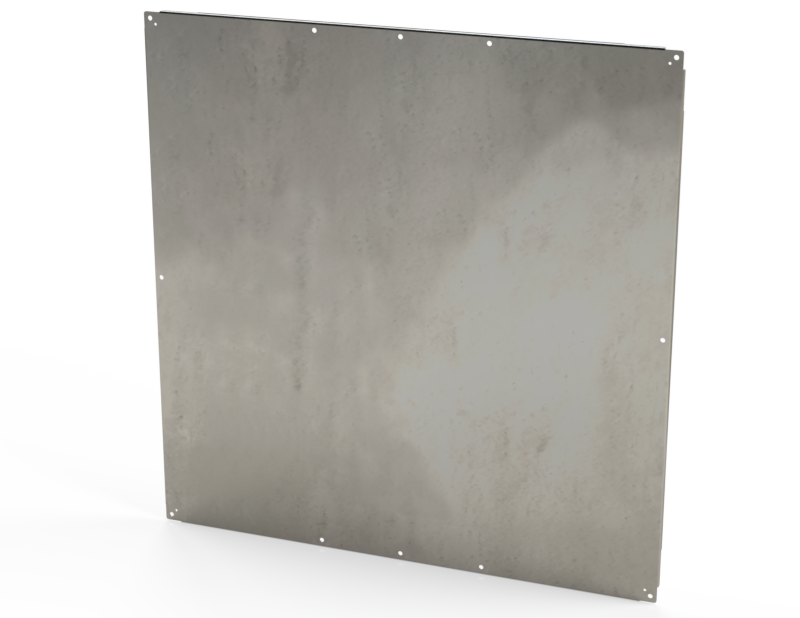

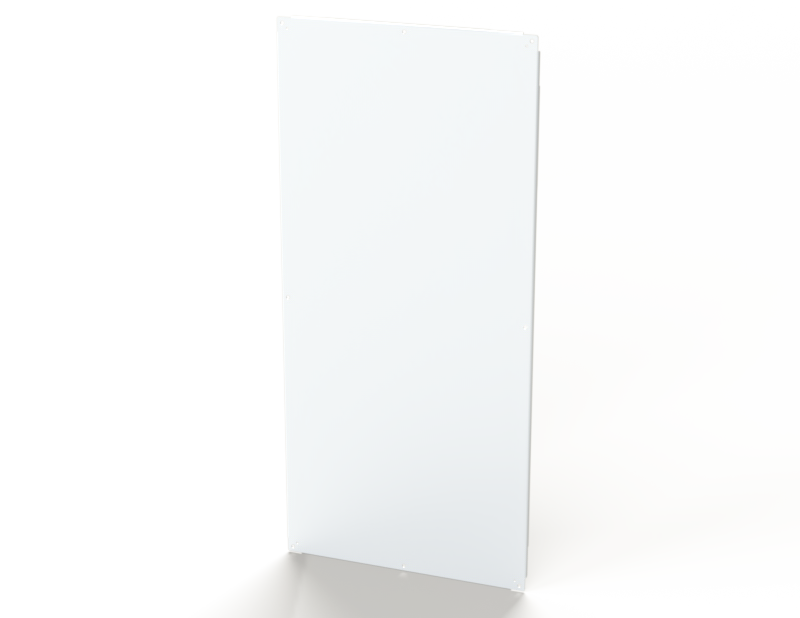

Optional panels mount to collar studs.
Ground stud on door and body.
Provisions for light kit.
Holes plug provided to seal holes in bottom of enclosure.
Mechanical interlock provided for two-door or more.

Application

Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for 30 to 200 amp Cable Operated Disconnect switch (or circuit breaker). The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.
