SCE-N68L7818 - 2DR Enc. Left Bay - Right Side Open

$3,648.30

Height: 68.00"
Width: 77.75"
Depth: 18.00"
Est. Ship Weight: 690.00 lbs

Request freight quote

Ships by freight. Request a quote and we'll confirm shipping and lead time.

2DR Enc. Left Bay - Right Side Open

Category: NextGen Free-Standing > NextGen Free-Standing - Left Bay > NextGen Free-Standing Two-Door Enclosures Left Bay - Right Side Open

Specifications

Part Number	SCE-N68L7818
Description	2DR Enc. Left Bay - Right Side Open
Height	68.00"
Width	77.75"
Depth	18.00"
Price Code	A2
List Price	$3,648.30
Catalog Page	178
Est. Ship Weight	690.00 lbs

Construction

.104 in carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
Black zinc die cast padlocking handles on doors.
3-point latching mechanism.
End of latch rods have ramp shoes for easier door closing.
Panel supports.
Pour-in-place oil & water resistant gasket.

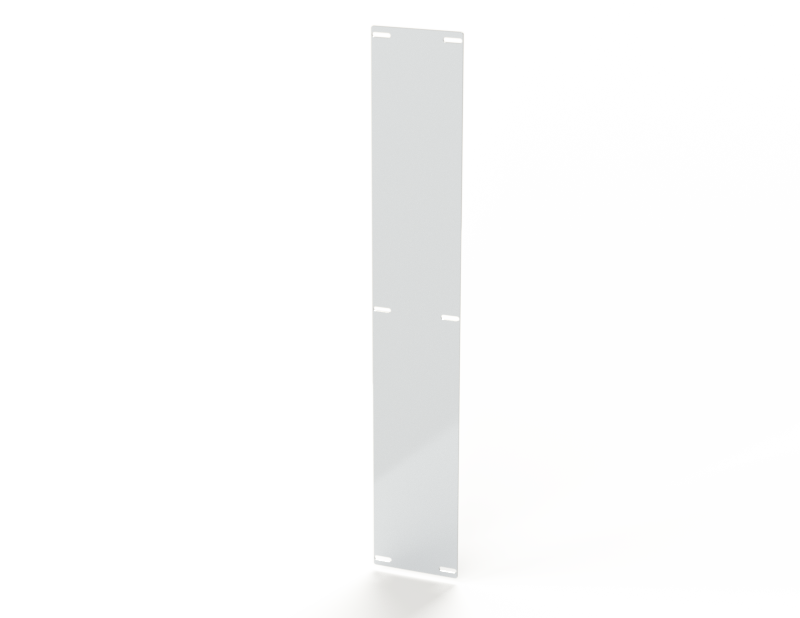

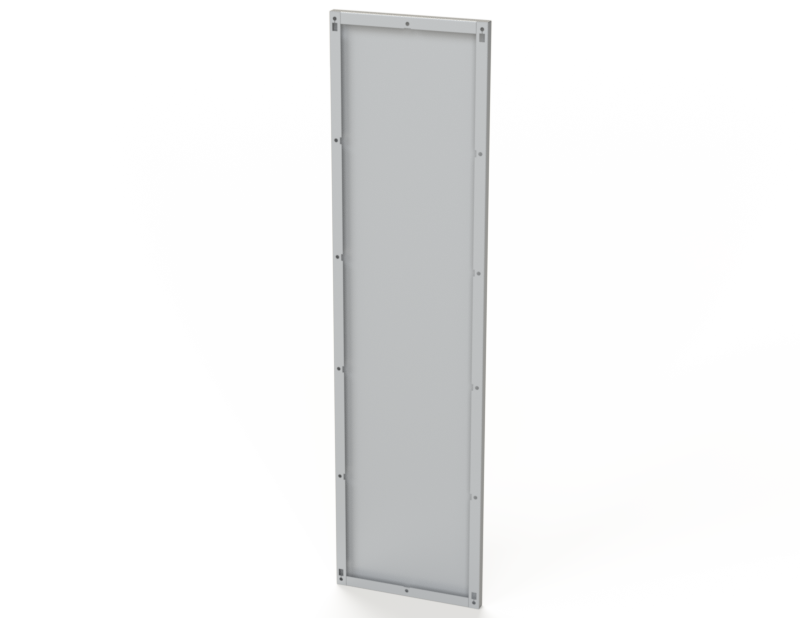

Optional panels mount to collar studs.
Ground stud on door and body.

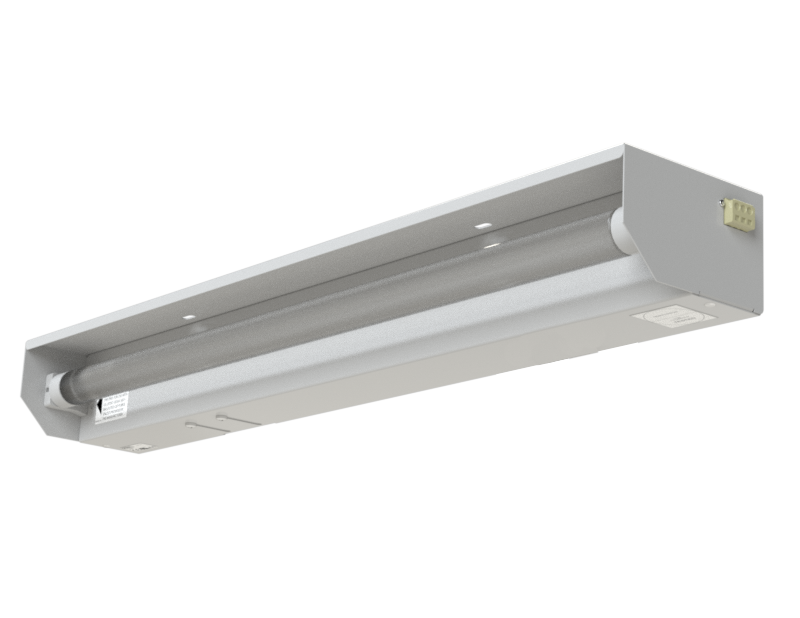

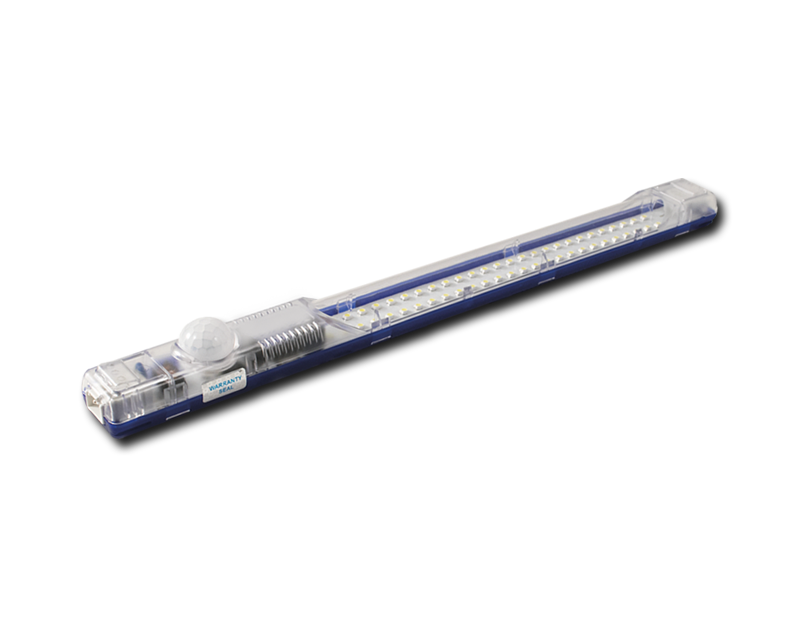

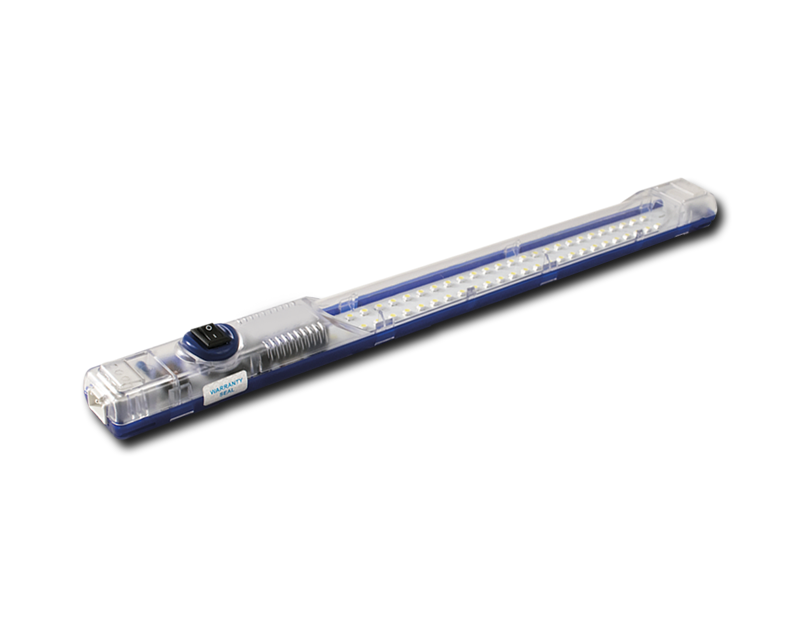

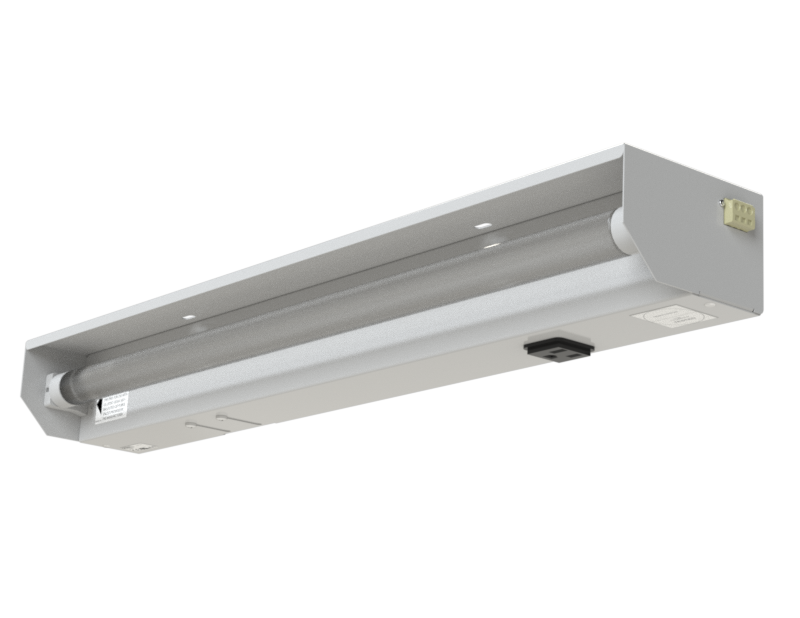

Provisions for light kit.
Holes plug provided to seal holes in bottom of enclosure.
Enclosures include provisions for system expansion.

Application

Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.
