Saginaw Control & Engineering

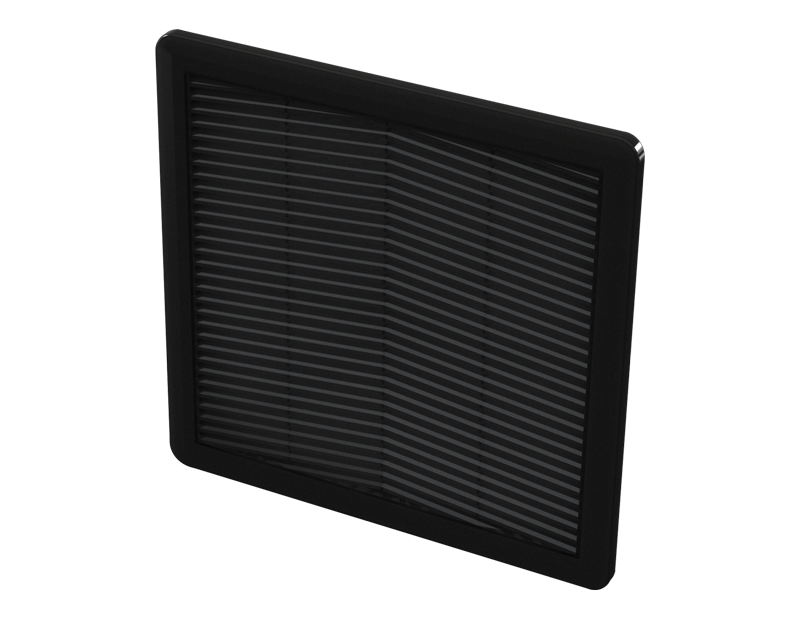

SCE-N12FGA1010 - Filter & Grille Assy. (Black)
$108.53
- Height
- 12.80"
- Width
- 12.80"
- Depth
- 1.34"
- Est. Ship Weight
- 3.00 lbs
Product information
Technical details
Filter & Grille Assy. (Black)
Specifications
| Part Number | SCE-N12FGA1010 |
|---|---|
| Description | Filter & Grille Assy. (Black) |
| Height | 12.80" |
| Width | 12.80" |
| Depth | 1.34" |
| Price Code | P1 |
| List Price | $108.53 |
| Catalog Page | 398 |
| Est. Ship Weight | 3.00 lbs |
| Model | 4000 40003-S |
Application
Easy to install snap fit design for use on air discharge side of fan package for NEMA 1 and 12 applications. Housing and grille are made of black heat resistant (ABS-FR), self-extinguishing material. Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing.
Industry Standards - (IS24)
- UL Component Recognized
Notes
Type 12 - IEC 60529 IP 54 cULus File Component Recognized E358386 cULus Listed E498756
