Saginaw Control & Engineering

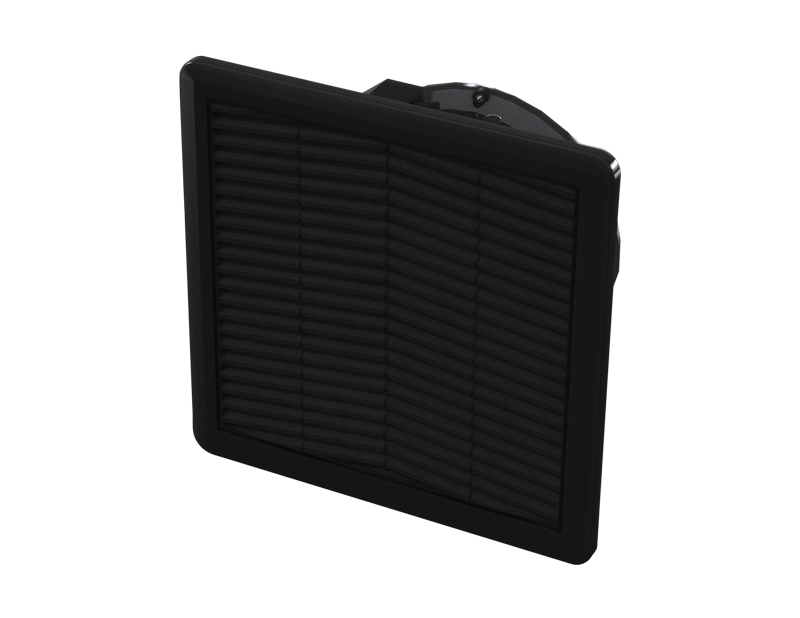

SCE-N12FA66-230 - Obsolete Filter Fan. (230v)
$0.00
- Height
- 9.84"
- Width
- 9.84"
- Depth
- 4.40"
- Est. Ship Weight
- 4.00 lbs
Product information
Technical details
Obsolete Filter Fan. (230v)
Specifications
| Part Number | SCE-N12FA66-230 |
|---|---|
| Description | Obsolete Filter Fan. (230v) |
| Height | 9.84" |
| Width | 9.84" |
| Depth | 4.40" |
| Price Code | P1 |
| List Price | Call for pricing. |
| Catalog Page | 398 |
| Est. Ship Weight | 4.00 lbs |
| Model | 4620A4033-S |
| Voltage | 50/60hz |
| CFM | 135.4/158.9 |
| Current (A) | 0.18 / 0.19 |
Application
Easy to install snap fit design for use in enclosures that require cooling but have limited space in NEMA 1 and 12 applications. Housing and grille are made of black heat resistant (ABS-FR), self-extinguishing material. Fans are available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC. Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing.
Industry Standards - (IS24)
- UL Component Recognized
Notes
Type 12 - IEC 60529 IP 54 cULus Listed E498756 cULus File Component Recognized E358386 Motor w/ Thermal Protection
