Saginaw Control & Engineering

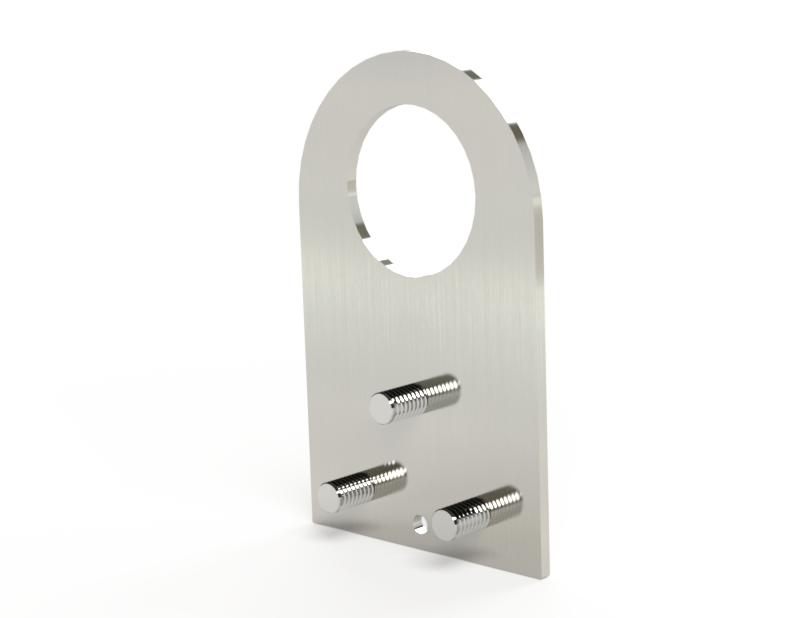

SCE-LLB5SS - Lifting Lug, S.S. Bolt On
$51.20
- Height
- 4.81"
- Width
- 3.00"
- Depth
- 0.10"
- Est. Ship Weight
- 0.92 lbs
Product information
Technical details
Lifting Lug, S.S. Bolt On
Specifications
| Part Number | SCE-LLB5SS |
|---|---|
| Description | Lifting Lug, S.S. Bolt On |
| Height | 4.81" |
| Width | 3.00" |
| Depth | 0.10" |
| Price Code | P2 |
| List Price | $51.20 |
| Catalog Page | 436 |
| Est. Ship Weight | 0.92 lbs |
Application
Lifting lugs are designed to be mounted to the left and right side of a standard wall-mount type enclosure for easy handling of fully wired enclosures. Mounting hardware is included. UL Recognized Sealing washers supplied to maintain UL ratings of Type 3R, 4, 4X and 12.
Finish
SCE-LLB5 - Steel, Zinc Plated SCE-LLB5SS - 316 Stainless Steel with #4 Brushed finish SCE-LLB7 - Steel, Powder Coated White
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Notes
SCE-LLB7 for use with Vented 3R Enclosures
