SCE-L9N126LP - Nema-1 Enclosure
$175.57
- Height
- 9.00"
- Width
- 12.00"
- Depth
- 6.00"
- Est. Ship Weight
- 10.25 lbs
Product information
Technical details
Nema-1 Enclosure
Category: Wall-Mount Enclosures > General Purpose Type 1 Trough Enclosures
Specifications
| Part Number | SCE-L9N126LP |
|---|---|
| Description | Nema-1 Enclosure |
| Height | 9.00" |
| Width | 12.00" |
| Depth | 6.00" |
| Price Code | N1 |
| List Price | $175.57 |
| Catalog Page | 122 |
| Est. Ship Weight | 10.25 lbs |
Construction
- 0.048 and 0.060 carbon steel depending on its size.
- Spot weld construction

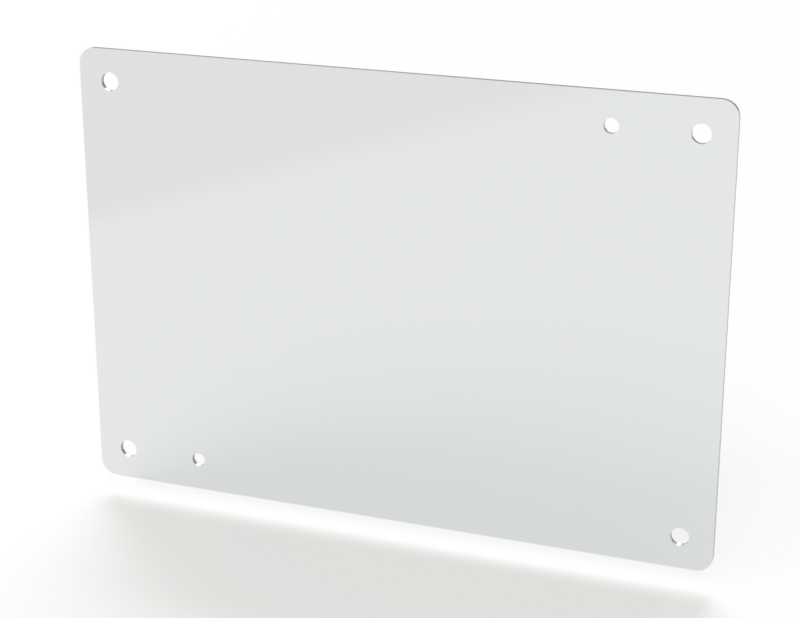

- 10-32 Standoffs provided for mounting optional sub-panels
- Removable Cover
- Black quarter turn latches
- Latches are opened or closed with a screwdriver
- Ground stud on door and body
- Mounting holes in back of enclosure
- Sub-panel mounting hardware included
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection. For installation information, consult our Installation Manual at
Finish
ANSI-61 gray powder coated inside and out. Optional sub-panels powder coated white.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
