SCE-L9308ELJLG - ELJ Trough Enclosure

ELJ Trough Enclosure

Category: Wall-Mount Enclosures > Enviroline Series Junction Trough Enclosures > Enviroline Series Junction Trough Enclosures - RAL 7035

Specifications

Construction

• 0.063 In. carbon steel.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Pour in place oil and water resistant gasket.
• Standoffs provided for mounting optional sub-panels.
• Removable hinges.
• Doors open 180 degrees.
• Black mini quarter turn latches.
• Latches are opened or closed with a screwdriver.
• Sealing washers and hole plugs included.
• Ground stud on door and body.
• Mounting feet included.
• Padlocking or keylocking latches, and tamper-resistant hardware are available.

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended. For details about the design, performance expectations, applications and design suggestions - For Details about the Design, Performance Expectations, Applications and Design Suggestions -

Finish

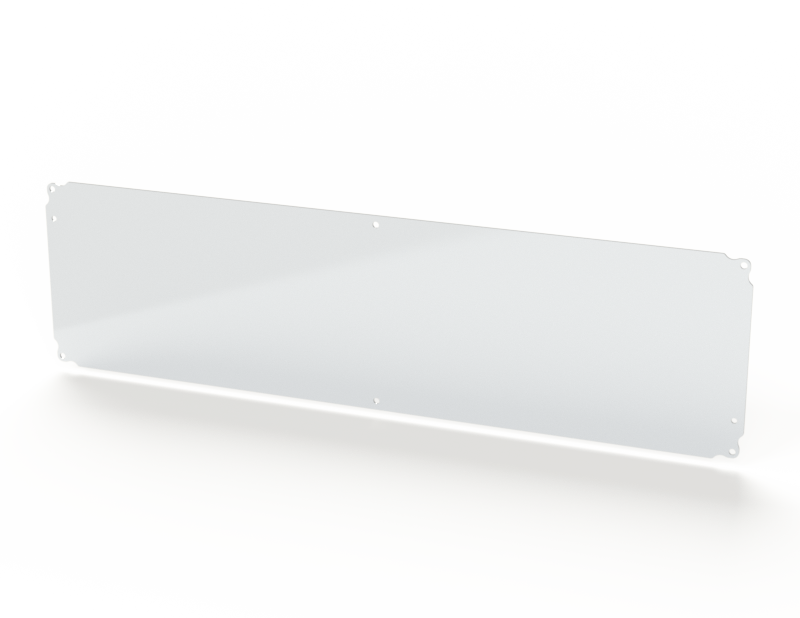

RAL 7035 gray powder coated inside and out. Optional sub-panels powder coated white.

Industry Standards - (IS4)

• NEMA Type 3R, 4, 12 and Type 13
• UL Listed Type 3R, 4 and 12
• CSA Type 3R, 4 and 12
• IEC 60529
• IP 66

Notes

***To maintain Type 3R listing, Drainage is required. Install equally rated drainage device or drill a 1/8 to 1/4 inch hole in the bottom center of the enclosure, approximately 1 inch from the right, and 1 inch from the left for drainage, use listed rain-tight or wet location hubs. Drip shield over the door is recommended for all outdoor applications.
