Saginaw Control & Engineering

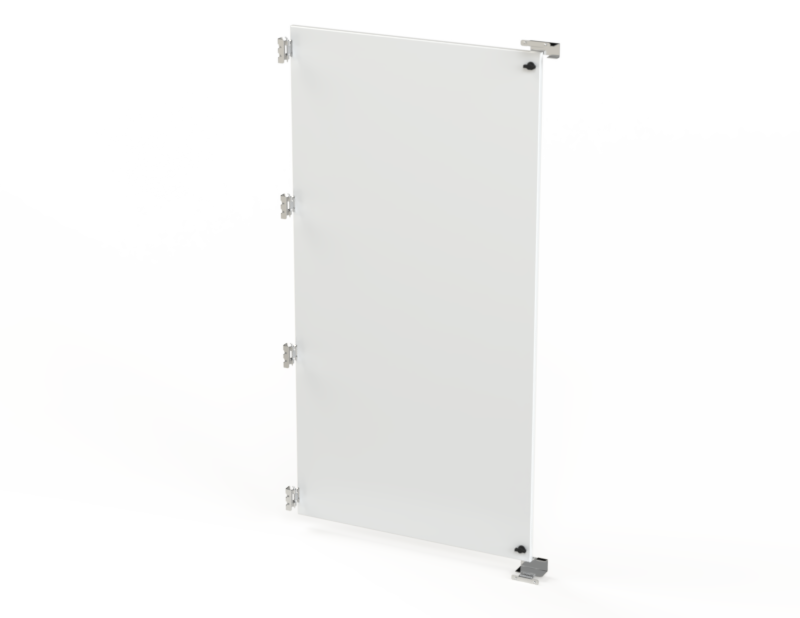

SCE-DF80NU78 - Dead Front, NextGen
- Height
- 70.50"
- Width
- 35.88"
- Depth
- 0.83"
- Est. Ship Weight
- 88.00 lbs
Product information
Technical details
Dead Front, NextGen
Specifications
| Part Number | SCE-DF80NU78 |
|---|---|
| Description | Dead Front, NextGen |
| Height | 70.50" |
| Width | 35.88" |
| Depth | 0.83" |
| Price Code | P2 |
| List Price | $598.64 |
| Catalog Page | 183 |
| Est. Ship Weight | 88.00 lbs |
Construction
- 0.075 In. carbon steel.
Application
Designed for use in NextGen Free-Standing Enclosure line. Dead front panels are designed as a fixed depth panel to be mounted directly behind the existing hinged door. This allows space to mount: gauges, meters and push buttons directly behind the front door making them easily visible when mounting them through the main door is not an option. Dead front panels also provide a barrier against incidental contact with live components during routine monitoring or maintenance of equipment. Dead front panels are installed by mounting hinges back to back with the existing door hinge of the enclosure and only adding two additional holes on the latching side of the enclosure to mount the latch brackets. Dead Front panels include quarter turn wing knobs for easy entry to the interior and mounting hardware to maintain the environmental rating of the enclosure
Finish
Powder coated white inside and out.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
