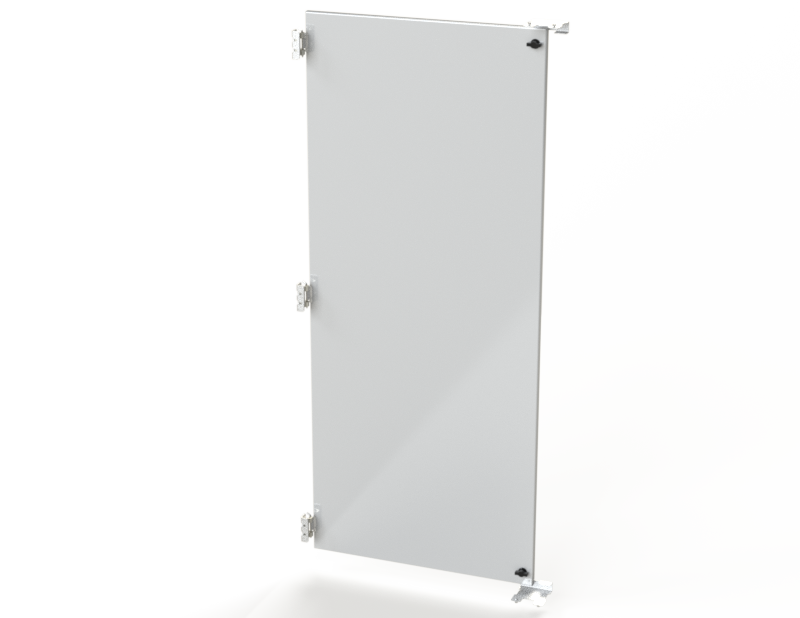

SCE-DF7260 - Panel, Dead Front (Overlapping Two Door)
$563.20
- Height
- 66.50"
- Width
- 28.38"
- Depth
- 0.83"
- Est. Ship Weight
- 75.00 lbs
Product information
Technical details
Panel, Dead Front (Overlapping Two Door)
Specifications
| Part Number | SCE-DF7260 |
|---|---|
| Description | Panel, Dead Front (Overlapping Two Door) |
| Height | 66.50" |
| Width | 28.38" |
| Depth | 0.83" |
| Price Code | P2 |
| List Price | $563.20 |
| Catalog Page | 455 |
| Est. Ship Weight | 75.00 lbs |
Construction
- 0.075 In. carbon steel.
Application
Designed for installation into two-door enclosures with overlapping doors, to be installed in the front of an enclosure and to swing out of the enclosure. Kit consists of heavy gauge brackets, hinges, and mounting hardware. Installed by detaching door hinge from enclosure and installing swing out panel kit to the existing holes. Hinge is supplied with the enclosure. Made from steel. Kit contains one panel and all hardware for one dead front behind one door.
Finish
Powder coated white inside and out.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
