Saginaw Control & Engineering

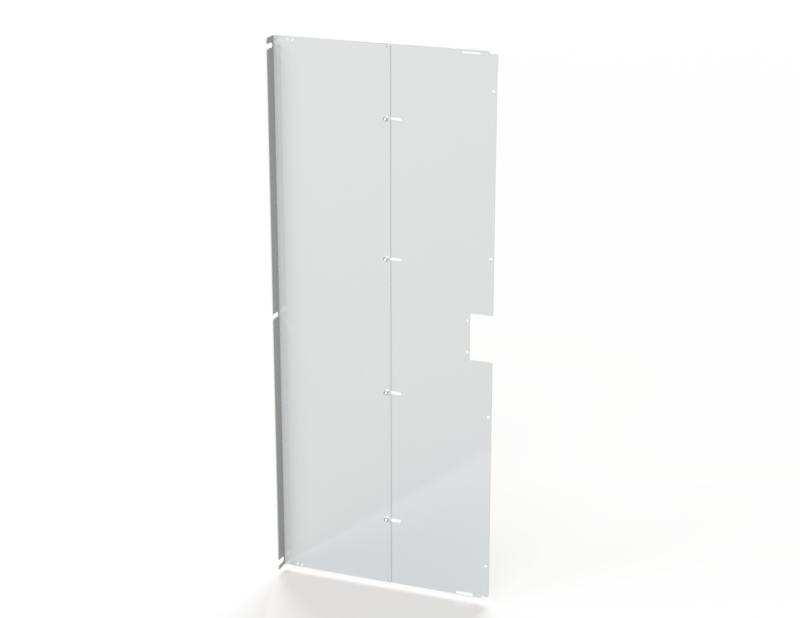

SCE-BP5624 - Plate, Barrier
$333.75
- Height
- 55.94"
- Width
- 22.44"
- Depth
- 1.63"
- Est. Ship Weight
- 33.00 lbs
Product information
Technical details
Plate, Barrier
Specifications
| Part Number | SCE-BP5624 |
|---|---|
| Description | Plate, Barrier |
| Height | 55.94" |
| Width | 22.44" |
| Depth | 1.63" |
| Price Code | P2 |
| List Price | $333.75 |
| Catalog Page | 457 |
| Est. Ship Weight | 33.00 lbs |
Application
Designed to be installed on the back panel of enclosures to provide protection against Arc Flash the height of the sub-plate, and allowing separation of the high voltage and low voltage within the enclosure. Made of heavy gauge carbon steel and powder coated white. Mounting hardware included.
Finish
Powder coated white.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
