Saginaw Control & Engineering

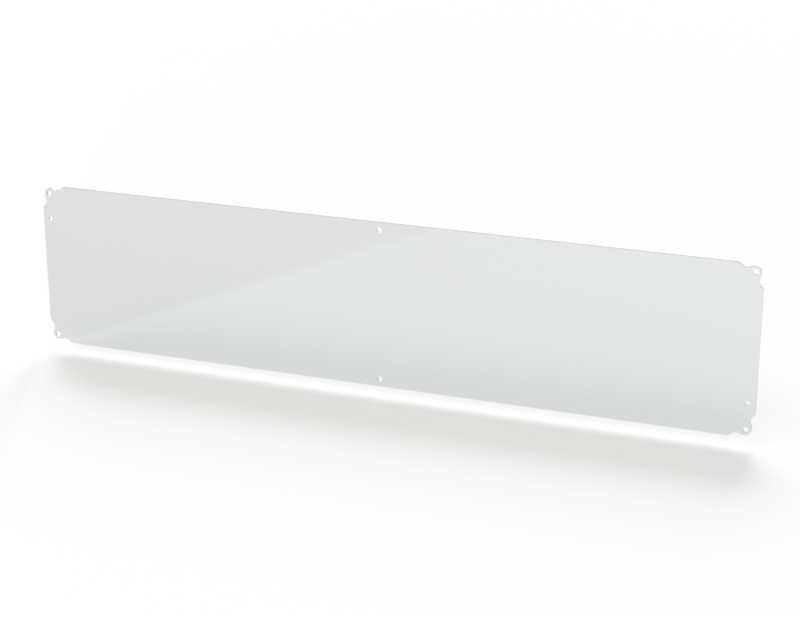

SCE-9P36L - Subpanel, ELJ Trough
$44.84
- Height
- 8.00"
- Width
- 35.00"
- Depth
- 0.08"
- Est. Ship Weight
- 6.00 lbs
Product information
Technical details
Subpanel, ELJ Trough
Specifications
| Part Number | SCE-9P36L |
|---|---|
| Description | Subpanel, ELJ Trough |
| Height | 8.00" |
| Width | 35.00" |
| Depth | 0.08" |
| Price Code | P3 |
| List Price | $44.84 |
| Catalog Page | 453 |
| Est. Ship Weight | 6.00 lbs |
Construction
- 0.075 In. carbon steel.
Application
Designed to be used with Enviroline® Trough Enclosures. Made of heavy gauge steel.
Finish
Powder coated white.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
