Saginaw Control & Engineering
SCE-90EL7236SSFSD - S.S. EL FSD Enclosure
- Height
- 90.00"
- Width
- 72.00"
- Depth
- 36.00"
- Est. Ship Weight
- 950.00 lbs
Product information
Technical details
S.S. EL FSD Enclosure
Category: Free-Standing and Floor-Mounted Enclosures (Stainless Steel) > Enviroline Series Free-Standing Two-Door Enclosures (304 and 316 Stainless Steel) > Enviroline Series Free-Standing Two-Door Enclosures (304 Stainless Steel)
Specifications
| Part Number | SCE-90EL7236SSFSD |
|---|---|
| Description | S.S. EL FSD Enclosure |
| Height | 90.00" |
| Width | 72.00" |
| Depth | 36.00" |
| Price Code | S4 |
| List Price | $20,578.01 |
| Catalog Page | 310 |
| Est. Ship Weight | 950.00 lbs |
Construction
- 0.104 In. stainless steel Type 304.

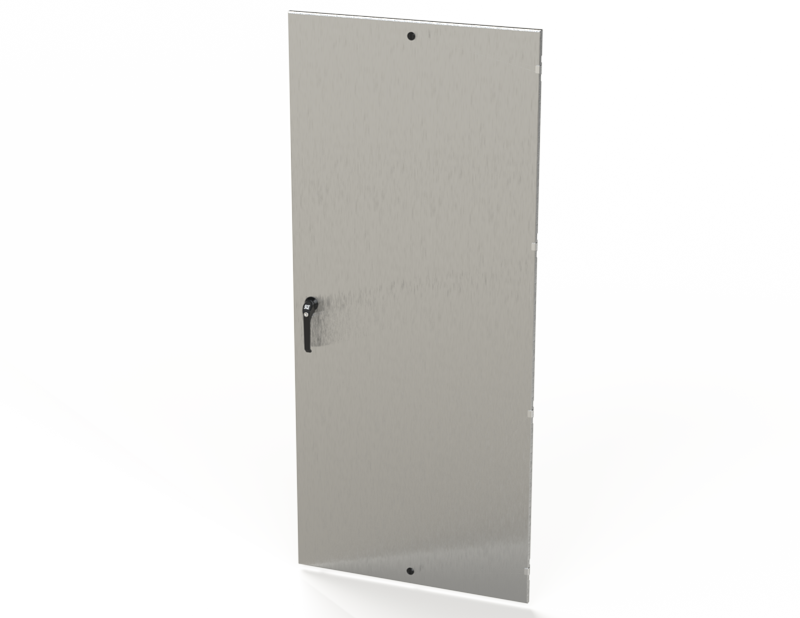

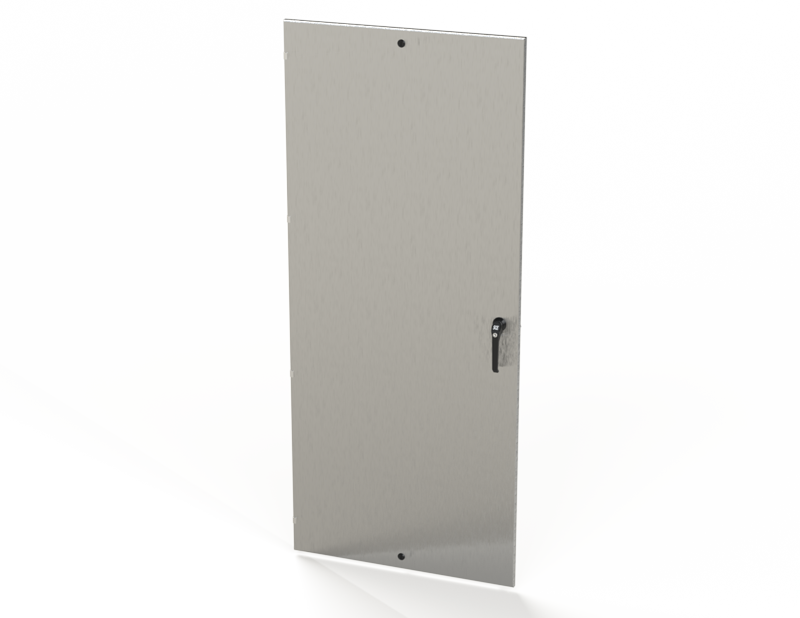

- Removable and inchangeable doors.
- Concealed hinges.
- Seams continuously welded and ground smooth.
- Strong rigid construction with stiffeners welded on backs of single access boxes.
- Lifting eyes for easy handling.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Flange trough collar around all sides of door opening.

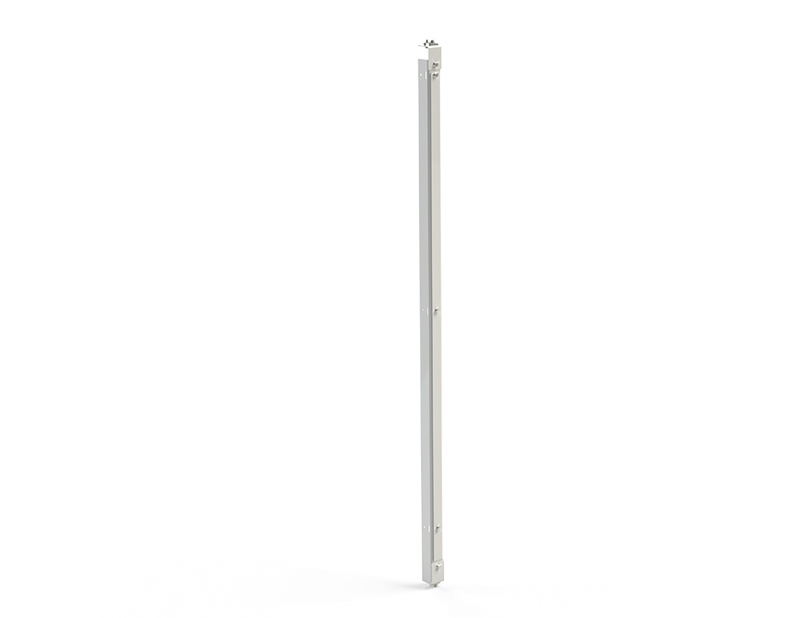

- Removable center post.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- Pour in place oil & water resistant gasket
- Ground stud on door and body.
- Provisions for light kit.
- Removable print pocket.
Application
Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -
Finish
Type 304 Stainless Steel with #4 Brushed finish. Optional sub-panels powder coated white
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes

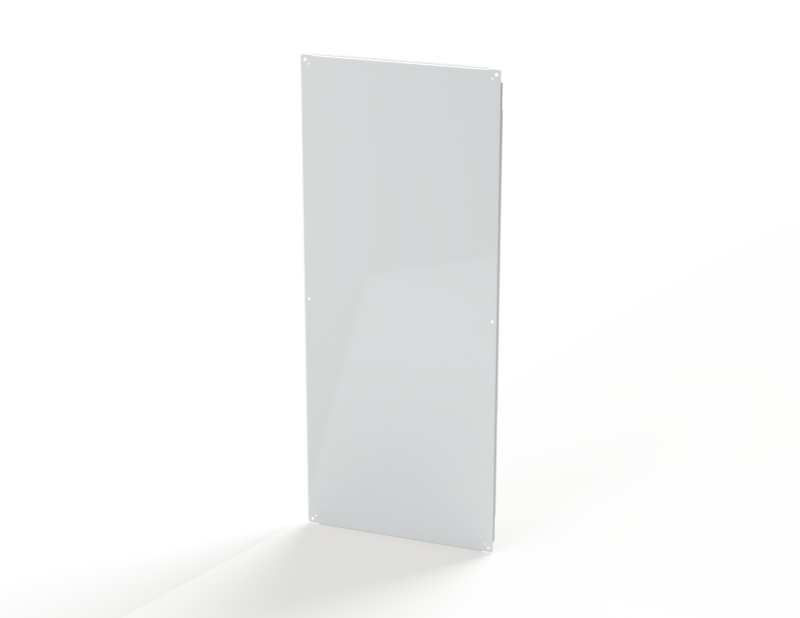

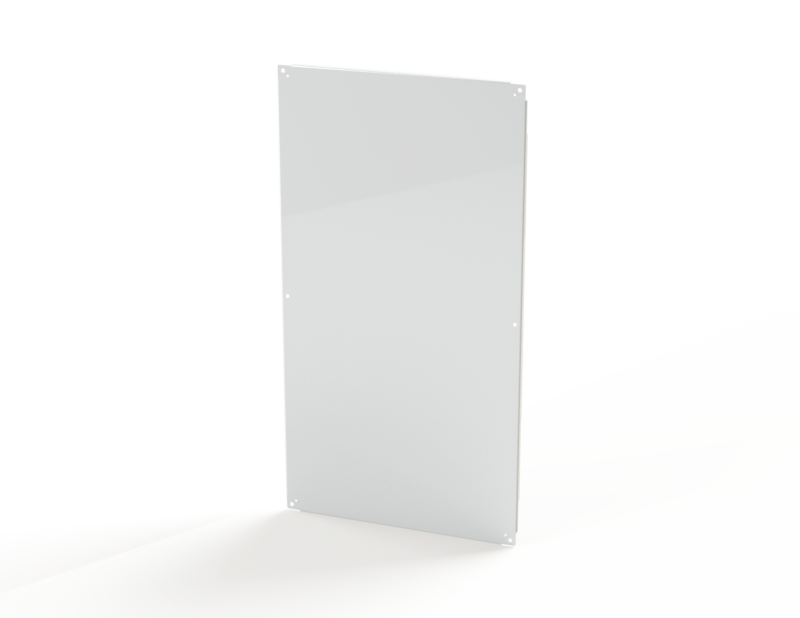

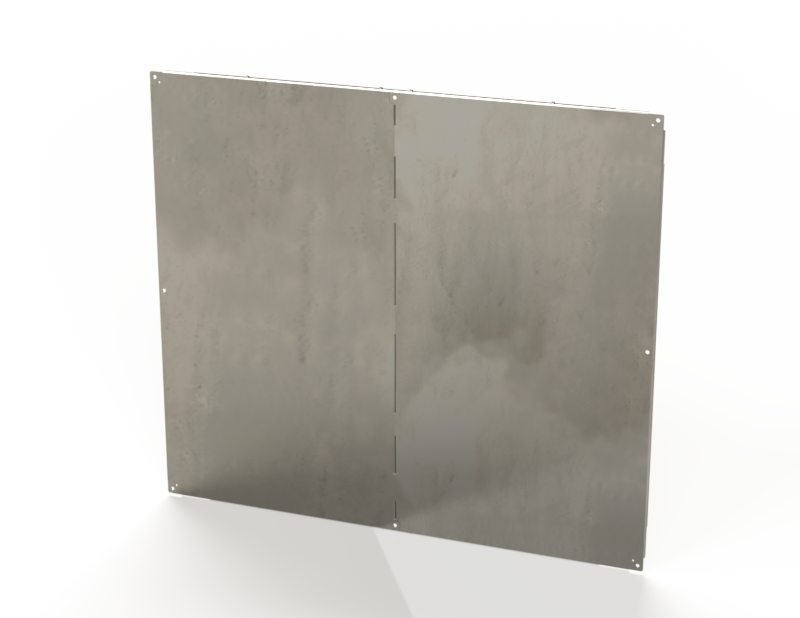

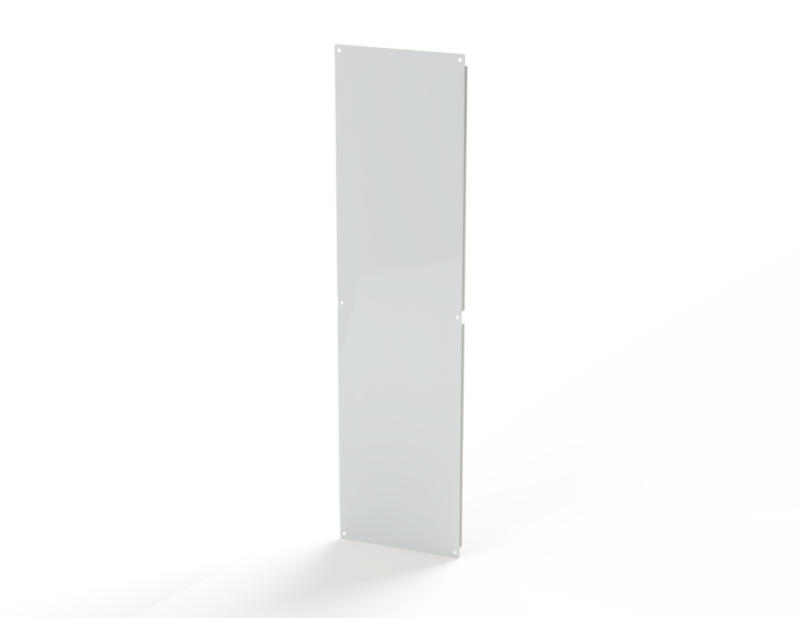

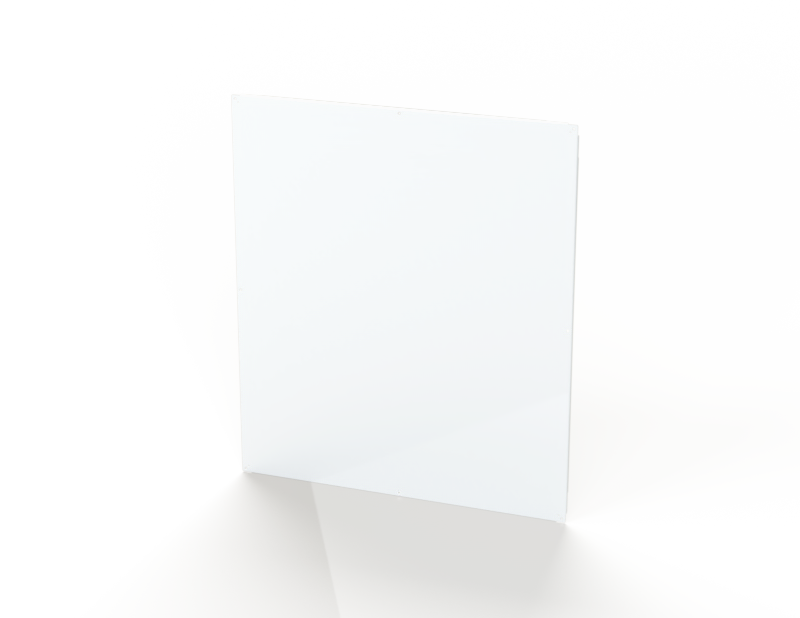

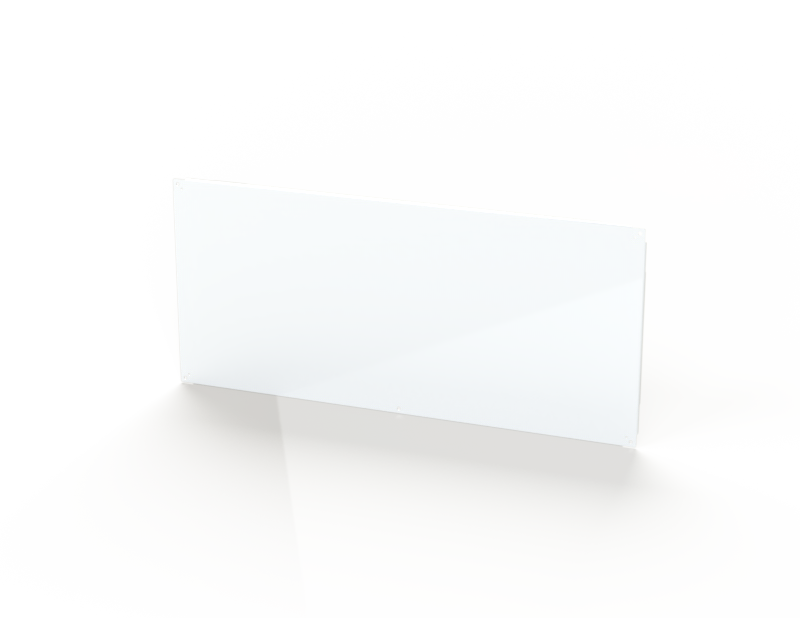

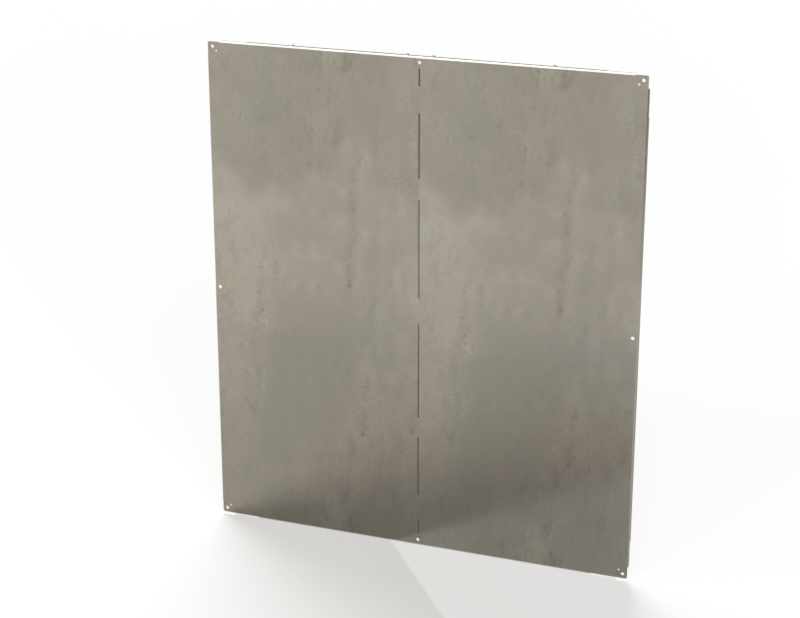

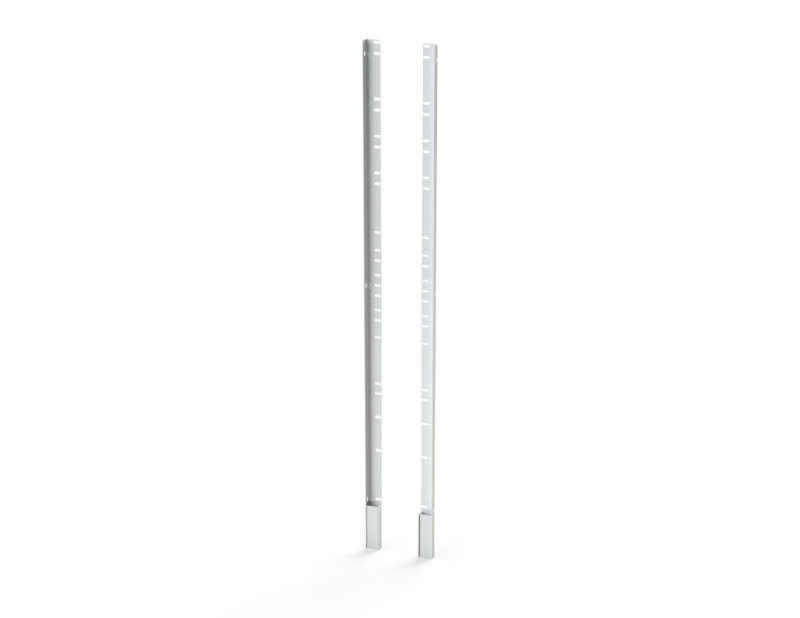

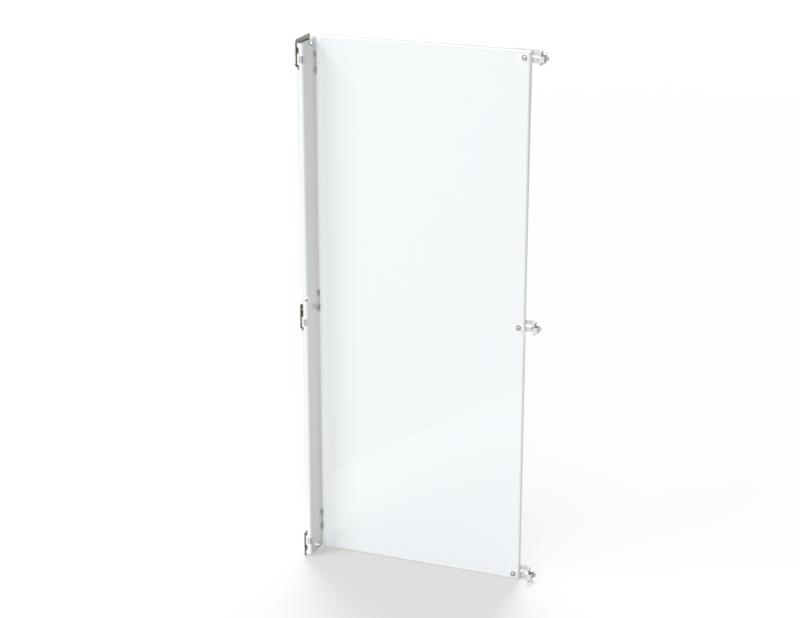

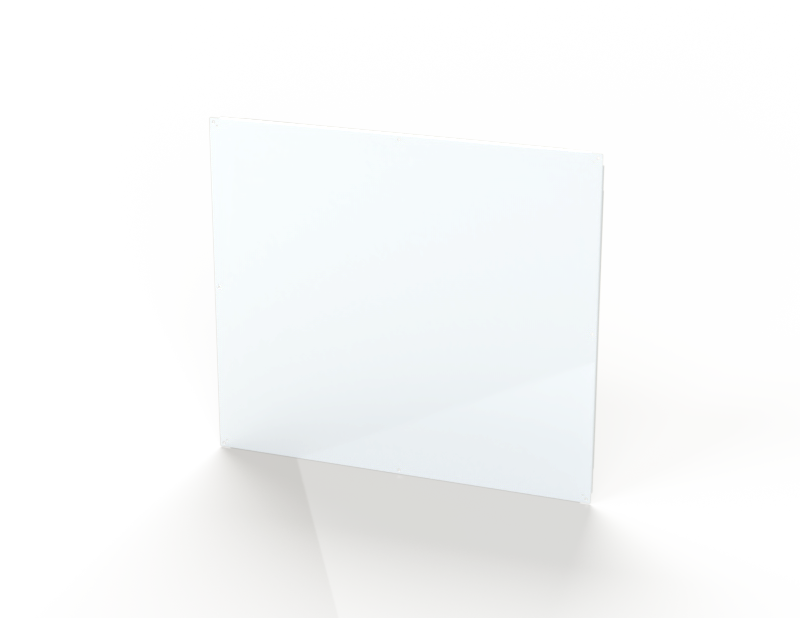

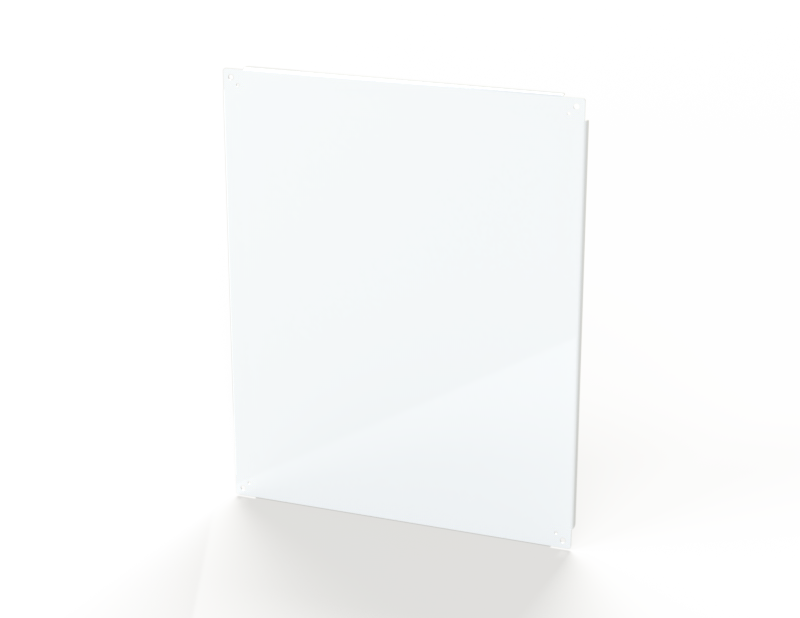

Optional panels and accessories available. Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
