Saginaw Control & Engineering
SCE-90EL2420SSFS - S.S. EL FS Enclosure
- Height
- 90.00"
- Width
- 24.00"
- Depth
- 20.00"
- Est. Ship Weight
- 330.00 lbs
Product information
Technical details
S.S. EL FS Enclosure
Category: Free-Standing and Floor-Mounted Enclosures (Stainless Steel) > Enviroline Series Free-Standing Single-Door Enclosures (304 and 316 Stainless Steel) > Enviroline Series Free-Standing Single-Door Single-Access Enclosures (304 Stainless Steel)
Specifications
| Part Number | SCE-90EL2420SSFS |
|---|---|
| Description | S.S. EL FS Enclosure |
| Height | 90.00" |
| Width | 24.00" |
| Depth | 20.00" |
| Price Code | S4 |
| List Price | $7,298.78 |
| Catalog Page | 308 |
| Est. Ship Weight | 330.00 lbs |
Construction
- 0.104 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Pour in place oil & water resistant gasket
- Flange trough collar around all sides of door opening.
- Concealed hinges.

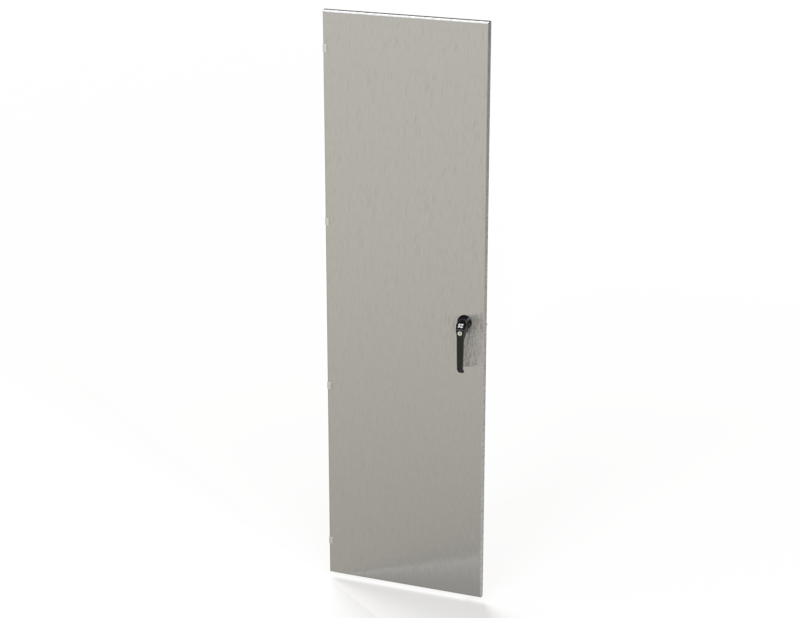

- Removable and interchangeable doors.
- Black zinc die cast keylocking/padlocking handle. 3-point latching mechanism. Latch rods have ramp shoes for easier door closing.
- Removable print pocket.
- Lifting eyes for easy handling.
- Ground studs on door and body.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- No door stiffeners required.
- Provisions for light kit.
Application
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended. For details about the design, performance expectations, applications and design suggestions -
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
Optional panels and accessories available. Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
