SCE-84XML2D24SS - S.S. 2DR Left XM Enclosure

S.S. 2DR Left XM Enclosure

Category: Free-Standing and Floor-Mounted Enclosures (Stainless Steel) > Heavy Duty Free-Standing Enclosures for Flange Mounted Disconnects One through Six Door Enclosures (Stainless Steel) > Heavy Duty Free-Standing Left Enclosures (Stainless Steel)

Specifications

Construction

• 0.104 In. stainless steel Type 304.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door openings.
• Body stiffeners in large enclosures for extra rigidity.
• Heavy duty lifting eyes anchor into reinforced top.
• Removable center post to permit easy sub-panel installation.
• Stainless steel concealed hinges.
• Black zinc die cast padlocking handle on all doors.
• 3-point latching mechanism.
• Black quarter turn latches as required.
• Panel supports.
• Pour in place oil & water resistant gasket

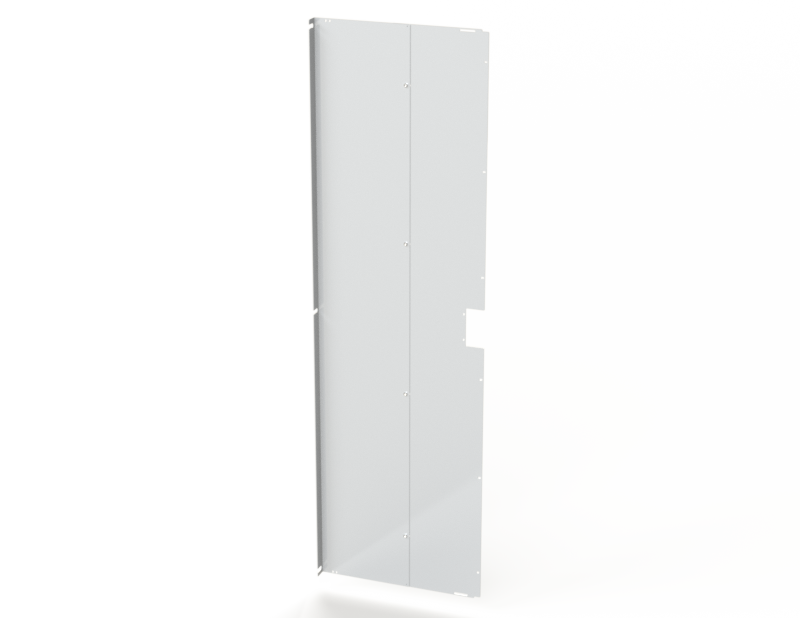

• Removable subpanels mount on collar studs.

Application

This enclosure is designed to be the left most enclosure in a large multi-door enclosure. Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -

Finish

#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.

Industry Standards - (IS6)

• NEMA Type 3R, 4, 4X, 12 and Type 13
• UL Listed Type 3R, 4, 4X and 12
• CSA Type 4, 4X and 12
• IEC 60529
• IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
