Saginaw Control & Engineering
SCE-84XDR2D18G - 2DR Right XD Enclosure
- Height
- 84.00"
- Width
- 78.75"
- Depth
- 18.00"
- Est. Ship Weight
- 1,000.00 lbs
Product information
Technical details
2DR Right XD Enclosure
Category: Free-Standing and Floor-Mounted Enclosures > Heavy Duty Free-Standing Enclosures with External Disconnect Enclosure Installed (One, Two, Three and Multi-Door Enclosures) > Right Heavy Duty Free-Standing Enclosures With External Disconnect Enclosure Installed
Specifications
| Part Number | SCE-84XDR2D18G |
|---|---|
| Description | 2DR Right XD Enclosure |
| Height | 84.00" |
| Width | 78.75" |
| Depth | 18.00" |
| Price Code | A2 |
| List Price | $6,901.02 |
| Catalog Page | 5000 |
| Est. Ship Weight | 1,000.00 lbs |
Construction
- 0.125 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners in large enclosures for extra rigidity.
- Heavy duty lifting eyes anchor into reinforced top.
- Removable center post to permit easy sub-panel installation.
- Concealed hinges.
- Black zinc die cast padlocking handles.
- 3-point latching mechanism.
- Large removable print pockets.
- Pour in place oil & water resistant gasket
- Removable panels are mounted on collar studs.
- Defeater on master door requires a screwdriver to open.
- External disconnect defeater requires screwdriver for access.
- Ground stud on door & body.
- Provisions for light kit.
Application
This enclosure is designed to be the right most enclosure in a large multi-door enclosure. Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -
Finish

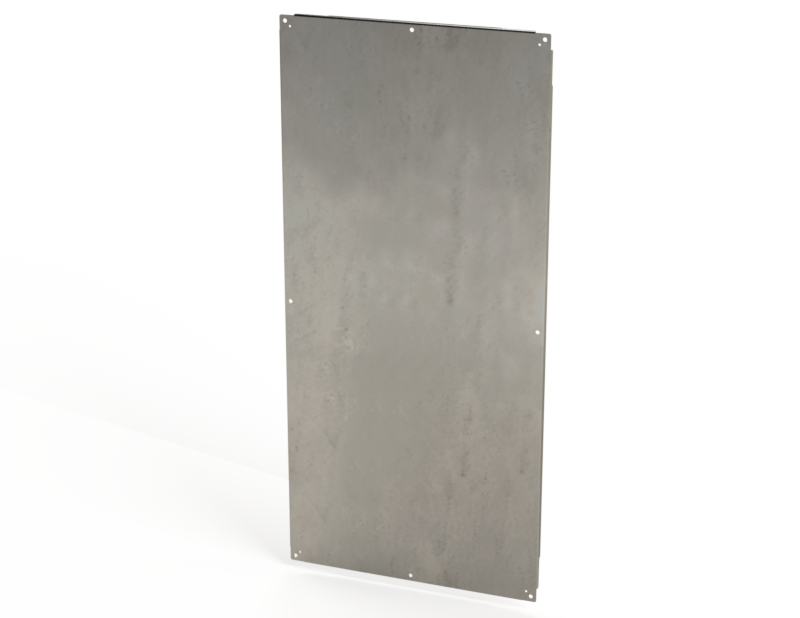

ANSI-61 gray powder coating inside and out. Sub-panels are powder coated white. Part numbers ending in "G" have galvanized subpanels installed.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
For use with 30 to 200 Amp Flange mount disconnect Square D, Allen Bradley, and some Eaton/Cutler Hammer operating handles. Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure. *Part numbers ending in "G" have galvanized sub-panels installed
