Saginaw Control & Engineering
SCE-72EL4824FSD - EL FSD Enclosure
- Height
- 72.00"
- Width
- 48.00"
- Depth
- 24.00"
- Est. Ship Weight
- 573.00 lbs
Product information
Technical details
EL FSD Enclosure
Category: Free-Standing and Floor-Mounted Enclosures > Enviroline Series Free-Standing Two-Door Enclosures
Specifications
| Part Number | SCE-72EL4824FSD |
|---|---|
| Description | EL FSD Enclosure |
| Height | 72.00" |
| Width | 48.00" |
| Depth | 24.00" |
| Price Code | A2 |
| List Price | $3,590.01 |
| Catalog Page | 136 |
| Est. Ship Weight | 573.00 lbs |
Construction
- 0.104 In. carbon steel.
- Two-Door Single Access.

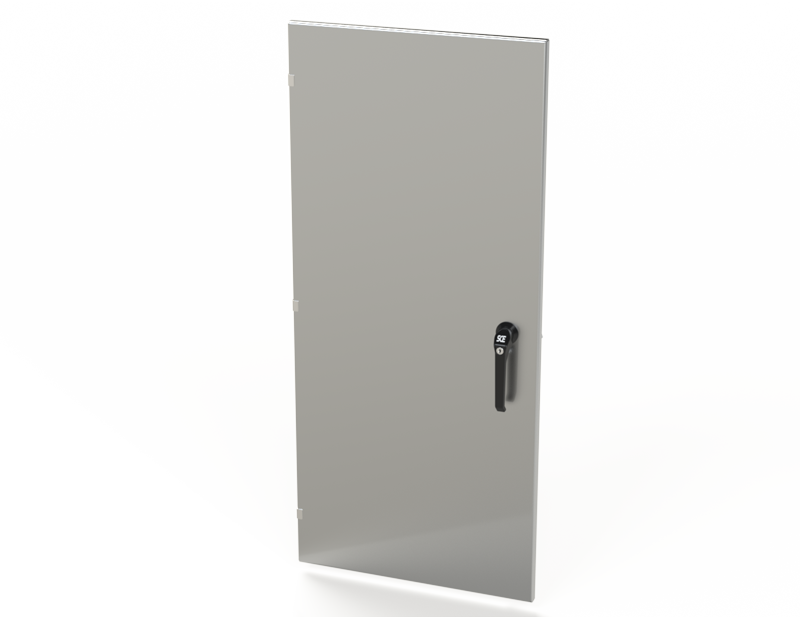

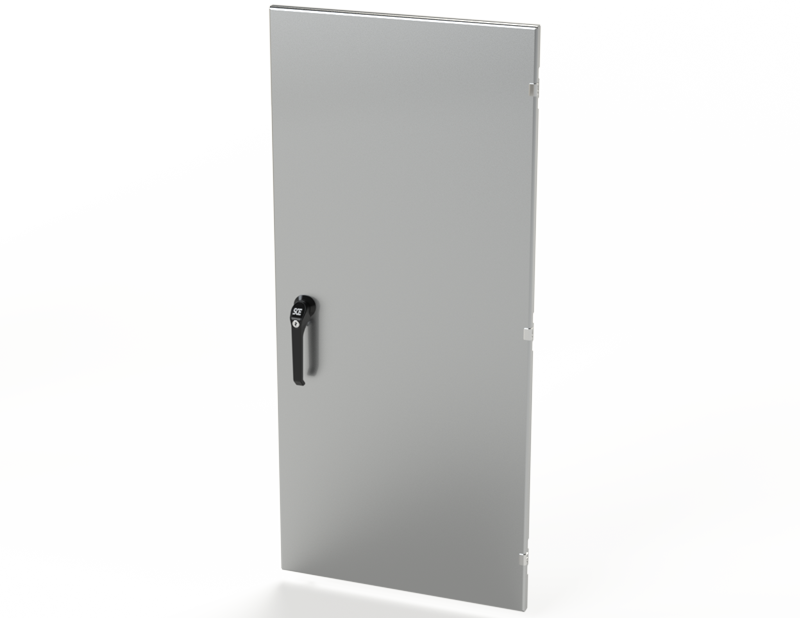

- Removable and inchangeable doors.
- Seams continuously welded and ground smooth.
- Lifting eyes for easy handling.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Flange trough collar around all sides of door opening.
- Removable center post.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- Pour in place oil & water resistant gasket
- Ground stud on door and body.
- Provisions for light kit.
- Concealed hinges.
- Holes plugs provided to seal holes in bottom of enclosure.
- Removable print pocket.
Application
Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended. For Details about the design, performance expectations, applications and design suggestions -
Finish
ANSI-61 gray finish Inside and outside. Optional sub-panels are powder coated white.
Industry Standards - (IS4)
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
Notes
Optional panels and accessories available. Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
