SCE-66ST2626WS - Workstation, Sloped Top
$2,912.93
- Height
- 65.59"
- Width
- 26.00"
- Depth
- 26.00"
- Est. Ship Weight
- 245.00 lbs
Product information
Technical details
Workstation, Sloped Top
Category: Operator System Enclosures > Slope Top Work Station
Specifications
| Part Number | SCE-66ST2626WS |
|---|---|
| Description | Workstation, Sloped Top |
| Height | 65.59" |
| Width | 26.00" |
| Depth | 26.00" |
| Price Code | C2 |
| List Price | $2,912.93 |
| Catalog Page | 36 |
| Est. Ship Weight | 245.00 lbs |
Construction
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- 15 degree sloped top.
- 12.5 degree sloped keyboard desk.
- Pour in place oil & water resistant gasket
- Flange trough collar around all sides of door opening.
- Concealed hinges.
- Removable doors.
- Ground studs on door and body.
- Large polycarbonate viewing window in top door.
- Lifting eyes for easy handling.

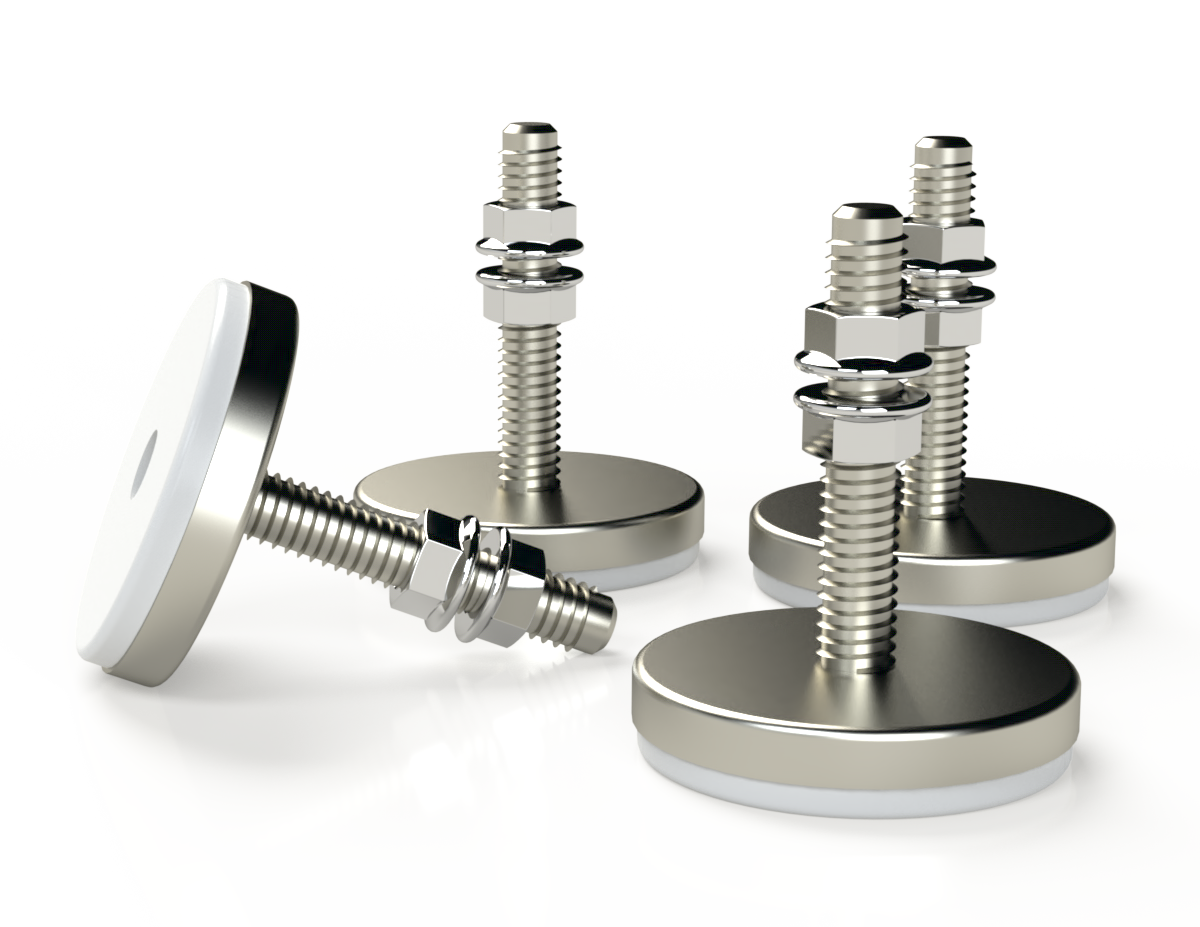

- Rubber pads with provision for leveling pads on bottom of enclosure.
- Black quarter turn latches on top door.
- Black 3-point flush swing handle in lower front and back doors.
- Gland plate on lower back of enclosure.

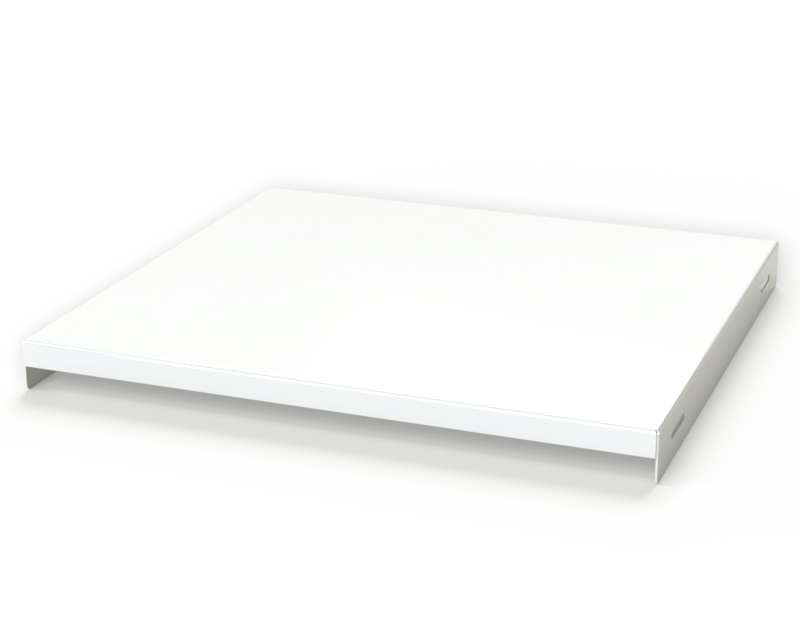

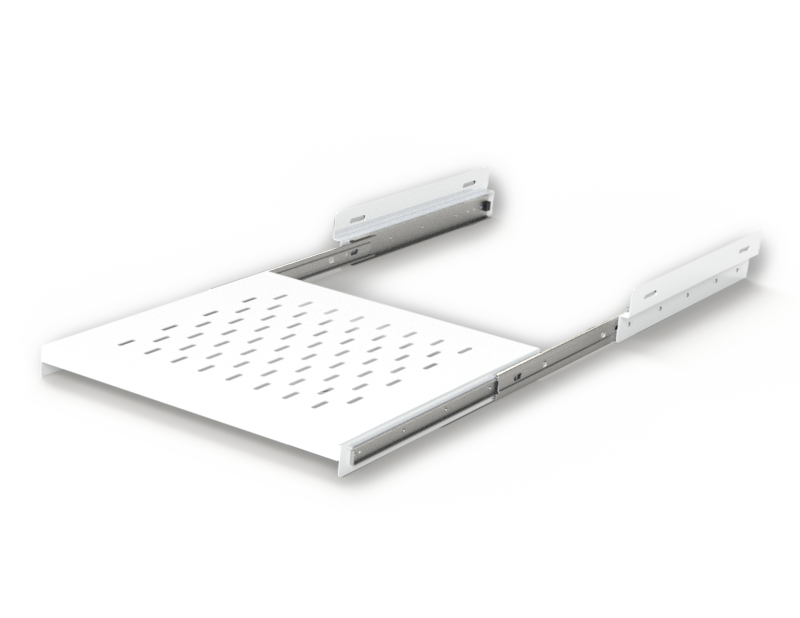

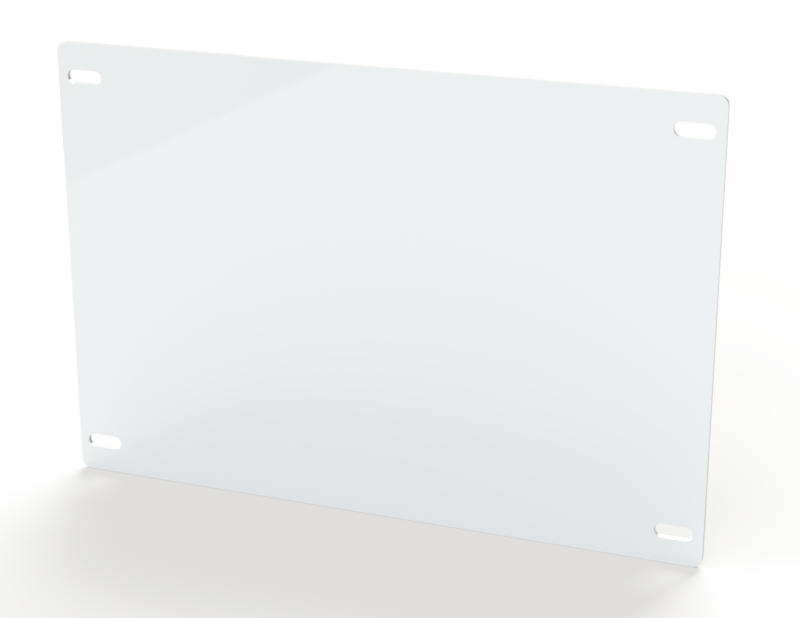

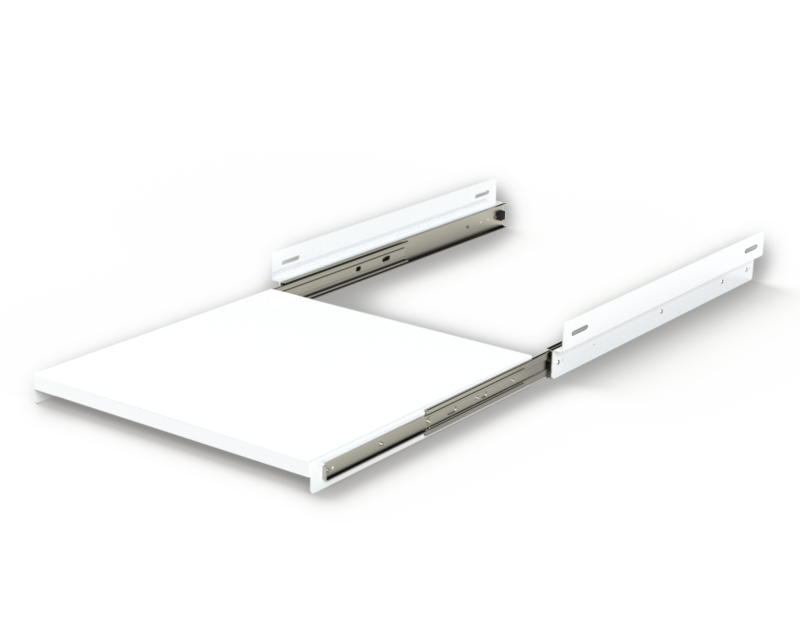

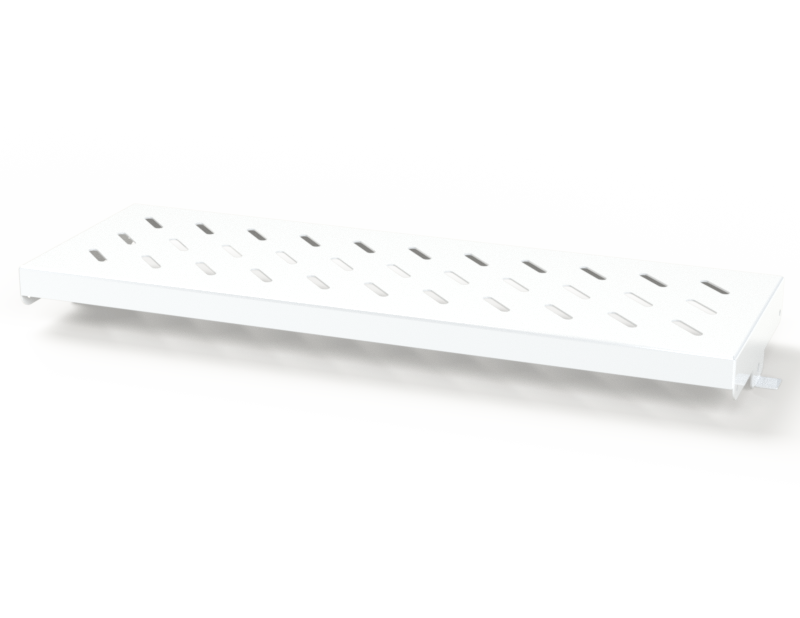

- Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.

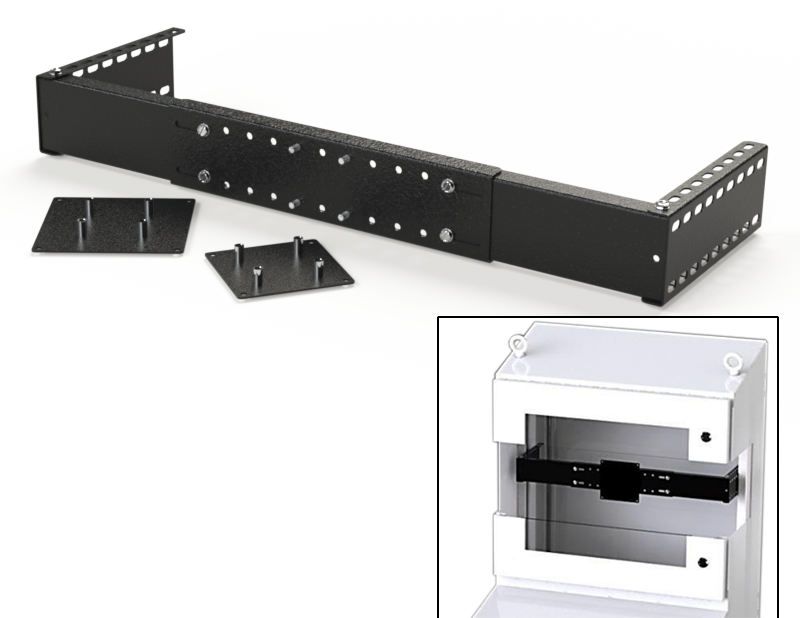

- Provisions for Monitor Mounting Strap System.

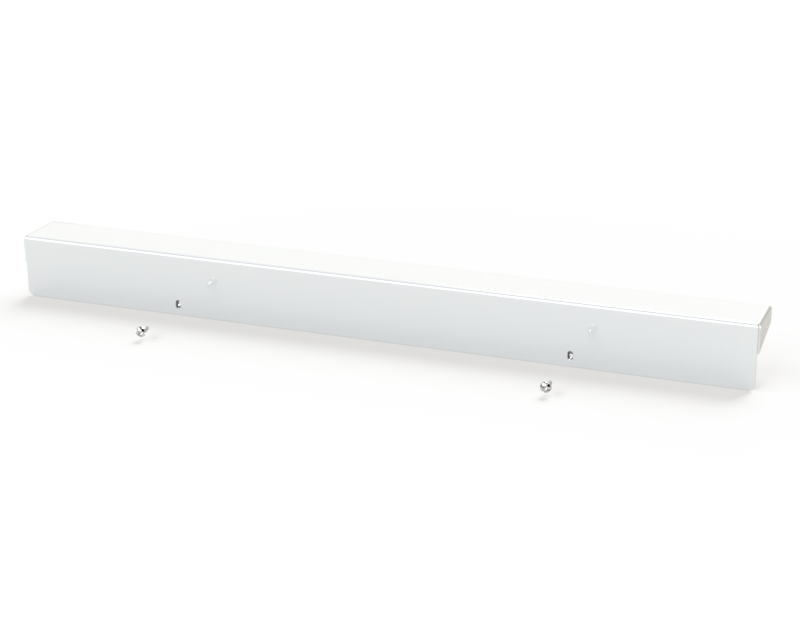

- Pencil edge palm rest.
Application
Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment or an environment which may be regularly hosed down or in very wet or oily conditions. Provides protection from dust, dirt, water and oil.
Options
Optional tamper-resistant inserts or padlocking handles are available.
Finish
Powder coated white inside and out.
Industry Standards - (IS1)
- NEMA Type 12 and Type 13
- UL Listed Type 12
- CSA Type 12
- IEC 60529
- IP 55
