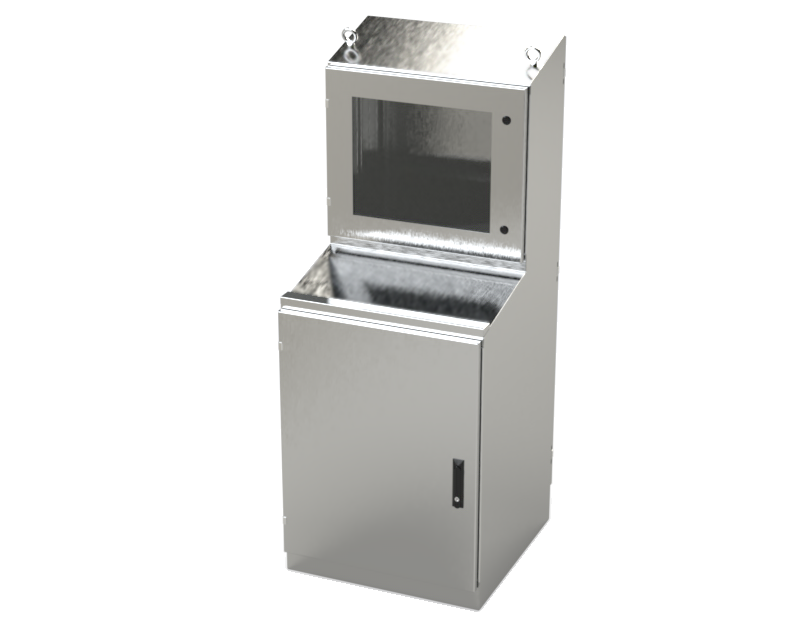

SCE-66ST2626SSWS - S.S. Workstation, Sloped Top

S.S. Workstation, Sloped Top

Category: Operator System Enclosures (Stainless Steel) > Slope Top Workstation (Stainless Steel)

Specifications

Construction

• 0.075 In. stainless steel Type 304.
• Seams continuously welded and ground smooth.
• 15 degree sloped top.
• 12.5 degree sloped keyboard desk
• Pour in place oil & water resistant gasket
• Flange trough collar around all sides of door opening.
• Concealed hinges.
• Removable doors.
• Ground studs on door and body.
• Large polycarbonate viewing window in top door.
• Lifting eyes for easy handling.
• Rubber pads with provision for leveling pads on bottom of enclosure.
• Black quarter turn latches on top door.
• Black 3-point flush swing handle in lower front and back doors.
• Gland plate on lower back of enclosure.
• Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
• Monitor shelf for Slope Top WS.
• Provisions for Monitor Mounting Strap System.
• Pencil edge palm rest.

Application

Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment or an enviroment which may be regularly hosed down or in very wet or oily conditions. Provides protection from dust, dirt, water and oil. Stainless steel work stations resist corrosion.

Options

Can be special ordred in Type 316/316L Stainless Steel.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS1)

• NEMA Type 12 and Type 13
• UL Listed Type 12
• CSA Type 12
• IEC 60529
• IP 55
