SCE-60EL6012SS6LPPL - S.S. 2DR EL LPPL Enclosure

S.S. 2DR EL LPPL Enclosure

Category: Free-Standing and Floor-Mounted Enclosures (Stainless Steel) > Enviroline Series Two-Door Enclosure (304 and 316 Stainless Steel) > Enviroline Series Two-Door Enclosures with 3 Point Hardware (Type 4X 316 Stainless Steel)

Specifications

Construction

• 0.104 In. stainless steel Type 316/316L.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Removable center post.
• Heavy duty lifting eyes anchor into reinforced top.
• Body stiffeners.
• Stainless steel concealed hinge.
• Black key locking padlocking handles.
• 3-point latching mechanism.
• Removable print pocket.
• 12 inch removable floor stands.
• Panel supports.
• Provision for mechanical interlock.
• Pour in place oil & water resistant gasket
• Ground stud on door & body.
• Provisions for light kit.
• Collar studs 3/8-16 provided for mounting optional panels.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor & outdoor locations. For outdoor application a drip shield and drain vent is recommended. For details about the design, performance expectations, applications and design suggestions -

Options

Provisions for mechanical interlock. See Accessory section to order.

Finish

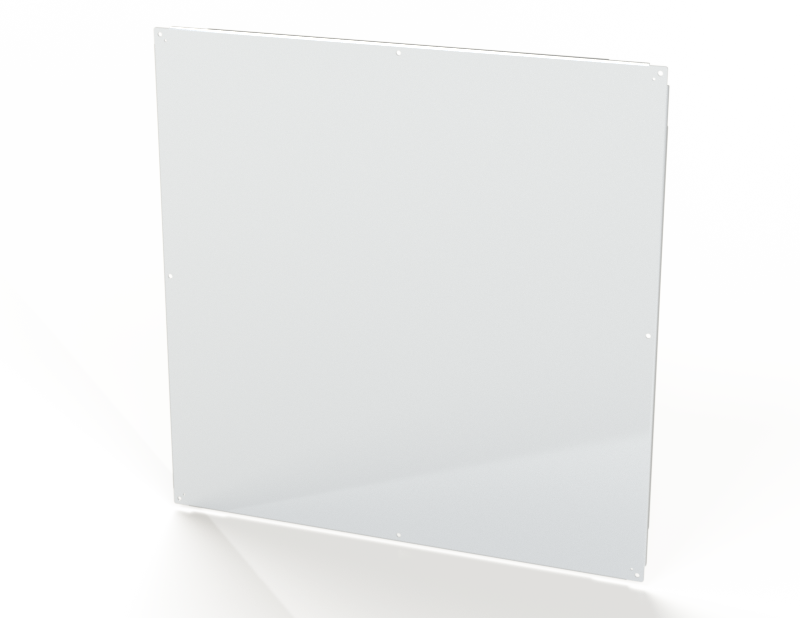

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

• NEMA Type 3R, 4, 4X, 12 and Type 13
• UL Listed Type 3R, 4, 4X and 12
• CSA Type 4, 4X and 12
• IEC 60529
• IP 66

Notes

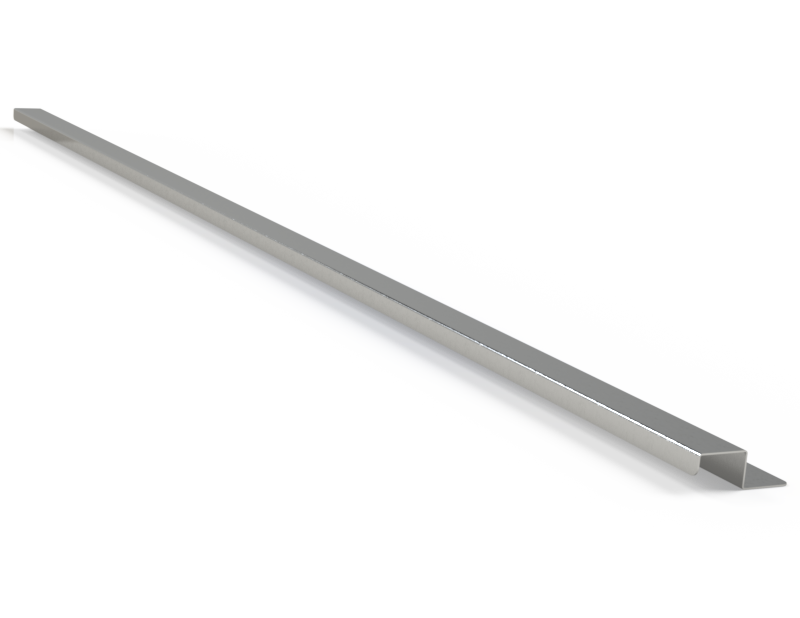

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
