Saginaw Control & Engineering

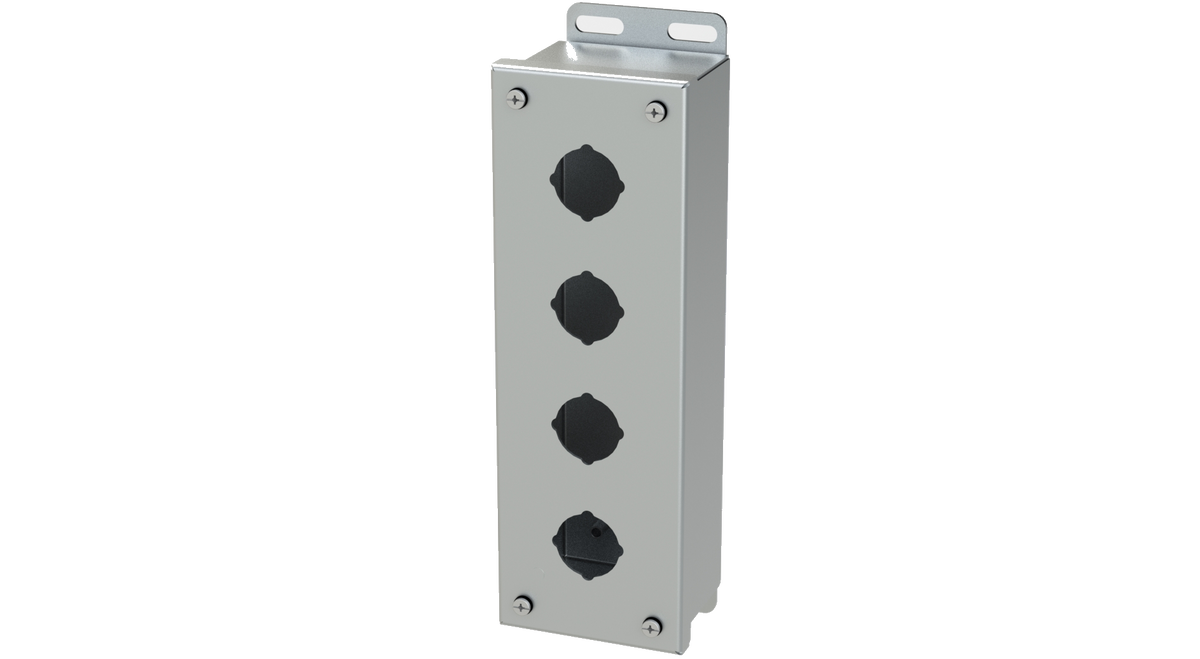

SCE-4PBSS6 - S.S. PB Enclosure
$332.45
- Height
- 10.25"
- Width
- 3.25"
- Depth
- 2.75"
- Est. Ship Weight
- 4.00 lbs
Product information
Technical details
S.S. PB Enclosure
Category: Wall-Mount Enclosures (Stainless Steel) > Pushbutton Enclosures and Hinged Pushbutton Enclosures (304 and 316 Stainless Steel) > 30.5 mm Pushbutton Enclosures (316 Stainless Steel)
Specifications
| Part Number | SCE-4PBSS6 |
|---|---|
| Description | S.S. PB Enclosure |
| Height | 10.25" |
| Width | 3.25" |
| Depth | 2.75" |
| Price Code | S1 |
| List Price | $332.45 |
| Catalog Page | 236 |
| Est. Ship Weight | 4.00 lbs |
Construction
- 0.063 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights. Hole diameter is 1.20 In. (30.5mm).
- Immediate removal of cover is permitted.
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back.
Application
Designed to house standard pushbuttons, switches and pilot lights in wet and hosed down areas and in corrosive atmospheres.
Finish
#4 brushed finish on all exterior surfaces.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
