Saginaw Control & Engineering
SCE-48K4812SSST - S.S. 2DR Sanitary Sloping Top Enclosure
$10,865.69
- Height
- 48.00"
- Width
- 48.00"
- Depth
- 12.00"
- Est. Ship Weight
- 479.00 lbs
Product information
Technical details
S.S. 2DR Sanitary Sloping Top Enclosure
Category: Free-Standing and Floor-Mounted Enclosures (Stainless Steel) > Sanitary Two-Door Slope Top Enclosures (Stainless Steel)
Specifications
| Part Number | SCE-48K4812SSST |
|---|---|
| Description | S.S. 2DR Sanitary Sloping Top Enclosure |
| Height | 48.00" |
| Width | 48.00" |
| Depth | 12.00" |
| Price Code | S8 |
| List Price | $10,865.69 |
| Catalog Page | 306 |
| Est. Ship Weight | 479.00 lbs |
Construction
- #4 Brushed finish 25-35 RA suitable for medical and food industry.
- Type 304 Stainless Steel
- Seams continuously welded and ground smooth
- 15 degree sloped top
- Internal swing out hinges
- Doors open 110 degrees
- 90 Door Stop
- Stainless sanitary quarter turn latches with FDA - Grade silicone gasket
- Pour in place oil & water-resistant inner gasket
- FDA - Grade silicone outer gasket

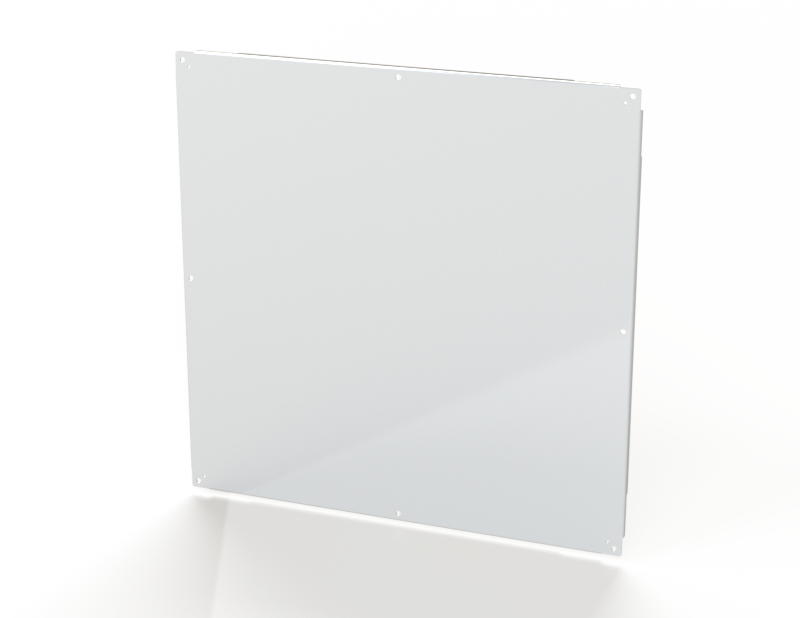

- Provision for mounting optional panels
- Mounting studs in back of enclosure for optional mounting subpanel
- Ground stud on door & body
- DIN 40050-9, IP69K
- ANSI 3A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
- Hole plugs provided in order to remove eyebolt and seal holes in top of enclosure.
Application
Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations.
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards - (IS25)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
