SCE-342424SSWS - S.S. Workstation
$7,683.93
- Height
- 34.00"
- Width
- 24.25"
- Depth
- 24.25"
- Est. Ship Weight
- 198.00 lbs
Product information
Technical details
S.S. Workstation
Category: Operator System Enclosures (Stainless Steel) > Pedestal Mounted / Desk Top Work Stations (Stainless Steel)
Specifications
| Part Number | SCE-342424SSWS |
|---|---|
| Description | S.S. Workstation |
| Height | 34.00" |
| Width | 24.25" |
| Depth | 24.25" |
| Price Code | S3 |
| List Price | $7,683.93 |
| Catalog Page | 214 |
| Est. Ship Weight | 198.00 lbs |
Construction
- 0.075 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Oil-resistant gasket.
- Flange trough collar around all sides of door opening.
- Concealed hinge.
- Removable doors.
- Ground studs on door and body.
- Large polycarbonate viewing window in top door
- Lifting eyes for easy handling.
- Black, quarter turn latches on top door.
- Black, quarter turn wing knob latches on keyboard door.
- Black 3 point flush swing handle in back door.
- Pull out keyboard shelf with attached self storing mouse shelf and mouse pad.

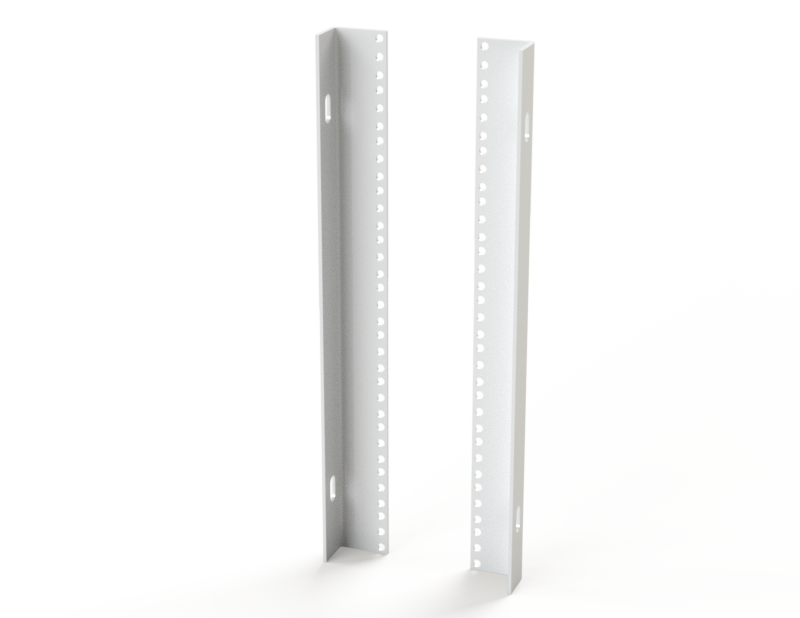

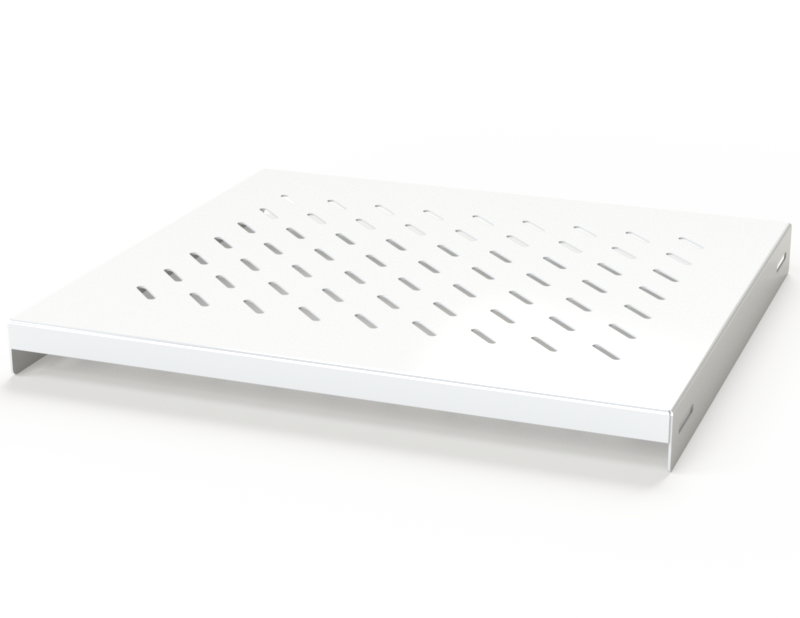

- Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
