Saginaw Control & Engineering

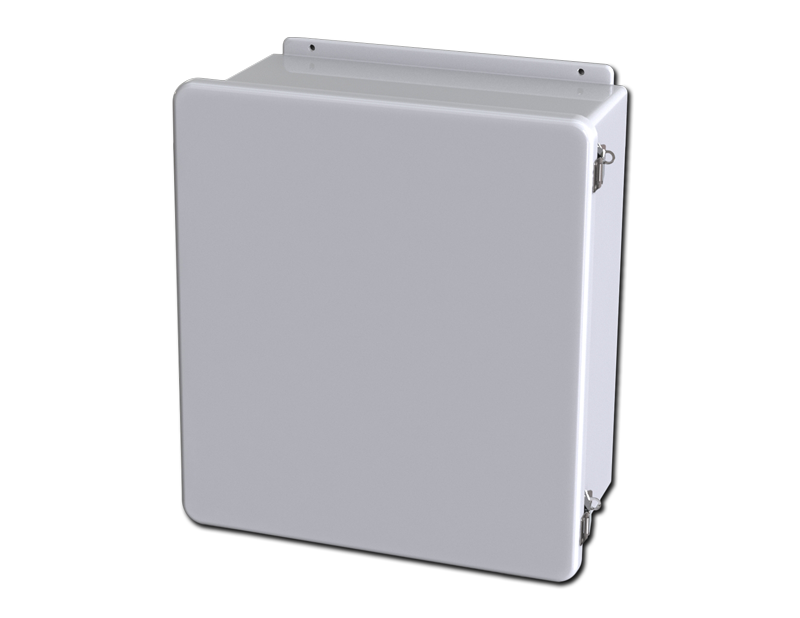

SCE-302412CHQRFG - Fiberglass Enclosure
$1,276.06
- Height
- 32.19"
- Width
- 26.19"
- Depth
- 12.29"
- Est. Ship Weight
- 50.00 lbs
Product information
Technical details
Fiberglass Enclosure
Category: Non-Metallic Enclosures > Fiberglass Enclosures > Junction Enclosures (Fiberglass)
Specifications
| Part Number | SCE-302412CHQRFG |
|---|---|
| Description | Fiberglass Enclosure |
| Height | 32.19" |
| Width | 26.19" |
| Depth | 12.29" |
| Price Code | F1 |
| List Price | $1,276.06 |
| Catalog Page | 348 |
| Est. Ship Weight | 50.00 lbs |
Construction
- Fiberglass reinforced compression molded polyester.
- Pour in place oil & water resistant gasket
- Mounting strip molded in.
- Quick release padlock latch.
- Integral panel mounting inserts.
- Stainless steel continuous hinge.
Application
Designed for indoor or outdoor use to house electrical and electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents. Provided protection from dust, dirt, oil and water. Provides protection from occasional temporary or prolonged submersion.
Finish
Light gray fiberglass. Optional sub-panels are marine grade aluminum.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
UL File E64358
